TRANSMISSION COUNTERSHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

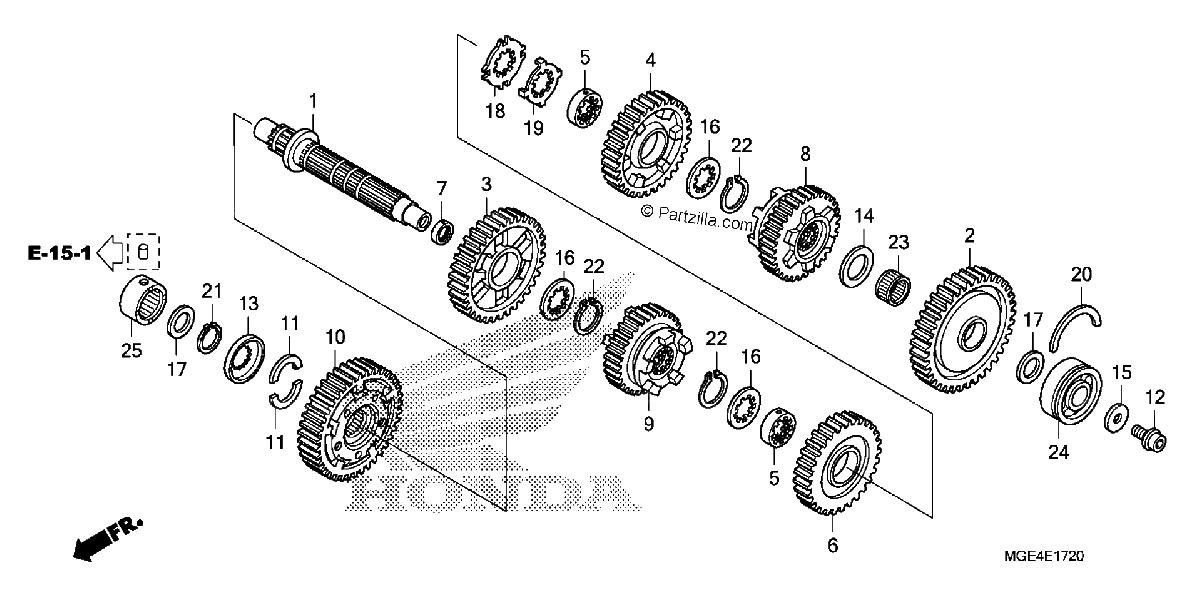

Diagrama de TRANSMISSION COUNTERSHAFT

Repuestos

#1
23221-MGE-D00
COUNTERSHAFT
$222.75¢111 375
1
#2
23421-MGE-J00
GEAR, COUNTERSHAFT FIRST (41T)
$194.00¢97 000
1
#3
23441-MGE-D50
GEAR, COUNTERSHAFT SECOND (35T)
$182.40¢91 200
1
#4
23461-MGE-D50
GEAR, COUNTERSHAFT THIRD (33T)
$185.88¢92 938
1
#5
23462-MAT-000
COLLAR, SPLINE (30X11)
$29.61¢14 806
1
#6
23481-MGE-D50
GEAR, COUNTERSHAFT FOURTH (32T)
$178.46¢89 231
1
#7
23493-MGE-D00
COLLAR (30X33X12.8)
$13.84¢6 919
1
#8
23501-MGE-D00
GEAR, COUNTERSHAFT FIFTH (32T)
$180.47¢90 238
1
#9
23521-MGE-D00
GEAR, COUNTERSHAFT SIXTH (31T)
$180.47¢90 238
1
#10
23530-MGH-D20
GEAR, FINAL DRIVE (41T)
$417.25¢208 625
1
#11
23545-MGE-000
COTTER, COUNTERSHAFT
$7.21¢3 606
1
#12
90037-ME9-000
BOLT, SPECIAL (10MM)
$9.32¢4 663
1
#13
90402-MGE-010
RETAINER, COUNTERSHAFT
$9.78¢4 888
1
#14
90407-415-000
WASHER, THRUST (26MM)
$7.25¢3 625
1
#15
90412-MGE-000
WASHER (10.5X31.8X3.2)
$4.65¢2 325
1
#16
90452-MAT-000
WASHER, SPLINE (30X36X1.5)
$4.24¢2 119
1
#17
90455-ML7-000
WASHER B, THRUST (22MM) (BLUE)
$5.90¢2 950
1
#18
90463-MAT-000
WASHER, SPLINE (30MM)
$5.88¢2 938
1
#19
90464-MAT-000
WASHER, LOCK (30MM)
$8.65¢4 325
1
#20
90601-MA6-000
RING, BEARING SETTING (56MM)
$3.65¢1 825
1
#21
90603-MN4-000
CIRCLIP (28MM)
$4.54¢2 269
1
#22
90604-MM5-000
CIRCLIP (30MM)
$5.42¢2 713
1
#23
91001-MCH-003
BEARING, NEEDLE (26X30X13)
$14.24¢7 119
1
#24
91003-MGE-003
BEARING, SPECIAL BALL (22X56X21.5)
$39.14¢19 569
1
#25
91025-MBT-F21
BEARING, NEEDLE (22X38X19.3)
$37.95¢18 975
1
