REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

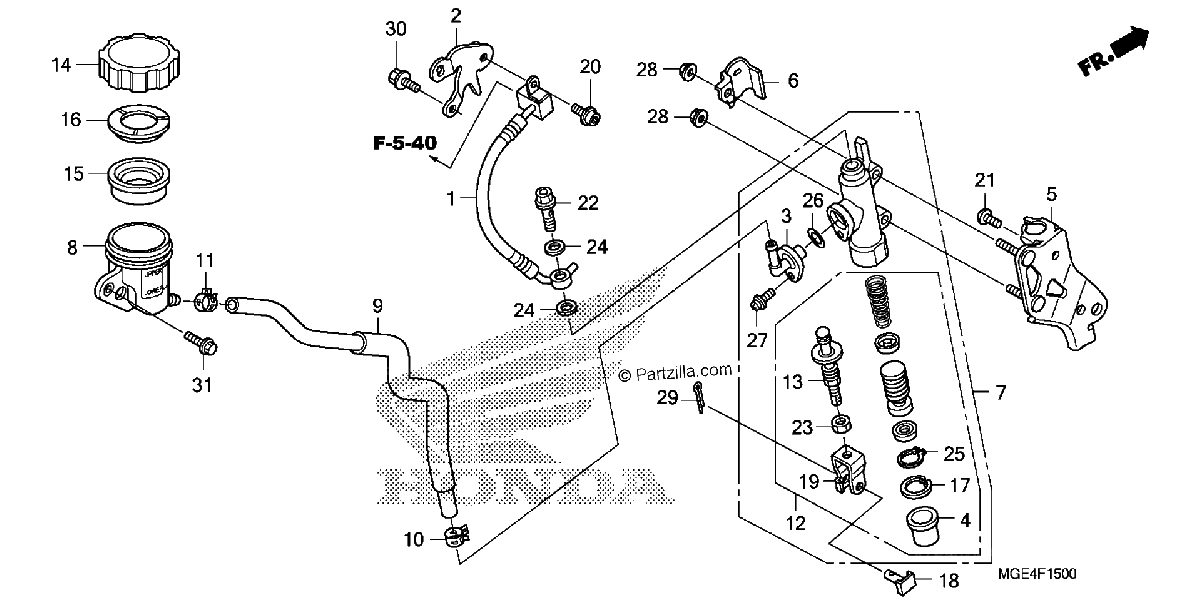

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
43310-MGE-013
HOSE A, Rear BRAKE
$61.92¢30 963
1
#2
43325-MGE-000
STAY, RR. BRAKE HOSE
$13.30¢6 650
1
#3
43503-MER-D01
CONNECTOR, MASTER CYLINDER
$9.96¢4 981
1
#4
43504-MB2-006
BOOT
$11.74¢5 869
1
#5
43505-MGE-000
STAY, Rear MASTER CYLINDER
$19.33¢9 663
1
#6
43506-MGE-000
COVER, STOP SWITCH
$11.00¢5 500
1
#7
43510-MGE-305
MASTER CYLINDER SUB-Assembly., Rear.(COO)
$276.70¢138 350
1
#8
43511-MGE-016
CUP, MASTER CYLINDER OIL
$29.00¢14 500
1
#9
43512-MGE-006
HOSE, Rear BRAKE MASTER CYLINDER
$48.08¢24 038
1
#10
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#11
43514-MN9-006
CLAMP, MASTER CYLINDER OIL HOSE
$19.68¢9 838
1
#12
43520-MGE-006
PISTON SET, Rear MASTER CYLINDER
$146.44¢73 219
1
#13
43530-MGE-006
ROD, PUSH
$35.90¢17 950
1
#14
45513-MEL-D21
CAP, OIL CUP
$21.39¢10 694
1
#15
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#16
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#17
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#18
46503-MAL-000
PIN, BRAKE ROD
$7.72¢3 863
1
#19
46504-MAL-601
JOINT, BRAKE ROD
$17.25¢8 625
1
#20
90009-MF5-000
BOLT, FLANGE SOCKET (6X12)
$4.74¢2 369
1
#21
90118-MCL-000
BOLT, SPECIAL (6X14)
$2.99¢1 494
1
#22
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#23
90301-MEH-006
NUT, HEX. (8MM)
$1.96¢981
1
#24
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#25
90651-MBG-006
CIRCLIP, PISTON
$3.66¢1 831
1
#26
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#27
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#27
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#28
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#29
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#30
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#31
96001-06016-07
BOLT, FLANGE (6X16)
$1.35¢675
1
