TRANSMISSION VFR1200FD MAINSHAFT

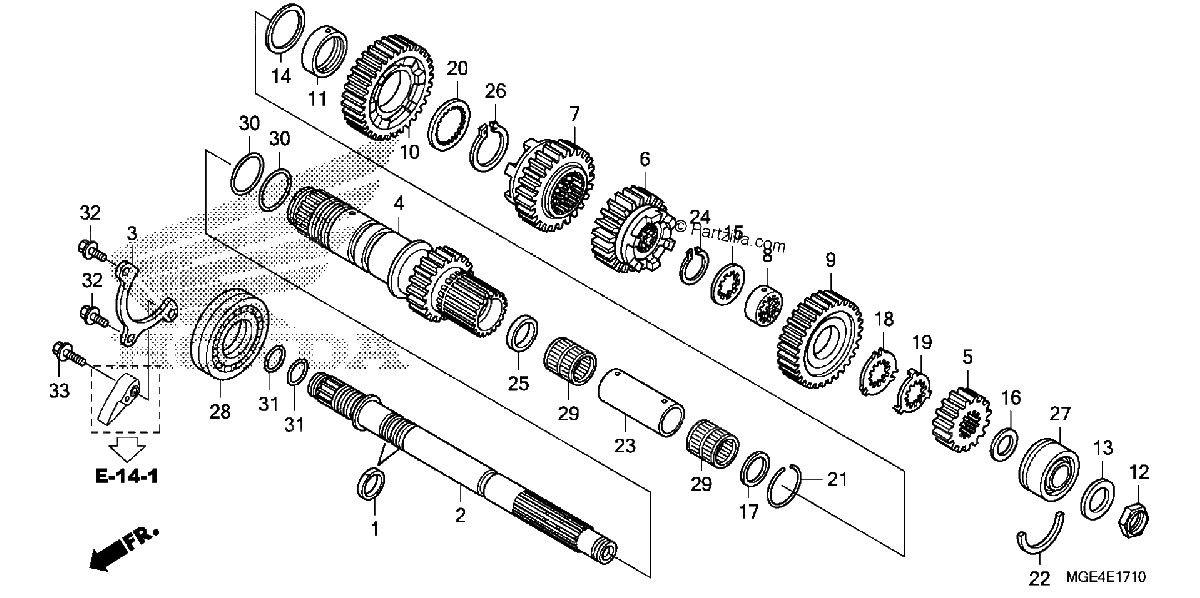

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RING, SEAL (28MM)
$4.58¢2 288
#2
MAINSHAFT (INNER)
$315.86¢157 931
#3
PLATE, BEARING SETTING
$6.60¢3 300
#4
MAINSHAFT (OUTER) (19T)
$456.19¢228 094
#5
GEAR, MAINSHAFT LOW (17T)
$92.01¢46 006
#6
GEAR, MAINSHAFT THIRD (23T)
$182.81¢91 406
#7
GEAR, MAINSHAFT FOURTH (27T)
$187.09¢93 544
#8
COLLAR, SPLINE (28X13.5)
$39.81¢19 906
#9
GEAR, MAINSHAFT FIFTH (31T)
$161.16¢80 581
#10
GEAR, MAINSHAFT SIXTH (33T)
$161.16¢80 581
#11
COLLAR (40X43X12.5)
$19.04¢9 519
#12
NUT, LOCK (22MM)
$4.59¢2 294
#13
WASHER (22X38X2.5)
$6.64¢3 319
#14
WASHER (40.2X51X1)
$15.19¢7 594
#15
WASHER, SPLINE (28X34X1.5)
$8.15¢4 075
#16
WASHER B, THRUST (22MM) (BLUE)
$5.90¢2 950
#17
WASHER (28.5X32X1.5)
$10.25¢5 125
#18
WASHER, SPLINE (28MM)
$13.61¢6 806
#19
WASHER, LOCK (28MM)
$13.61¢6 806
#20
WASHER, SPLINE (40MM)
$10.39¢5 194
#21
CLIP (33.2MM)
$6.13¢3 063
#22
SET-RING (48MM)
$7.08¢3 538
#23
COLLAR, NEEDLE BEARING
$31.39¢15 694
#24
CIRCLIP (28MM)
$4.54¢2 269
#24
CIRCLIP (28MM)
$4.54¢2 269
#25
COLLAR B, NEEDLE BEARING
$10.02¢5 012
#26
CIRCLIP (40MM)
$8.94¢4 469
#27
BEARING, SPECIAL BALL (5204S)
$30.02¢15 013
#28
BEARING SET, RADIAL BALL
$67.31¢33 656
#29
BEARING, NEEDLE (28X32X27.2) (THOMPSON)
$20.90¢10 450
#30
O-RING (35.2X1.9)
$4.55¢2 275
#31
O-RING (23.3X1.9)
$2.50¢1 250
#32
BOLT, FLANGE (6X20)
$2.27¢1 138
#33
BOLT, FLANGE (6X28)
$2.34¢1 169
