HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

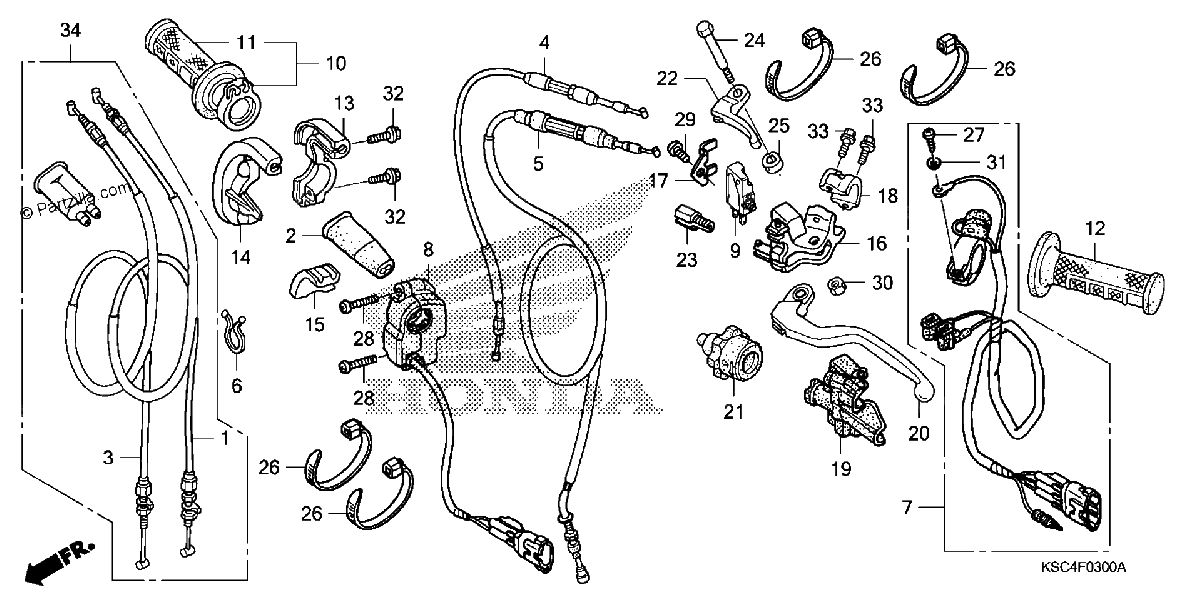

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#004
17950-KSC-010
CABLE, HOT STARTER
$21.30¢10 649
1
#4
17950-KSC-010
CABLE, HOT STARTER
$21.30¢10 649
1
#005
22870-KSC-000
CABLE, CLUTCH
$29.93¢14 967
1
#5
22870-KSC-000
CABLE, CLUTCH
$29.93¢14 967
1
#6
32171-GF9-621
LOCK, PURSE
$2.53¢1 265
1
#006
32171-GF9-621
LOCK, PURSE
$2.53¢1 265
1
#7
35130-KSC-A10
SWITCH ASSY., ENGINE STOP
$45.76¢22 879
1
#007
35130-KSC-A10
SWITCH ASSY., ENGINE STOP
$45.76¢22 879
1
#8
35150-KSC-671
SWITCH ASSY., STARTER
$57.09¢28 543
1
#008
35150-KSC-671
SWITCH ASSY., STARTER
$57.09¢28 543
1
#9
35340-HR0-305
SWITCH ASSY., FR. STOP (COO)
$19.16¢9 580
1
#009
35340-ML4-005
SWITCH ASSY., FR. STOP (OMRON)
$19.16¢9 580
1
#9
35340-ML4-005
SWITCH ASSY., FR. STOP (OMRON)
$19.16¢9 580
1
#10
53140-MEB-671
GRIP, THROTTLE
$28.38¢14 191
1
#010
53140-MEB-671
GRIP, THROTTLE
$28.38¢14 191
1
#010
53140-KSC-305
GRIP, THROTTLE (COO)
$28.38¢14 191
1
#10
53140-KSC-305
GRIP, THROTTLE (COO)
$28.38¢14 191
1
#11
53165-GBF-J60
GRIP, R. HANDLE
$11.05¢5 526
1
#011
53165-GBF-J60
GRIP, R. HANDLE
$11.05¢5 526
1
#11
53165-KPT-305
GRIP, R. HANDLE (COO)
$11.05¢5 526
1
#011
53165-KPT-305
GRIP, R. HANDLE (COO)
$11.05¢5 526
1
#012
53166-GBF-J60
GRIP, L HANDLE
$11.05¢5 526
1
#12
53166-GBF-J60
GRIP, L HANDLE
$11.05¢5 526
1
#12
53166-KPT-305
GRIP, L. HANDLE (COO)
$11.05¢5 526
1
#012
53166-KPT-305
GRIP, L. HANDLE (COO)
$11.05¢5 526
1
#13
53167-MEB-672
HOUSING, THROTTLE (UPPER)
$23.00¢11 500
1
#013
53167-MEB-672
HOUSING, THROTTLE (UPPER)
$23.00¢11 500
1
#014
53168-KSC-010
HOUSING, THROTTLE (LOWER)
$31.99¢15 997
1
#14
53168-KSC-010
HOUSING, THROTTLE (LOWER)
$31.99¢15 997
1
#015
53169-MEB-670
SLIDER, THROTTLE CABLE
$4.83¢2 415
1
#15
53169-MEB-670
SLIDER, THROTTLE CABLE
$4.83¢2 415
1
#16
53172-KSC-000
BRACKET, L. HANDLE LEVER
$37.69¢18 843
1
#016
53172-KSC-000
BRACKET, L. HANDLE LEVER
$37.69¢18 843
1
#017
53173-KSC-000
PLATE, CLUTCH SWITCH
$2.75¢1 374
1
#17
53173-KSC-000
PLATE, CLUTCH SWITCH
$2.75¢1 374
1
#018
53174-KCE-670
HOLDER, L. LEVER BRACKET
$14.37¢7 187
1
#18
53174-KCE-670
HOLDER, L. LEVER BRACKET
$14.37¢7 187
1
#019
53177-KSC-000
COVER, L. HANDLE LEVER
$19.91¢9 953
1
#19
53177-KSC-000
COVER, L. HANDLE LEVER
$19.91¢9 953
1
#020
53178-KSC-000
LEVER, L. HANDLEBAR
$35.51¢17 756
1
#20
53178-KSC-000
LEVER, L. HANDLEBAR
$35.51¢17 756
1
#20
53178-KSC-305
LEVER, L. HANDLEBAR (COO)
$35.51¢17 756
1
#020
53178-KSC-305
LEVER, L. HANDLEBAR (COO)
$35.51¢17 756
1
#21
53179-MEN-671
DIAL, CLUTCH CABLE ADJUSTING
$12.03¢6 015
1
#021
53179-MEN-671
DIAL, CLUTCH CABLE ADJUSTING
$12.03¢6 015
1
#022
53190-MEN-670
LEVER, HOT STARTER
$18.11¢9 056
1
#22
53190-MEN-670
LEVER, HOT STARTER
$18.11¢9 056
1
#23
53192-MEN-670
BOLT, WIRE ADJUSTING
$8.83¢4 416
1
#023
53192-MEN-670
BOLT, WIRE ADJUSTING
$8.83¢4 416
1
#24
90113-MEY-A10
BOLT, HANDLE LEVER PIVOT
$5.04¢2 519
1
#024
90113-MEY-A10
BOLT, HANDLE LEVER PIVOT
$5.04¢2 519
1
#025
90501-MEN-670
COLLAR, PIVOT
$3.36¢1 679
1
#25
90501-MEN-670
COLLAR, PIVOT
$3.36¢1 679
1
#026
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#26
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#027
93500-04012-0A
SCREW, PAN (4X12)
$0.98¢489
1
#27
93500-04012-0A
SCREW, PAN (4X12)
$0.98¢489
1
#27
93500-04012-1A
SCREW, PAN (4X12)
$0.98¢489
1
#027
93500-04012-1A
SCREW, PAN (4X12)
$0.98¢489
1
#28
93500-04014-0G
SCREW, PAN (4X14)
$0.86¢431
1
#028
93500-04014-0G
SCREW, PAN (4X14)
$0.86¢431
1
#029
93500-05010-0A
SCREW, PAN (5X10)
$1.07¢535
1
#29
93500-05010-0A
SCREW, PAN (5X10)
$1.07¢535
1
#030
90301-782-000
NUT, U (6MM)
$1.83¢914
1
#30
90301-782-000
NUT, U (6MM)
$1.83¢914
1
#031
94111-04000
WASHER, SPRING (4MM)
$1.26¢633
1
#31
94111-04000
WASHER, SPRING (4MM)
$1.26¢633
1
#032
96001-06020-07
BOLT, FLANGE (6X20)
$1.60¢799
1
#32
96001-06020-07
BOLT, FLANGE (6X20)
$1.60¢799
1
#033
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#33
96001-06022-00
BOLT, FLANGE (6X22)
$1.47¢736
1
#34
17900-KSC-A10
CABLE Assembly., THROTTLE
$56.14¢28 071
1
#034
17900-KSC-A10
CABLE Assembly., THROTTLE
$56.14¢28 071
1
