REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

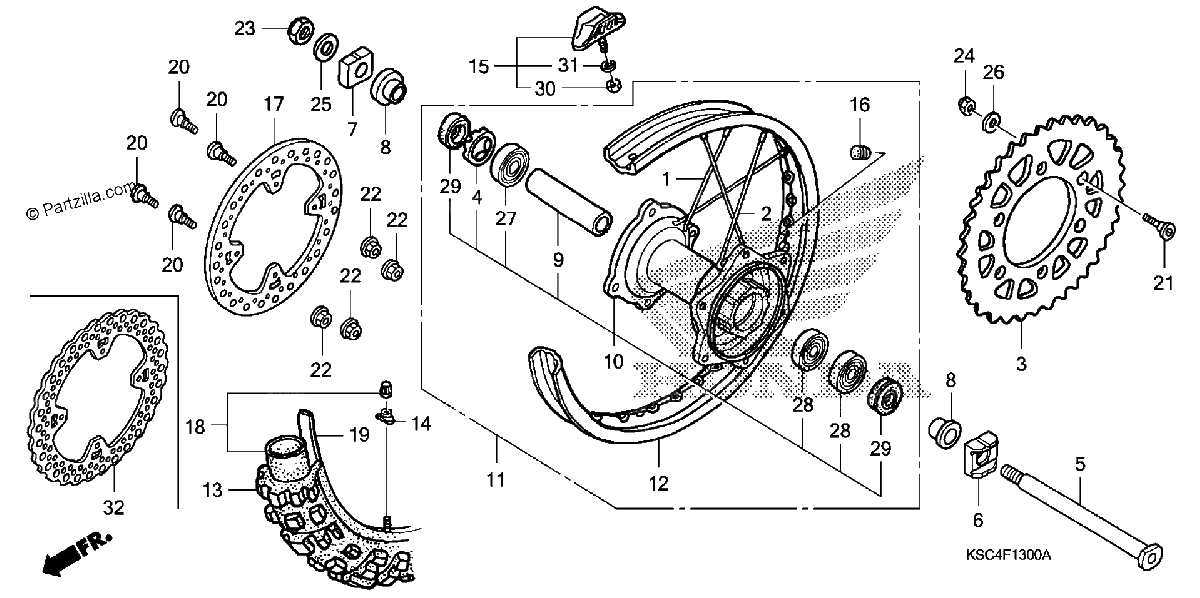

Diagrama de REAR WHEEL

Repuestos

#001
06420-MEY-000
SPOKE SET, RR.
$5.90¢2 950
1
#1
06420-MEY-000
SPOKE SET, RR.
$5.90¢2 950
1
#2
06421-MEY-000
SPOKE SET, RR.
$5.90¢2 950
1
#002
06421-MEY-000
SPOKE SET, RR.
$5.90¢2 950
1
#3
41201-KSR-J00
SPROCKET, FINAL DRIVEN (54T)
$151.79¢75 894
1
#003
41201-KSR-J00
SPROCKET, FINAL DRIVEN (54T)
$151.79¢75 894
1
#003
41203-KZ4-J30
SPROCKET, FINAL DRIVEN (52T)
$154.32¢77 163
1
#3
41203-KZ4-J30
SPROCKET, FINAL DRIVEN (52T)
$154.32¢77 163
1
#3
41204-KZ4-J30
SPROCKET, FINAL DRIVEN (53T)
$179.77¢89 887
1
#003
41204-KZ4-J30
SPROCKET, FINAL DRIVEN (53T)
$179.77¢89 887
1
#4
41231-KZ4-J20
RETAINER, RR. WHEEL BEARING
$22.38¢11 188
1
#004
41231-KZ4-J20
RETAINER, RR. WHEEL BEARING
$22.38¢11 188
1
#5
42301-KZ4-J40
AXLE, RR. WHEEL
$60.96¢30 481
1
#005
42301-KZ4-J40
AXLE, RR. WHEEL
$60.96¢30 481
1
#006
42305-KZ4-J40
COLLAR, L. RR. AXLE
$19.69¢9 844
1
#6
42305-KZ4-J40
COLLAR, L. RR. AXLE
$19.69¢9 844
1
#007
42306-KZ4-J20
COLLAR, R. RR. AXLE
$22.38¢11 188
1
#7
42306-KZ4-J20
COLLAR, R. RR. AXLE
$22.38¢11 188
1
#008
42311-KZ4-J40
COLLAR, RR. WHEEL SIDE
$24.80¢12 400
1
#8
42311-KZ4-J40
COLLAR, RR. WHEEL SIDE
$24.80¢12 400
1
#9
42620-KZ4-J20
COLLAR, RR. WHEEL DISTANCE
$32.44¢16 219
1
#009
42620-KZ4-J20
COLLAR, RR. WHEEL DISTANCE
$32.44¢16 219
1
#010
42635-KRN-710
HUB SUB-ASSY., RR.
$419.13¢209 563
1
#10
42635-KRN-710
HUB SUB-ASSY., RR.
$419.13¢209 563
1
#011
42650-KSC-A20
WHEEL SUB-ASSY., RR.
$892.70¢446 350
1
#11
42650-KSC-A20
WHEEL SUB-ASSY., RR.
$892.70¢446 350
1
#012
42701-KSC-A21
RIM, RR. WHEEL (18X2.15)
$331.51¢165 756
1
#12
42701-KSC-A21
RIM, RR. WHEEL (18X2.15)
$331.51¢165 756
1
#13
42711-KSC-004
TIRE, Rear. (100/100-18) (59M D756) (DUNLOP) (NOT AVAILABLE)
No Disponible
1
#013
42711-KSC-004
TIRE, Rear. (100/100-18) (59M D756) (DUNLOP) (NOT AVAILABLE)
No Disponible
1
#14
42714-KA3-710
CAP, VALVE
$12.15¢6 075
1
#014
42714-KA3-710
CAP, VALVE
$12.15¢6 075
1
#015
42715-MA0-770
STOPPER, BEAD (2.15)
$43.98¢21 988
1
#15
42715-MA0-770
STOPPER, BEAD (2.15)
$43.98¢21 988
1
#016
42717-329-000
CAP, RIM HOLE
$5.09¢2 544
1
#16
42717-329-000
CAP, RIM HOLE
$5.09¢2 544
1
#18
44712-300-004
TUBE, TIRE (100/100-19) (DUNLOP)
$84.24¢42 119
1
#018
44712-300-004
TUBE, TIRE (100/100-19) (DUNLOP)
$84.24¢42 119
1
#019
42713-KZ3-611
FLAP, TIRE (DUNLOP)
$7.16¢3 581
1
#019
44713-300-004
FLAP, TIRE (DUNLOP)
$7.16¢3 581
1
#19
44713-300-004
FLAP, TIRE (DUNLOP)
$7.16¢3 581
1
#020
90105-MAC-680
BOLT, DISK (6X19)
$6.05¢3 025
1
#20
90105-MAC-680
BOLT, DISK (6X19)
$6.05¢3 025
1
#021
90125-KA4-000
SCREW, FLAT (8X31)
$3.74¢1 869
1
#21
90125-KA4-000
SCREW, FLAT (8X31)
$3.74¢1 869
1
#022
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#22
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#23
90305-KZ4-J20
NUT, U (22MM)
$10.48¢5 238
1
#023
90305-KZ4-J20
NUT, U (22MM)
$10.48¢5 238
1
#24
90309-ML3-791
NUT, U (8MM) (FUSE RASHI)
$5.29¢2 644
1
#024
90309-ML3-791
NUT, U (8MM) (FUSE RASHI)
$5.29¢2 644
1
#25
90401-KZ4-J20
WASHER (22X35X2)
$3.65¢1 825
1
#025
90401-KZ4-J20
WASHER (22X35X2)
$3.65¢1 825
1
#26
90465-MC4-000
WASHER (8MM)
$3.24¢1 619
1
#026
90465-MC4-000
WASHER (8MM)
$3.24¢1 619
1
#027
91051-KZ4-J21
BEARING, RADIAL BALL (69052RS)
$21.39¢10 694
1
#27
91051-KZ4-J21
BEARING, RADIAL BALL (69052RS)
$21.39¢10 694
1
#028
91052-KZ4-J21
BEARING, RADIAL BALL (6905RS)
$20.15¢10 075
1
#28
91052-KZ4-J21
BEARING, RADIAL BALL (6905RS)
$20.15¢10 075
1
#29
91251-KZ4-J21
DUST SEAL (32X43X7)
$5.99¢2 994
1
#029
91251-KZ4-J21
DUST SEAL (32X43X7)
$5.99¢2 994
1
#30
94001-08000-0S
NUT, HEX. (8MM)
$1.68¢838
1
#030
94001-08000-0S
NUT, HEX. (8MM)
$1.68¢838
1
#031
94111-08000
WASHER, SPRING (8MM)
$1.21¢606
1
#31
94111-08000
WASHER, SPRING (8MM)
$1.21¢606
1
#032
43351-MEN-A10
DISK, RR. BRAKE
$258.61¢129 306
1
#32
43351-MEN-A10
DISK, RR. BRAKE
$258.61¢129 306
1
