CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

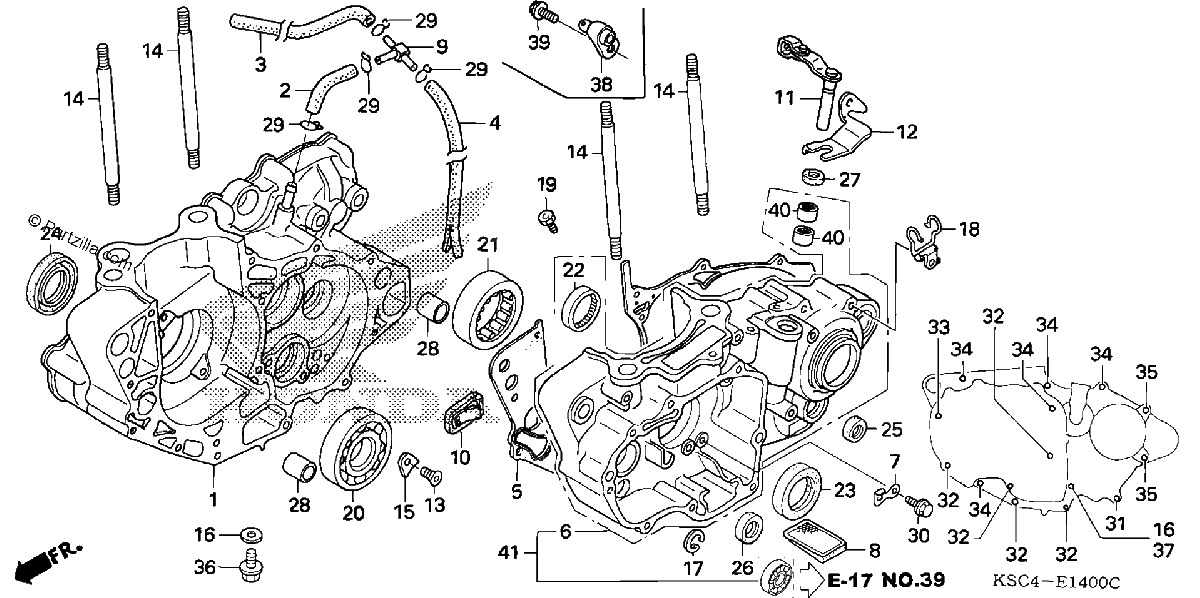

Diagrama de CRANKCASE

Repuestos

#1
11100-KSC-A20
CRANKCASE, Right.
$437.27¢218 638
1
#001
11100-KSC-A20
CRANKCASE, Right.
$437.27¢218 638
1
#002
11105-KSC-670
TUBE A, BREATHER
$3.98¢1 988
1
#2
11105-KSC-670
TUBE A, BREATHER
$3.98¢1 988
1
#003
11107-KSC-670
TUBE B, BREATHER
$13.04¢6 519
1
#3
11107-KSC-670
TUBE B, BREATHER
$13.04¢6 519
1
#4
11108-KSC-670
TUBE C, BREATHER
$11.38¢5 688
1
#004
11108-KSC-670
TUBE C, BREATHER
$11.38¢5 688
1
#005
11191-KRN-A11
GASKET, CRANKCASE
$24.44¢12 219
1
#005
11191-KRN-A12
GASKET, CRANKCASE
$24.44¢12 219
1
#5
11191-KRN-A10
GASKET, CRANKCASE
$24.44¢12 219
1
#5
11191-KRN-A11
GASKET, CRANKCASE
$24.44¢12 219
1
#005
11191-KRN-A10
GASKET, CRANKCASE
$24.44¢12 219
1
#6
11200-KSC-A20
CRANKCASE, Left
$557.75¢278 875
1
#006
11200-KSC-A20
CRANKCASE, Left
$557.75¢278 875
1
#007
11206-KRN-670
PLATE, CAM CHAIN GUIDE
$4.17¢2 088
1
#7
11206-KRN-670
PLATE, CAM CHAIN GUIDE
$4.17¢2 088
1
#008
15421-KK0-000
SCREEN, OIL FILTER
$9.35¢4 675
1
#8
15421-KK0-000
SCREEN, OIL FILTER
$9.35¢4 675
1
#009
16961-MCT-010
JOINT, THREE WAY
$15.84¢7 919
1
#9
16961-MCT-010
JOINT, THREE WAY
$15.84¢7 919
1
#10
18601-MBW-003
VALVE, REED
$19.93¢9 963
1
#010
18601-MBW-003
VALVE, REED
$19.93¢9 963
1
#11
22810-KSC-A10
LEVER, CLUTCH LIFTER
$69.61¢34 806
1
#011
22810-KSC-A10
LEVER, CLUTCH LIFTER
$69.61¢34 806
1
#13
90001-MEN-850
SCREW, SPECIAL FLAT (6X17)
$2.31¢1 156
1
#013
90001-MEN-850
SCREW, SPECIAL FLAT (6X17)
$2.31¢1 156
1
#014
90031-KRN-670
BOLT, STUD (10X135)
$6.65¢3 325
1
#14
90031-KRN-670
BOLT, STUD (10X135)
$6.65¢3 325
1
#15
90441-KRN-670
PLATE, BEARING HOLDER
$3.65¢1 825
1
#015
90441-KRN-670
PLATE, BEARING HOLDER
$3.65¢1 825
1
#16
90474-333-000
WASHER, SEALING (8MM)
$4.01¢2 006
1
#016
90474-333-000
WASHER, SEALING (8MM)
$4.01¢2 006
1
#017
90604-MEB-670
CIRCLIP, SPECIAL (33MM)
$5.34¢2 669
1
#17
90604-MEB-670
CIRCLIP, SPECIAL (33MM)
$5.34¢2 669
1
#18
90610-MEB-670
GUIDE, TUBE
$16.56¢8 281
1
#018
90610-MEB-670
GUIDE, TUBE
$16.56¢8 281
1
#019
90901-KSC-A20
ORIFICE (#170)
$13.15¢6 575
1
#19
90901-KSC-A20
ORIFICE (#170)
$13.15¢6 575
1
#20
91001-KRN-671
BEARING, RADIAL BALL (30X72X16)
$26.58¢13 288
1
#020
91001-KRN-671
BEARING, RADIAL BALL (30X72X16)
$26.58¢13 288
1
#021
91002-KRN-A11
BEARING, SPECIAL ROLLER
$55.88¢27 938
1
#21
91002-KRN-A11
BEARING, SPECIAL ROLLER
$55.88¢27 938
1
#22
91022-KA4-740
BEARING, SHELL (33X38X8) (NTN)
$20.74¢10 369
1
#022
91022-KA4-740
BEARING, SHELL (33X38X8) (NTN)
$20.74¢10 369
1
#23
91201-MEB-671
OIL SEAL (38X52X7) (ARAI)
$15.39¢7 694
1
#023
91201-MEB-671
OIL SEAL (38X52X7) (ARAI)
$15.39¢7 694
1
#024
91202-MEY-671
OIL SEAL (39X56X7.5) (ARAI)
$16.99¢8 494
1
#24
91202-MEY-671
OIL SEAL (39X56X7.5) (ARAI)
$16.99¢8 494
1
#025
91203-KA4-771
OIL SEAL (14X22X5) (NOK)
$4.63¢2 313
1
#25
91203-KA4-771
OIL SEAL (14X22X5) (NOK)
$4.63¢2 313
1
#026
91203-MEB-671
OIL SEAL (20X33X5) (ARAI)
$5.94¢2 969
1
#26
91203-MEB-671
OIL SEAL (20X33X5) (ARAI)
$5.94¢2 969
1
#027
91205-MEB-671
OIL SEAL (12X18X3) (ARAI)
$4.19¢2 094
1
#27
91205-MEB-671
OIL SEAL (12X18X3) (ARAI)
$4.19¢2 094
1
#28
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#028
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
#29
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#029
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#30
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#030
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#031
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#31
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#32
96001-06045-00
BOLT, FLANGE (6X45)
$2.52¢1 263
1
#032
96001-06045-00
BOLT, FLANGE (6X45)
$2.52¢1 263
1
#033
96001-06060-00
BOLT, FLANGE (6X60)
$2.79¢1 394
1
#33
96001-06060-00
BOLT, FLANGE (6X60)
$2.79¢1 394
1
#34
96001-06070-00
BOLT, FLANGE (6X70)
$2.52¢1 263
1
#034
96001-06070-00
BOLT, FLANGE (6X70)
$2.52¢1 263
1
#35
96001-06075-00
BOLT, FLANGE (6X75)
$2.88¢1 438
1
#035
96001-06075-00
BOLT, FLANGE (6X75)
$2.88¢1 438
1
#036
96300-08025-00
BOLT, FLANGE (8X25)
$2.09¢1 044
1
#36
96300-08025-00
BOLT, FLANGE (8X25)
$2.09¢1 044
1
#037
96300-08070-00
BOLT, FLANGE (8X70)
$2.64¢1 319
1
#37
96300-08070-00
BOLT, FLANGE (8X70)
$2.64¢1 319
1
#38
11210-KRN-730
JET, PISTON (#80)
$24.01¢12 006
1
#038
11210-KRN-730
JET, PISTON (#80)
$24.01¢12 006
1
#039
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#39
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#40
91101-PZ9-000
BEARING, NEEDLE (12X16X10)
$10.15¢5 075
1
#040
91101-PZ9-000
BEARING, NEEDLE (12X16X10)
$10.15¢5 075
1
#40
91053-719-005
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
1
#040
91053-719-005
BEARING, NEEDLE (12X16X10) (NTN)
No Disponible
1
