TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

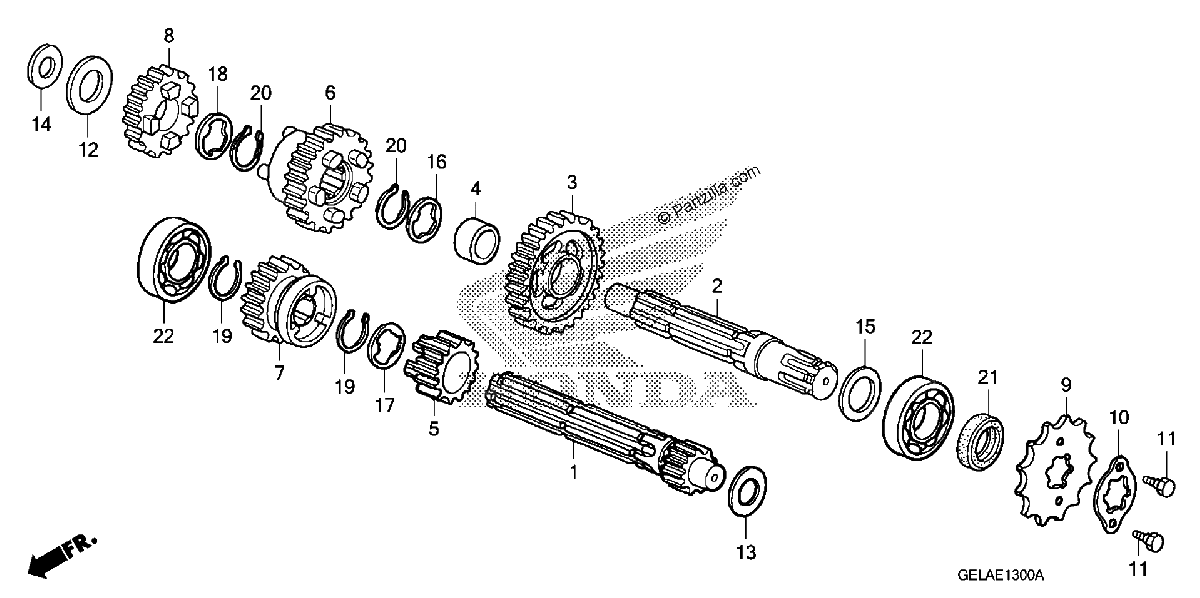

Diagrama de TRANSMISSION

Repuestos

#1
23211-GCF-A20
MAINSHAFT, TRANSMISSION (11T)
$76.68¢38 338
1
#2
23221-GCF-A20
COUNTERSHAFT
$91.93¢45 963
1
#3
23421-GCF-A20
GEAR, COUNTERSHAFT LOW (36T)
$55.54¢27 769
1
#4
23422-GB6-910
BUSH (20X10)
$21.92¢10 962
1
#5
23431-GCF-A20
GEAR, MAINSHAFT SECOND (15T)
$48.59¢24 294
1
#6
23441-GCF-A20
GEAR, COUNTERSHAFT SECOND (25T)
$78.78¢39 388
1
#7
23471-GCF-A20
GEAR, MAINSHAFT THIRD (21T)
$65.33¢32 663
1
#8
23481-GCF-A20
GEAR, COUNTERSHAFT THIRD (25T)
$58.52¢29 263
1
#9
23800-GEL-700
SPROCKET, DRIVE (14T)
$23.34¢11 669
1
#10
23802-GC4-601
PLATE, DRIVE SPROCKET FIXING
$6.32¢3 162
1
#11
90084-041-000
BOLT, DRIVE SPROCKET FIXING
$5.59¢2 794
1
#12
90409-ML4-610
WASHER B, THRUST (30X1.7)
$5.90¢2 950
1
#13
90451-121-000
WASHER, THRUST (14MM)
$2.40¢1 200
1
#14
90451-141-000
WASHER, THRUST (13.5MM)
$14.59¢7 294
1
#15
90452-GB4-770
WASHER, THRUST (17MM)
$2.64¢1 319
1
#16
90461-GB4-770
WASHER, SPLINE (20X1.2)
$4.36¢2 181
1
#17
90461-035-000
WASHER, SPLINE (17MM)
$3.33¢1 663
1
#18
90461-459-010
WASHER, SPLINE (20MM)
$7.13¢3 563
1
#19
90601-001-000
CIRCLIP, OUTER (17MM)
$1.86¢931
1
#20
90601-459-000
CIRCLIP (20MM)
$3.65¢1 825
1
#21
91203-GB5-761
OIL SEAL (17X29X5) (NOK)
$8.47¢4 238
1
#21
91203-GBG-900
OIL SEAL (17X29X5) (NOK)
$8.47¢4 238
1
#22
96100-62030-00
BEARING, RADIAL BALL (6203)
$10.19¢5 094
1
