FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

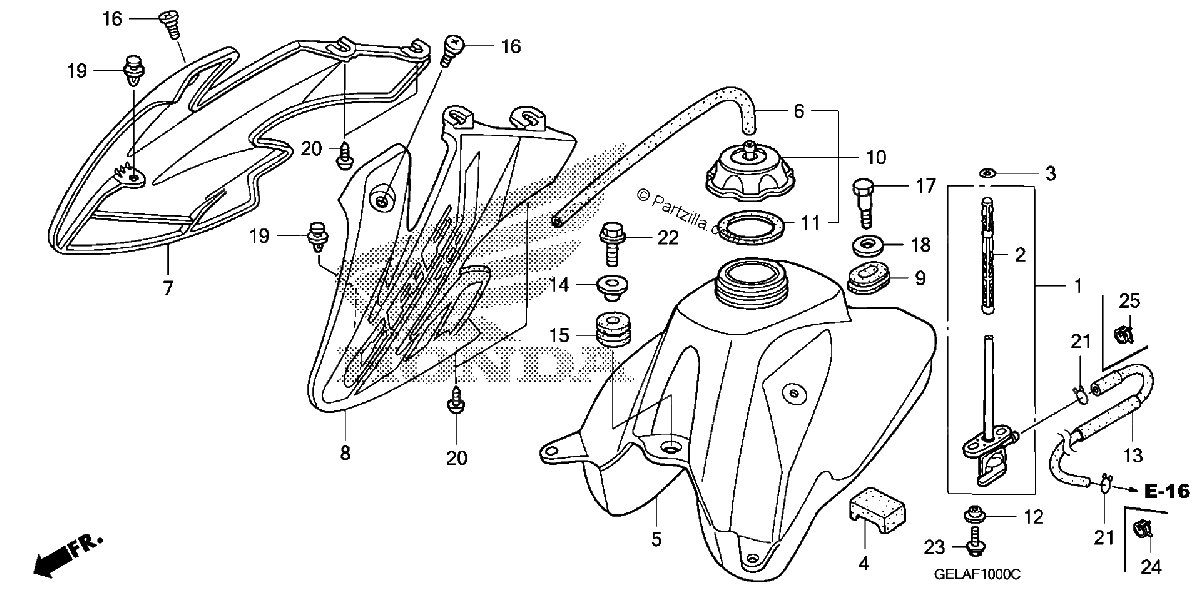

Diagrama de FUEL TANK

Repuestos

#1
16950-GEL-701
PETCOCK ASSY.
$71.05¢35 525
1
#2
16952-GEL-701
SCREEN SET, FUEL STRAINER
$24.88¢12 438
1
#3
16997-467-000
O-RING (11.8X3.55)
$2.85¢1 425
1
#4
17504-GEL-700
RUBBER, TANK MOUNTING
$17.63¢8 813
1
#5
17510-GEL-A40
TANK, FUEL
$318.94¢159 469
1
#6
17521-429-000
TUBE, FUEL CAP BREATHER
$8.45¢4 225
1
#7
17545-GEL-A70ZA
SHROUD SET, R. TANK (TYPE1) (WL)
No Disponible
1
#8
17555-GEL-A70ZA
SHROUD SET, L. TANK (TYPE1) (WL)
No Disponible
1
#9
17613-GF8-000
CUSHION, RR. FUEL TANK
$4.69¢2 344
1
#10
17620-GEL-770
CAP ASSY., FUEL TANK
$36.51¢18 256
1
#11
17624-GEL-770
GASKET, FUEL CAP
$5.56¢2 781
1
#12
17626-467-000
COLLAR, FUEL TANK SETTING
$5.79¢2 894
1
#13
17681-GEL-A40
TUBE, FUEL
$20.89¢10 444
1
#14
80101-KB7-600
COLLAR (8X12)
$7.16¢3 581
1
#15
80103-MG2-000
CUSHION, RR. FENDER
$3.69¢1 844
1
#16
90104-KZ3-B00
SCREW, SPECIAL (5MM)
$4.74¢2 369
1
#17
90138-357-010
BOLT (8X17)
$16.59¢8 294
1
#18
90476-703-000
WASHER
$1.25¢625
1
#19
90653-HC4-900
CLIP, SPLASH GUARD
$0.76¢381
1
#20
93903-25320
SCREW, TAPPING (5X16)
$1.16¢581
1
#22
95701-08025-00
BOLT, FLANGE (8X25)
$2.30¢1 150
1
#23
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#24
90652-KSJ-A21
CLAMP, TUBE (8.0)
$1.86¢931
1
#25
90653-KSJ-A20
CLAMP, TUBE (8.5)
$1.86¢931
1
