CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

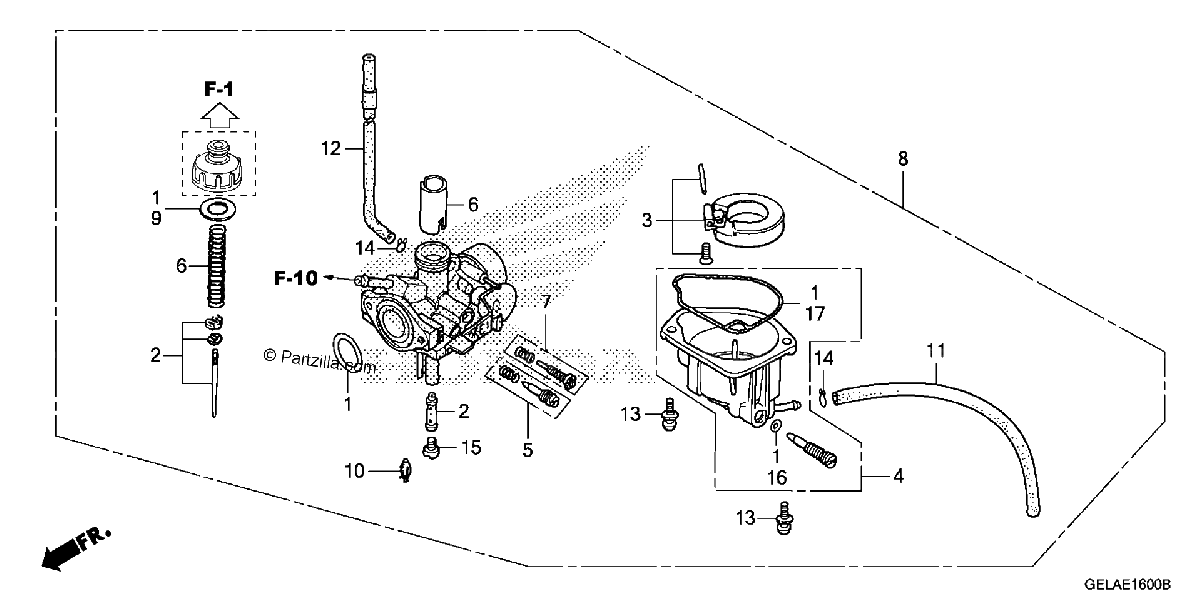

Diagrama de CARBURETOR

Repuestos

#1
16010-181-305
GASKET SET
$21.99¢10 994
1
#1
16010-181-831
GASKET SET
$21.99¢10 994
1
#2
16012-GEL-A21
NEEDLE SET, JET
$26.46¢13 231
1
#3
16013-147-004
FLOAT SET
$47.68¢23 839
1
#4
16015-099-691
CHAMBER SET, FLOAT
$113.62¢56 810
1
#5
16016-GEL-A21
SCREW SET
$14.54¢7 268
1
#6
16022-GW8-672
VALVE SET, THROTTLE
$40.86¢20 430
1
#7
16028-GC8-004
SCREW SET B
$17.47¢8 734
1
#8
16100-GEL-A42
CARBURETOR ASSY. (PA42C A)
$185.58¢92 788
1
#8
16100-GEL-A41
CARBURETOR ASSY. (PA42C A)
$185.58¢92 788
1
#9
16110-181-831
GASKET, TOP
$5.83¢2 915
1
#10
16155-883-005
VALVE, FLOAT
$21.47¢10 735
1
#11
16198-GEL-701
TUBE
$5.28¢2 639
1
#12
16199-GEL-701
TUBE, AIR VENT
$5.88¢2 938
1
#13
93892-04012-08
SCREW-WASHER (4X12)
$0.76¢380
1
#13
93892-04012-18
SCREW-WASHER (4X12)
$0.76¢380
1
#14
95002-02659
CLIP, TUBE (B6.5)
$1.30¢650
1
#15
99101-187-0580
JET, MAIN (#58)
$9.02¢4 508
1
#16
16076-ND5-004
O-RING (1.3X4.3)
$2.94¢1 472
1
#17
16163-165-B10
GASKET, FLOAT CHAMBER
$19.25¢9 625
1
