RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

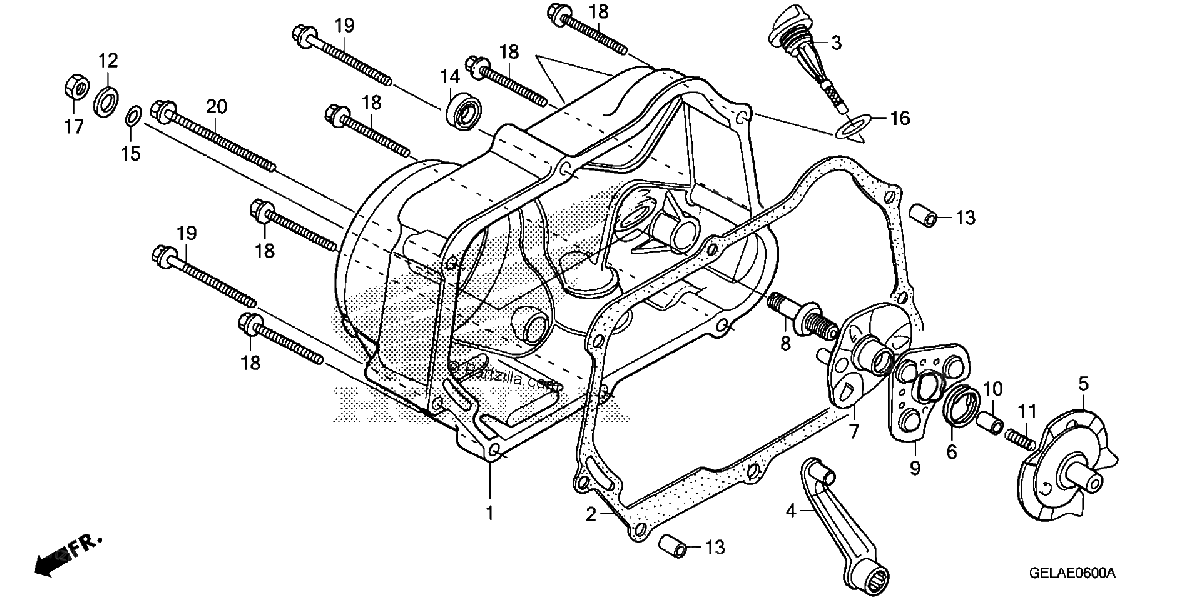

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#1
11330-GAN-770
COVER, R. CRANKCASE
$186.57¢93 288
1
#2
11394-GW8-681
GASKET, R. CRANKCASE COVER
$15.75¢7 875
1
#3
15651-179-701
DIPSTICK, OIL
$12.71¢6 356
1
#4
22811-040-020
LEVER, CLUTCH
$41.64¢20 819
1
#5
22820-918-020
PLATE, CLUTCH CAM
$20.46¢10 231
1
#6
22825-046-000
SPRING, CAM PLATE SIDE
$2.81¢1 406
1
#7
22830-041-000
PLATE, CLUTCH LIFTER
$13.73¢6 863
1
#8
22846-040-010
BOLT, CLUTCH ADJUSTING
$7.64¢3 819
1
#9
22860-046-000
RETAINER, CLUTCH BALL
$8.54¢4 269
1
#10
25551-918-007
THROUGH, OIL
$7.09¢3 544
1
#11
25555-065-000
SPRING, OIL THROUGH
$2.19¢1 094
1
#12
90485-040-000
WASHER (8MM)
$2.27¢1 138
1
#13
90702-KFM-900
PIN, DOWEL (8X12)
$0.86¢431
1
#14
91202-302-010
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#14
91202-KFL-841
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#14
91205-HB2-771
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#14
91205-HB2-772
OIL SEAL (13.8X24X5)
$6.11¢3 056
1
#15
91303-001-000
O-RING (8MM)
$2.44¢1 219
1
#15
91303-001-010
O-RING (8MM)
$3.11¢1 556
1
#15
91306-HB3-003
O-RING (8X1.7) (ARAI)
$2.44¢1 219
1
#16
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#17
94030-08000
NUT, HEX. (8MM)
$1.38¢688
1
#18
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#19
96001-06065-00
BOLT, FLANGE (6X65)
$3.01¢1 506
1
#20
96001-06080-00
BOLT, FLANGE (6X80)
$2.85¢1 425
1
