SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

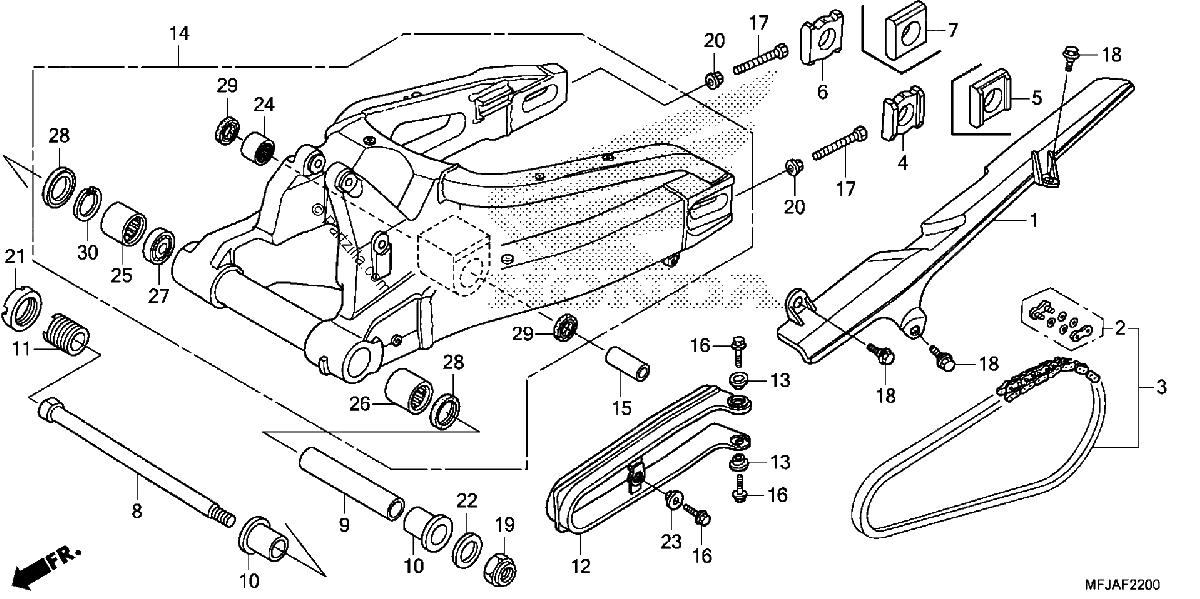

Diagrama de SWINGARM

Repuestos

#1
40510-MEE-010
CASE, DRIVE CHAIN
$58.17¢29 088
1
#2
40535-MAL-G01
MASTER LINK SET (DAIDO)
$10.29¢5 144
1
#2
40541-MFJ-D02
MASTER LINK SET (RK EXCEL)
$16.85¢8 425
1
#3
40540-MAL-G01
CHAIN, DRIVE (DID525HV-120ZB) (DAIDO)
$307.81¢153 906
1
#3
40540-MFJ-D02
CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL)
$294.88¢147 438
1
#4
42305-MEE-D00
COLLAR, L. RR. AXLE
$43.10¢21 550
1
#6
42306-MEE-D00
COLLAR, R. RR. AXLE
$30.07¢15 038
1
#8
52101-MFJ-D00
BOLT, SWINGARM PIVOT
$70.03¢35 013
1
#9
52102-MFJ-D00
COLLAR, SWINGARM PIVOT
$25.07¢12 538
1
#10
52106-MR7-000
COLLAR B, PIVOT
$46.95¢23 475
1
#11
52108-MFJ-D00
BOLT, R. PIVOT ADJUSTING
$30.55¢15 275
1
#12
52170-MFJ-D00
SLIDER, CHAIN
$47.05¢23 525
1
#13
52171-MFJ-D00
WASHER, CHAIN SLIDER
$2.85¢1 425
1
#14
52200-MFJ-J30
SWINGARM SUB-ASSY., RR.
$1497.24¢748 619
1
#15
52463-MAL-G00
COLLAR, CUSHION CONNECTING ROD
$13.66¢6 831
1
#16
90105-MY9-000
BOLT, FLANGE (6X18)
$3.65¢1 825
1
#17
90106-MCF-D00
BOLT, HEX. (8X50)
$3.11¢1 556
1
#18
90113-MAS-E00
BOLT, FLANGE (6MM)
$3.36¢1 681
1
#19
90306-MCS-G00
NUT, U (18MM)
$8.64¢4 319
1
#20
90309-357-000
NUT, HEX. (8MM)
$4.13¢2 063
1
#21
90355-MFJ-D00
NUT, SWINGARM PIVOT
$20.31¢10 156
1
#22
90401-KZ4-890
WASHER (18X32X2)
$5.42¢2 713
1
#23
90485-MB2-000
WASHER (6MM)
$2.59¢1 294
1
#24
91071-KV3-005
BEARING, NEEDLE (KOYO)
$28.90¢14 450
1
#25
91071-MBW-E11
BEARING, NEEDLE
$19.98¢9 988
1
#26
91071-MR7-003
BEARING, NEEDLE
$29.82¢14 913
1
#27
91072-MR7-003
BEARING, RADIAL BALL (20X37X9)
$21.06¢10 531
1
#28
91202-MR7-003
DUST SEAL (28X37X4)
$7.70¢3 850
1
#29
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
1
#30
94520-37000
CIRCLIP, INNER (37MM)
$2.81¢1 406
1
