RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

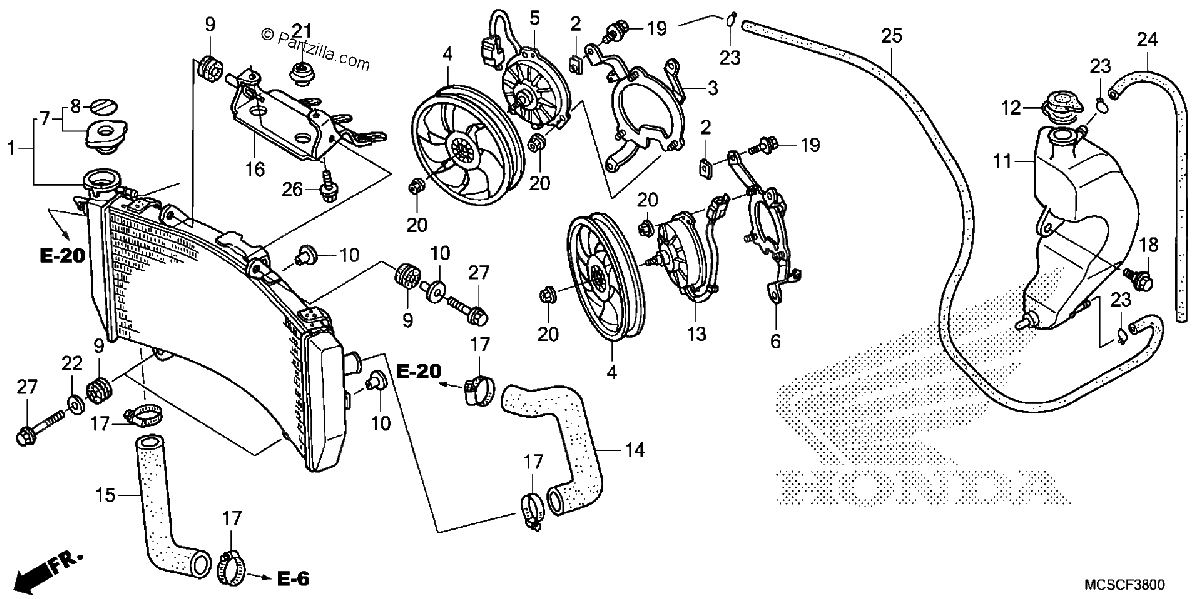

Diagrama de RADIATOR

Repuestos

#1
19010-MCS-305
RADIATOR (COO)
$926.39¢463 194
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#3
19015-MCS-305
SHROUD, R. (COO)
$91.38¢45 688
1
#4
19020-MEA-671
FAN, COOLING
$50.51¢25 256
1
#5
19030-MCS-D91
MOTOR ASSY., R. FAN
$371.19¢185 594
1
#6
19035-MCS-761
SHROUD, L.
$102.30¢51 150
1
#7
19037-GEE-710
CAP, RADIATOR
$35.16¢17 581
1
#8
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#9
19051-KA3-830
RUBBER, RADIATOR MOUNTING
$4.01¢2 006
1
#10
19052-MGH-640
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#10
19052-MN8-000
COLLAR, RADIATOR MOUNTING
$3.20¢1 600
1
#11
19101-MCS-305
TANK, RESERVE (COO)
$45.30¢22 650
1
#12
19109-KPC-640
CAP, RESERVE TANK
$5.83¢2 913
1
#13
19130-MCS-D91
MOTOR ASSY., L. FAN
$391.85¢195 925
1
#14
19501-MCS-G00
HOSE, RADIATOR (UPPER)
$25.21¢12 606
1
#15
19502-MCS-G00
HOSE, RADIATOR (LOWER)
$20.92¢10 462
1
#16
19515-MCS-G00
STAY, RADIATOR (UPPER)
$34.81¢17 406
1
#17
19516-GAG-003
CLAMP, HOSE (30-37MM)
$16.15¢8 075
1
#18
90111-162-000
BOLT, FLANGE (6MM)
$3.65¢1 825
1
#19
90120-GHB-611
BOLT-WASHER (6X14)
$3.44¢1 719
1
#20
90315-MK3-003
NUT, SERRATE (5MM)
$2.99¢1 494
1
#21
90861-SA5-003
PLUG, HOLE (20MM)
$10.45¢5 225
1
#22
94103-06700
WASHER, PLAIN (6MM)
$0.93¢463
1
#23
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#24
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
1
#25
95005-55003-20M
BULK HOSE, VACUUM (5.5X3000) OEM CUT SIZE: (5.3X580)
$39.89¢19 944
1
#26
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#27
96001-06025-07
BOLT, FLANGE (6X25)
$1.72¢862
1
