RIGHT CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

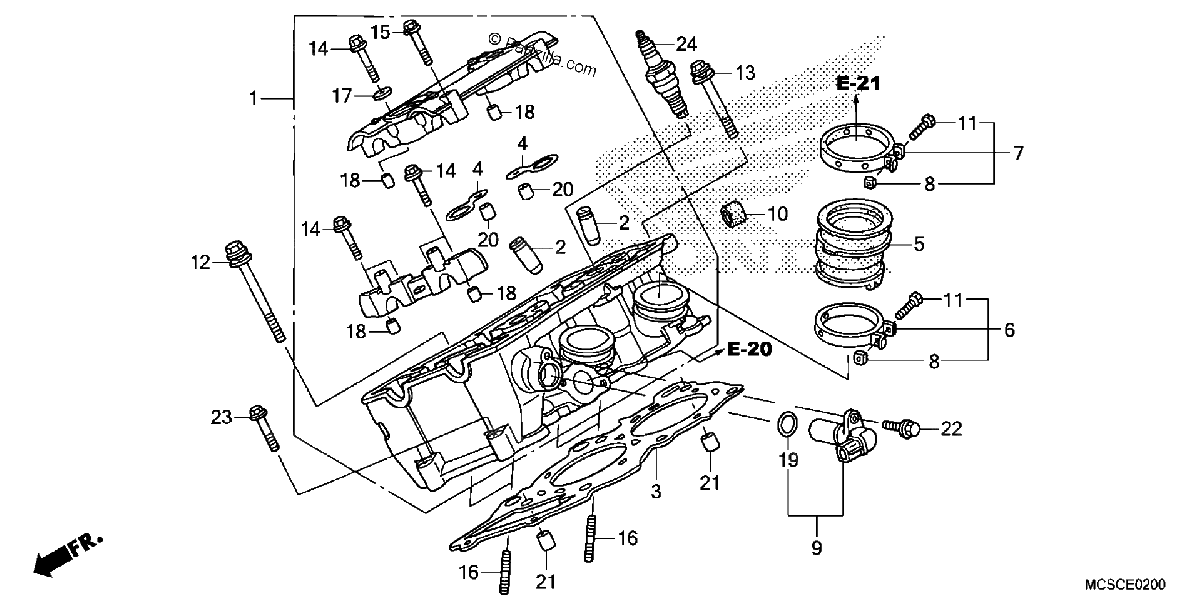

Diagrama de RIGHT CYLINDER HEAD

Repuestos

#1
12010-MCS-D80
CYLINDER HEAD ASSY., R.
$1386.74¢693 369
1
#1
12010-MCS-D81
CYLINDER HEAD ASSY., R.
$1366.70¢683 350
1
#2
12205-MCS-305
GUIDE, VALVE (OVER SIZE)
$22.34¢11 169
1
#3
12251-MCS-D81
GASKET, R. CYLINDER HEAD
$68.56¢34 281
1
#4
12395-MCS-000
GASKET, PLUG HOLE
$6.30¢3 150
1
#5
16211-MCS-000
INSULATOR, THROTTLE BODY
$26.35¢13 175
1
#6
16217-MCS-000
BAND A, INSULATOR
$5.54¢2 769
1
#7
16218-MCS-000
BAND B, INSULATOR
$6.39¢3 194
1
#8
16222-MV4-300
NUT, SQUARE (5MM)
$2.76¢1 381
1
#9
28810-P7Z-004
PICK-UP ASSY.
$307.81¢153 906
1
#10
46515-MN1-670
TUBE, BRAKE PEDAL SPRING
$4.20¢2 100
1
#11
90005-MAS-E00
BOLT, RECESSED (5X28)
$4.13¢2 063
1
#12
90007-MAT-000
BOLT-WASHER (10X105)
$13.89¢6 944
1
#13
90007-MCS-000
BOLT-WASHER (10X90)
$7.15¢3 575
1
#14
90018-425-000
BOLT, FLANGE (6X48)
$4.06¢2 031
1
#15
90019-MA6-000
BOLT, FLANGE (6X39.5)
$3.65¢1 825
1
#16
90035-MM5-000
BOLT, STUD (8X24)
$6.20¢3 100
1
#17
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#18
90702-HC4-000
PIN, DOWEL (8X16)
$2.69¢1 344
1
#18
94301-08160
PIN, DOWEL (8X16)
$2.69¢1 344
1
#19
91309-PX4-003
O-RING (16X2.1) (NOK)
$3.65¢1 825
1
#20
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
#21
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#22
95701-06018-07
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#23
95701-06040-00
BOLT, FLANGE (6X40)
$2.41¢1 206
1
#24
98059-57916
SPARK PLUG (CR7EH9) (NGK)
$9.05¢4 525
1
#24
98059-57926
SPARK PLUG (U22FER9) (DENSO)
$9.51¢4 756
1
#24
98059-58916
SPARK PLUG (CR8EH9) (NGK)
$9.51¢4 756
1
#24
98059-58926
SPARK PLUG (U24FER9) (DENSO)
$9.51¢4 756
1
#24
98059-59910
SPARK PLUG (CR9EH9) (NGK)
$9.51¢4 756
1
#24
98059-59916
SPARK PLUG (CR9EH-9) (NGK)
$9.51¢4 756
1
#24
98059-59926
SPARK PLUG (U27FER9) (DENSO)
$9.51¢4 756
1
