TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

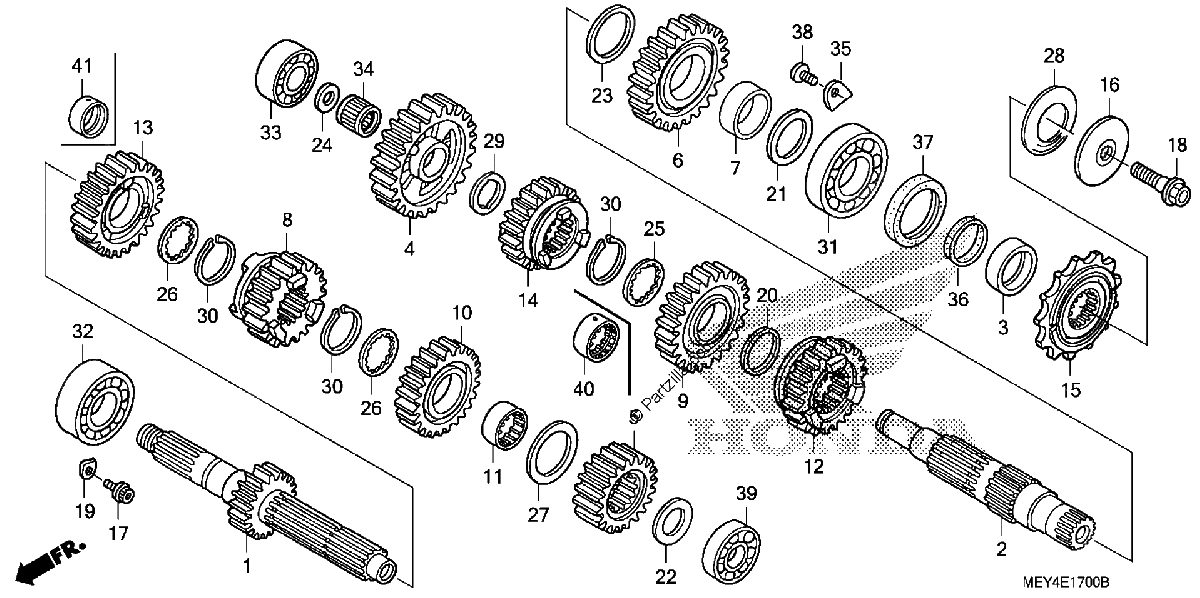

Diagrama de TRANSMISSION

Repuestos

#1
23210-MEY-A20
MAINSHAFT (13T)
$205.17¢102 586
1
#2
23221-MEY-A20
COUNTERSHAFT
$196.24¢98 118
1
#3
23225-MEN-730
COLLAR, COUNTERSHAFT
$15.41¢7 705
1
#4
23411-MEY-670
GEAR, COUNTERSHAFT LOW (29T)
$174.67¢87 337
1
#5
23421-MEY-670
GEAR, MAINSHAFT SECOND (16T)
$69.53¢34 765
1
#6
23431-MEY-670
GEAR, COUNTERSHAFT SECOND (26T)
$121.96¢60 979
1
#7
23432-MEY-670
COLLAR, COUNTERSHAFT SECOND GEAR
$11.32¢5 658
1
#8
23441-MEY-A20
GEAR, MAINSHAFT THIRD (17T)
$140.32¢70 161
1
#9
23451-MEY-A20
GEAR, COUNTERSHAFT THIRD (21T)
$109.43¢54 717
1
#10
23461-MEY-670
GEAR, MAINSHAFT FOURTH (19T)
$126.44¢63 221
1
#11
23462-MEY-670
COLLAR, MAINSHAFT FOURTH GEAR
$15.55¢7 774
1
#12
23471-MEY-670
GEAR, COUNTERSHAFT FOURTH (19T)
$134.66¢67 333
1
#13
23481-MEY-A20
GEAR, MAINSHAFT FIFTH (23T)
$128.72¢64 360
1
#14
23491-MEY-A20
GEAR, COUNTERSHAFT FIFTH (19T)
$140.32¢70 161
1
#15
23801-MEY-670
SPROCKET, DRIVE (13T)
$52.67¢26 335
1
#16
23802-KSC-670
COLLAR, DRIVE SPROCKET
$15.69¢7 843
1
#17
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#18
90112-413-000
BOLT, UBS (8X33)
$4.30¢2 151
1
#19
90441-KA4-700
PLATE, BEARING HOLDER
$3.74¢1 869
1
#20
90401-HP1-670
WASHER (25X32X1.0)
$3.36¢1 679
1
#21
90445-ML3-871
WASHER, THRUST (24.1X36X1.5)
$5.70¢2 852
1
#22
90446-KA4-740
WASHER, THRUST (17.2MM)
$6.64¢3 318
1
#23
90446-ML3-870
WASHER, THRUST (27.2X35)
$5.43¢2 714
1
#24
90446-357-000
WASHER, THRUST (17.2MM)
$4.01¢2 007
1
#25
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
$4.25¢2 128
1
#26
90451-MEY-670
WASHER, THRUST INVOLUTE (25X31X1.5)
$2.98¢1 489
1
#27
90459-357-000
WASHER C, THRUST (25MM)
$4.01¢2 007
1
#28
90501-KSC-670
WASHER, SPRING (24MM)
$4.75¢2 375
1
#29
90554-KA5-680
WASHER, THRUST (19MM)
$4.88¢2 438
1
#30
90602-259-010
CIRCLIP, OUTER (25MM)
$6.87¢3 433
1
#31
91001-ML3-873
BEARING, RADIAL BALL (24X56X14) (NTN)
$20.21¢10 103
1
#32
91003-MBN-671
BEARING, BALL (5205A)
$38.26¢19 130
1
#33
91006-MEY-671
BEARING, BALL (5203U)
$57.84¢28 922
1
#34
91007-MEN-731
BEARING, NEEDLE (19X22X9.8)
$10.07¢5 037
1
#35
91012-KA3-710
PLATE, COUNTERSHAFT BEARING
$5.44¢2 720
1
#36
91201-ML3-873
D-RING (23.75MM) (ARAI)
$4.08¢2 041
1
#37
91207-ML3-871
OIL SEAL (31X40X7) (ARAI)
$10.98¢5 491
1
#38
93600-06012-0A
SCREW, FLAT (6X12)
$1.12¢558
1
#39
91001-KSK-671
BEARING, RADIAL BALL (6203U)
$11.99¢5 997
1
#40
23432-HN1-A40
COLLAR (28X25X10.5)
$12.57¢6 285
1
#41
23482-MEN-A00
COLLAR (25X28X10)
$15.08¢7 538
1
