RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

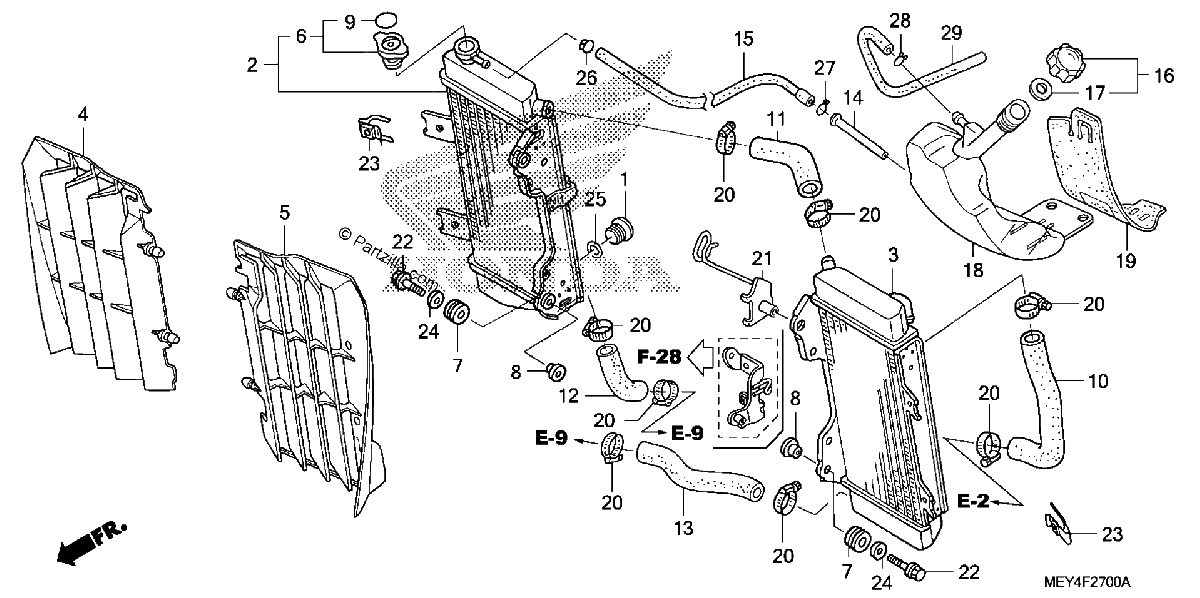

Diagrama de RADIATOR

Repuestos

#1
12206-881-310
BOLT, SEALING (16MM)
$6.95¢3 475
1
#2
19010-MEY-305
RADIATOR, R. (COO)
$442.44¢221 219
1
#2
19010-MEY-671
RADIATOR, R.
$442.44¢221 219
1
#3
19015-MEY-305
RADIATOR, L. (COO)
$442.44¢221 219
1
#3
19015-MEY-671
RADIATOR, L.
$442.44¢221 219
1
#4
19033-MEY-670
GRILLE, R. RADIATOR
$43.90¢21 950
1
#5
19034-MEY-670
GRILLE, L. RADIATOR
$43.90¢21 950
1
#6
19037-KRN-641
CAP, RADIATOR
$48.25¢24 125
1
#7
19051-KRN-000
RUBBER, RADIATOR MOUNTING
$3.44¢1 719
1
#8
19052-MAC-680
COLLAR, RADIATOR MOUNTING
$6.23¢3 113
1
#9
19055-KRN-641
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$5.51¢2 756
1
#10
19062-MEY-670
HOSE B, WATER
$15.84¢7 919
1
#11
19064-KRN-000
HOSE D, WATER
$12.18¢6 088
1
#12
19064-MEY-670
HOSE D, WATER
$13.32¢6 663
1
#13
19065-MEY-670
HOSE E, WATER
$20.33¢10 163
1
#14
19101-MEY-670
TUBE, RESERVE TANK
$7.92¢3 963
1
#15
19102-MEY-670
HOSE, RESERVE TANK
$14.82¢7 413
1
#16
19105-MG8-000
CAP ASSY., RESERVE TANK
$14.71¢7 356
1
#17
19107-MG8-000
GASKET, RESERVE TANK
$5.94¢2 969
1
#18
19110-MEY-670
TANK, RADIATOR RESERVE
$42.60¢21 300
1
#19
19114-MEY-670
RUBBER, RESERVE TANK
$18.21¢9 106
1
#20
19506-KS6-700
CLAMP B, WATER HOSE
$9.10¢4 550
1
#21
50129-MEY-A10
GUIDE, MAIN HARNESS
$22.31¢11 156
1
#22
90001-GB4-000
BOLT, FLANGE (6X23.5)
$2.44¢1 219
1
#23
90303-KRN-000
NUT, CLIP (6MM)
$3.44¢1 719
1
#24
90403-KA3-830
WASHER, RADIATOR MOUNTING
$3.04¢1 519
1
#25
91307-611-000
O-RING (13.5X1.4)
$3.65¢1 825
1
#25
91307-PH7-660
O-RING (13.5X1.4)
$3.65¢1 825
1
#26
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#27
95002-02130
CLIP, TUBE (B12.5)
$1.47¢737
1
#28
95002-50000
CLIP, TUBE (C9)
$1.54¢769
1
#29
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$24.39¢12 194
1
