PROPORTION CONTROL VALVE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

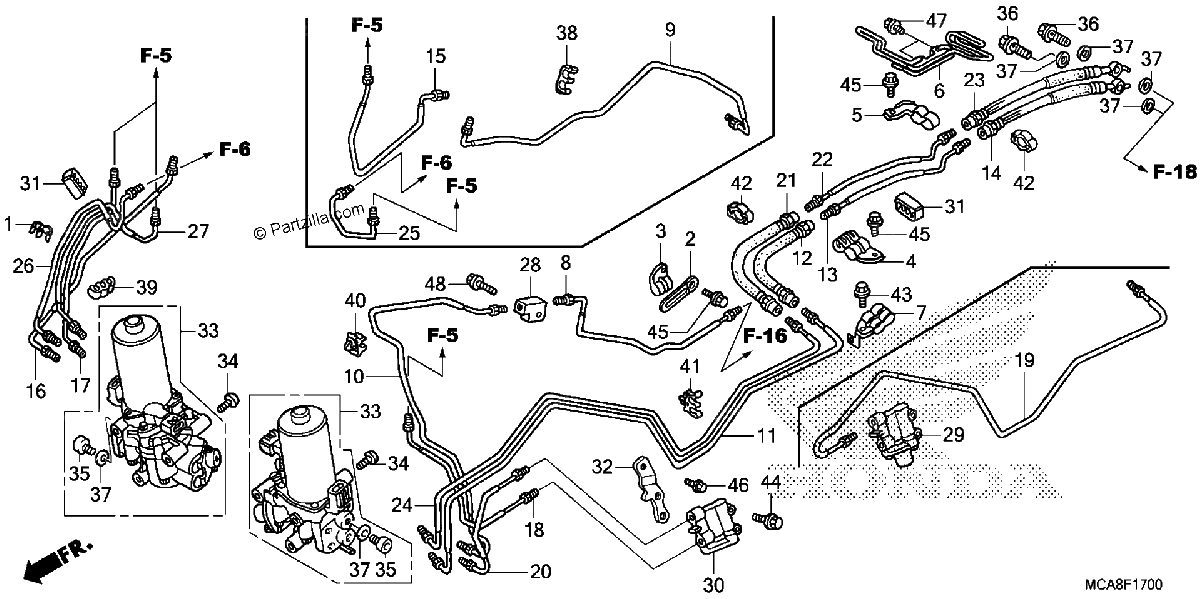

Diagrama de PROPORTION CONTROL VALVE

Repuestos

#2
32170-443-850
CLIP, WIRE HARNESS
$6.63¢3 313
1
#002
32170-443-850
CLIP, WIRE HARNESS
$6.63¢3 313
1
#003
43156-MCA-000
CLAMP A, RR. BRAKE HOSE
$3.08¢1 538
1
#3
43156-MCA-000
CLAMP A, RR. BRAKE HOSE
$3.08¢1 538
1
#4
43157-MCA-000
CLAMP B, RR. BRAKE HOSE
$3.89¢1 944
1
#004
43157-MCA-000
CLAMP B, RR. BRAKE HOSE
$3.89¢1 944
1
#5
43158-MCA-000
CLAMP C, RR. BRAKE HOSE
$5.09¢2 544
1
#005
43158-MCA-000
CLAMP C, RR. BRAKE HOSE
$5.09¢2 544
1
#6
43159-MCA-A20
GUIDE, RR. BRAKE HOSE
$37.40¢18 700
1
#006
43159-MCA-A20
GUIDE, RR. BRAKE HOSE
$37.40¢18 700
1
#7
43161-MCA-000
CLAMP D, RR. BRAKE HOSE
$5.09¢2 544
1
#007
43161-MCA-000
CLAMP D, RR. BRAKE HOSE
$5.09¢2 544
1
#008
43311-MCA-000
MAIN PIPE A, RR. BRAKE
$15.48¢7 738
1
#8
43311-MCA-000
MAIN PIPE A, RR. BRAKE
$15.48¢7 738
1
#9
43312-MCA-670
MAIN PIPE B, RR. BRAKE
$25.04¢12 519
1
#009
43312-MCA-670
MAIN PIPE B, RR. BRAKE
$25.04¢12 519
1
#12
43314-MCA-971
MAIN HOSE B, RR. BRAKE
$22.54¢11 269
1
#012
43314-MCA-971
MAIN HOSE B, RR. BRAKE
$22.54¢11 269
1
#013
43315-MCA-000
MAIN PIPE C, RR. BRAKE
$9.57¢4 788
1
#13
43315-MCA-000
MAIN PIPE C, RR. BRAKE
$9.57¢4 788
1
#014
43316-MCA-A21
MAIN HOSE C, RR. BRAKE
$31.50¢15 750
1
#14
43316-MCA-A21
MAIN HOSE C, RR. BRAKE
$31.50¢15 750
1
#015
43320-MCA-670
SUB-PIPE A, BRAKE
$9.74¢4 869
1
#15
43320-MCA-670
SUB-PIPE A, BRAKE
$9.74¢4 869
1
#018
43326-MCA-A60
SUB-PIPE C, BRAKE
$7.56¢3 781
1
#18
43326-MCA-A60
SUB-PIPE C, BRAKE
$7.56¢3 781
1
#19
43327-MCA-A60
SUB-PIPE D, BRAKE
$13.40¢6 700
1
#019
43327-MCA-A60
SUB-PIPE D, BRAKE
$13.40¢6 700
1
#21
43329-MCA-971
SUB-HOSE E, BRAKE
$22.05¢11 025
1
#021
43329-MCA-971
SUB-HOSE E, BRAKE
$22.05¢11 025
1
#22
43330-MCA-000
SUB-PIPE E, BRAKE
$9.65¢4 825
1
#022
43330-MCA-000
SUB-PIPE E, BRAKE
$9.65¢4 825
1
#23
43331-MCA-A21
SUB-HOSE F, BRAKE
$30.38¢15 188
1
#023
43331-MCA-A21
SUB-HOSE F, BRAKE
$30.38¢15 188
1
#25
45125-MCA-670
MAIN PIPE A, FR. BRAKE
$35.61¢17 806
1
#025
45125-MCA-670
MAIN PIPE A, FR. BRAKE
$35.61¢17 806
1
#028
45151-MCA-003
PIPE, THREE WAY JOINT
$13.79¢6 894
1
#28
45151-MCA-003
PIPE, THREE WAY JOINT
$13.79¢6 894
1
#029
46200-MCA-672
VALVE ASSY., PROPORTIONING CONTROL
$587.46¢293 731
1
#29
46200-MCA-672
VALVE ASSY., PROPORTIONING CONTROL
$587.46¢293 731
1
#032
50307-MCA-A60
STAY, P.C.V.
$8.55¢4 275
1
#32
50307-MCA-A60
STAY, P.C.V.
$8.55¢4 275
1
#36
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#036
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#037
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#37
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#038
90661-MCA-003
CLAMP, BRAKE PIPE
$2.76¢1 381
1
#38
90661-MCA-003
CLAMP, BRAKE PIPE
$2.76¢1 381
1
#41
90664-MCA-003
CLAMP, BRAKE PIPE (7.0X2)
$3.65¢1 825
1
#041
90664-MCA-003
CLAMP, BRAKE PIPE (7.0X2)
$3.65¢1 825
1
#043
95701-06020-08
BOLT, FLANGE (6X20)
$0.47¢238
1
#43
95701-06020-08
BOLT, FLANGE (6X20)
$0.47¢238
1
#044
95701-06032-08
BOLT, FLANGE (6X32)
$2.41¢1 206
1
#44
95701-06032-08
BOLT, FLANGE (6X32)
$2.41¢1 206
1
#045
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#45
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#46
96001-06014-07
BOLT, FLANGE (6X14)
$1.54¢769
1
#046
96001-06014-07
BOLT, FLANGE (6X14)
$1.54¢769
1
#047
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#47
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#048
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#48
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
