WINDSCREEN

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

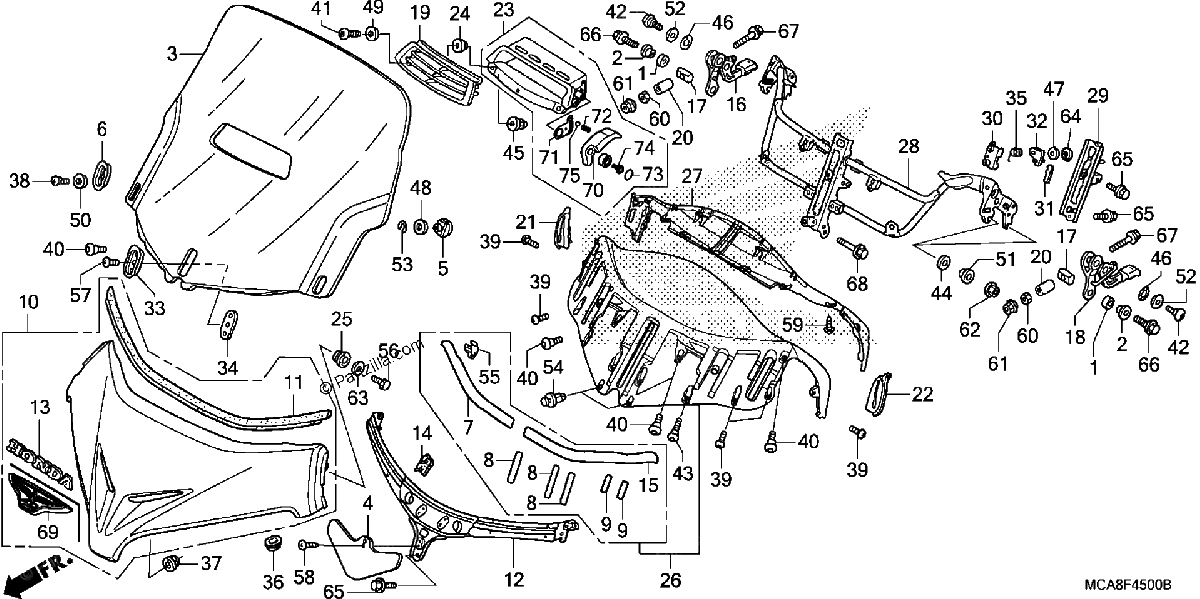

Diagrama de WINDSCREEN

Repuestos

#1
50605-GZ4-670
COLLAR, STEP RUBBER SETTING
$4.41¢2 206
1
#001
50605-GZ4-670
COLLAR, STEP RUBBER SETTING
$4.41¢2 206
1
#2
61105-KM7-910
COLLAR, FR. FENDER
$3.75¢1 875
1
#002
61105-KM7-910
COLLAR, FR. FENDER
$3.75¢1 875
1
#3
64100-MCA-305
WINDSCREEN (COO)
$859.33¢429 663
1
#003
64100-MCA-305
WINDSCREEN (COO)
$859.33¢429 663
1
#4
64113-MCA-S40
COVER, GARNISH
$45.60¢22 800
1
#004
64113-MCA-S40
COVER, GARNISH
$45.60¢22 800
1
#005
64114-MCA-000
NUT, WINDSCREEN SETTING
$7.11¢3 556
1
#5
64114-MCA-000
NUT, WINDSCREEN SETTING
$7.11¢3 556
1
#006
64116-MN5-000
PLATE, WINDSCREEN SETTING
$7.52¢3 762
1
#6
64116-MN5-000
PLATE, WINDSCREEN SETTING
$7.52¢3 762
1
#7
64117-MCA-300
TAPE A, R. SLIDE
$17.11¢8 556
1
#007
64117-MCA-300
TAPE A, R. SLIDE
$17.11¢8 556
1
#8
64118-MCA-300
TAPE B, SLIDE
$3.17¢1 588
1
#008
64118-MCA-300
TAPE B, SLIDE
$3.17¢1 588
1
#009
64119-MCA-300
TAPE C, SLIDE
$2.27¢1 138
1
#9
64119-MCA-300
TAPE C, SLIDE
$2.27¢1 138
1
#010
64120-MCA-S40ZC
GARNISH SET, SCREEN *NH341P* (WL) (PEARL FADELESS WHITE)
$630.42¢315 213
1
#010
64120-MCA-S40ZD
GARNISH SET, SCREEN *R345C* (WL) (CANDY ALIZARIN RED)
$630.42¢315 213
1
#10
64120-MCA-S40ZD
GARNISH SET, SCREEN *R345C* (WL) (CANDY ALIZARIN RED)
$630.42¢315 213
1
#010
64120-MCA-S40ZA
GARNISH SET, SCREEN *B197M* (WL) (GLINT WAVE BLUE METALLIC)
$603.34¢301 669
1
#10
64120-MCA-S40ZC
GARNISH SET, SCREEN *NH341P* (WL) (PEARL FADELESS WHITE)
$630.42¢315 213
1
#10
64120-MCA-S40ZB
GARNISH SET, SCREEN NHB01 (WL)NHRAPHITE BLACK)
$630.42¢315 213
1
#010
64120-MCA-S40ZB
GARNISH SET, SCREEN NHB01 (WL)NHRAPHITE BLACK)
$630.42¢315 213
1
#10
64120-MCA-S40ZA
GARNISH SET, SCREEN *B197M* (WL) (GLINT WAVE BLUE METALLIC)
$603.34¢301 669
1
#11
64121-MCA-000
SEAL, WINDSCREEN
$41.97¢20 987
1
#011
64121-MCA-000
SEAL, WINDSCREEN
$41.97¢20 987
1
#12
64122-MCA-000
HOLDER, WINDSCREEN
$91.35¢45 675
1
#012
64122-MCA-000
HOLDER, WINDSCREEN
$91.35¢45 675
1
#13
64125-MCA-A40
EMBLEM, FR. (HONDA)
$51.29¢25 644
1
#013
64125-MCA-A40
EMBLEM, FR. (HONDA)
$51.29¢25 644
1
#14
64127-MCA-010
RUBBER, SCREEN HOLDER
$5.66¢2 831
1
#014
64127-MCA-010
RUBBER, SCREEN HOLDER
$5.66¢2 831
1
#15
64128-MCA-300
TAPE A, L. SLIDE
$17.11¢8 556
1
#015
64128-MCA-300
TAPE A, L. SLIDE
$17.11¢8 556
1
#16
64133-MCA-A60
LINK, R. ADJUST
$34.96¢17 481
1
#016
64133-MCA-A60
LINK, R. ADJUST
$34.96¢17 481
1
#17
64137-MCA-000
BRACKET, TENSIONER
$8.81¢4 406
1
#017
64137-MCA-000
BRACKET, TENSIONER
$8.81¢4 406
1
#018
64143-MCA-A60
LINK, L. ADJUSTING
$34.96¢17 481
1
#18
64143-MCA-A60
LINK, L. ADJUSTING
$34.96¢17 481
1
#019
64150-MCA-A21
GRILLE, CENTER FRESH AIR
$15.20¢7 600
1
#19
64150-MCA-A21
GRILLE, CENTER FRESH AIR
$15.20¢7 600
1
#020
64152-MCA-000
COLLAR, ADJUSTING LEVER
$6.57¢3 287
1
#20
64152-MCA-000
COLLAR, ADJUSTING LEVER
$6.57¢3 287
1
#21
64153-MCA-A60
RUBBER, R. ADJUSTING LEVER
$9.22¢4 613
1
#021
64153-MCA-A60
RUBBER, R. ADJUSTING LEVER
$9.22¢4 613
1
#22
64163-MCA-A60
RUBBER, L. ADJUSTING LEVER
$7.90¢3 950
1
#022
64163-MCA-A60
RUBBER, L. ADJUSTING LEVER
$7.90¢3 950
1
#23
64170-MCA-S41
VISOR Assembly., FRESH AIR
$334.80¢167 400
1
#023
64170-MCA-S41
VISOR Assembly., FRESH AIR
$334.80¢167 400
1
#023
64170-MCA-S42
VISOR ASSY., FRESH AIR
$334.80¢167 400
1
#23
64170-MCA-S42
VISOR ASSY., FRESH AIR
$334.80¢167 400
1
#024
64205-MCA-A21
GROMMET
$0.84¢419
1
#24
64205-MCA-A21
GROMMET
$0.84¢419
1
#025
64246-MJ4-670
RUBBER, FAIRING MOUNTING
$5.83¢2 913
1
#25
64246-MJ4-670
RUBBER, FAIRING MOUNTING
$5.83¢2 913
1
#26
64255-MCA-S40ZA
VISOR A, METER PANEL *NH105* (MAT BLACK)
$349.39¢174 694
1
#026
64255-MCA-S40ZA
VISOR A, METER PANEL *NH105* (MAT BLACK)
$349.39¢174 694
1
#027
64265-MCA-A60ZA
VISOR B, METER PANEL *NH1* (BLACK)
$104.50¢52 250
1
#27
64265-MCA-A60ZA
VISOR B, METER PANEL *NH1* (BLACK)
$104.50¢52 250
1
#28
64511-MCA-A60
STAY B, COWL (UPPER)
$327.41¢163 706
1
#028
64511-MCA-A60
STAY B, COWL (UPPER)
$327.41¢163 706
1
#029
64541-MCA-A60
HOLDER, ADJUSTER
$640.92¢320 463
1
#29
64541-MCA-A60
HOLDER, ADJUSTER
$640.92¢320 463
1
#30
64542-MCA-010
BODY, ADJUSTER
$16.64¢8 319
1
#030
64542-MCA-010
BODY, ADJUSTER
$16.64¢8 319
1
#031
64543-MCA-000
CAM B, ADJUSTER
$6.80¢3 400
1
#31
64543-MCA-000
CAM B, ADJUSTER
$6.80¢3 400
1
#032
64544-MCA-000
CAM A, ADJUSTER
$7.13¢3 563
1
#32
64544-MCA-000
CAM A, ADJUSTER
$7.13¢3 563
1
#033
64547-MCA-000
HOLDER A, SCREEN
$48.46¢24 231
1
#33
64547-MCA-000
HOLDER A, SCREEN
$48.46¢24 231
1
#34
64548-MCA-000
HOLDER B, SCREEN
$3.50¢1 750
1
#034
64548-MCA-000
HOLDER B, SCREEN
$3.50¢1 750
1
#35
64549-MCA-000
SPRING, HOLDER
$3.10¢1 550
1
#035
64549-MCA-000
SPRING, HOLDER
$3.10¢1 550
1
#36
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#036
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#37
83601-MN5-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#037
83601-MN5-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#38
90103-HC4-770
SCREW, SPLASH GUARD
$2.88¢1 438
1
#038
90103-HC4-770
SCREW, SPLASH GUARD
$2.88¢1 438
1
#39
90601-473-003
E-RING (8MM)
$2.89¢1 444
1
#39
90104-964-000
SCREW (5X12)
$3.01¢1 506
1
#039
90104-964-000
SCREW (5X12)
$3.01¢1 506
1
#040
90106-KY2-701
SCREW, PAN (6X11)
$5.15¢2 575
1
#40
90106-KY2-701
SCREW, PAN (6X11)
$5.15¢2 575
1
#041
90109-MBL-610
SCREW, PAN (5X15.5)
$3.65¢1 825
1
#41
90109-MBL-610
SCREW, PAN (5X15.5)
$3.65¢1 825
1
#042
90118-MCA-000
SCREW, PAN (6X11)
$3.33¢1 663
1
#42
90118-MCA-000
SCREW, PAN (6X11)
$3.33¢1 663
1
#43
90138-MCA-000
SCREW, PAN (6X14)
$2.54¢1 269
1
#043
90138-MCA-000
SCREW, PAN (6X14)
$2.54¢1 269
1
#044
90148-SA0-000
WASHER, BUMPER BOLT
$4.39¢2 194
1
#44
90148-SA0-000
WASHER, BUMPER BOLT
$4.39¢2 194
1
#45
90167-SA0-980
NUT, FLANGE CAP (5MM)
$6.79¢3 394
1
#045
90167-SA0-980
NUT, FLANGE CAP (5MM)
$6.79¢3 394
1
#046
90435-422-000
WASHER, WAVE (10MM)
$4.16¢2 081
1
#46
90435-422-000
WASHER, WAVE (10MM)
$4.16¢2 081
1
#047
90443-ZG3-000
WASHER (15.5MM)
$2.92¢1 463
1
#47
90443-ZG3-000
WASHER (15.5MM)
$2.92¢1 463
1
#048
90476-703-000
WASHER
$1.25¢625
1
#48
90476-703-000
WASHER
$1.25¢625
1
#49
90504-MCA-H50
WASHER, THRUST (5MM)
$1.86¢931
1
#049
90504-MCA-H50
WASHER, THRUST (5MM)
$1.86¢931
1
#050
90507-921-000
WASHER, NYLON (8MM)
$1.19¢594
1
#50
90507-921-000
WASHER, NYLON (8MM)
$1.19¢594
1
#051
90512-300-000
WASHER (6X20)
$3.74¢1 869
1
#51
90512-300-000
WASHER (6X20)
$3.74¢1 869
1
#052
90589-VD6-901
WASHER, THRUST (8.6X13X0.6)
$2.84¢1 419
1
#52
90589-VD6-901
WASHER, THRUST (8.6X13X0.6)
$2.84¢1 419
1
#053
90601-473-003
E-RING (8MM)
$2.89¢1 444
1
#54
90657-SB0-003
CLIP, SPLASH SHIELD
$6.39¢3 194
1
#054
90657-SB0-003
CLIP, SPLASH SHIELD
$6.39¢3 194
1
#055
90666-S84-A01
CLIP, SNAP FITTING
$0.83¢413
1
#55
90666-S84-A01
CLIP, SNAP FITTING
$0.83¢413
1
#056
92301-06008-0A
BOLT, RECESSED (6X8)
$1.89¢944
1
#56
92301-06008-0A
BOLT, RECESSED (6X8)
$1.89¢944
1
#057
93500-06008-0A
SCREW, PAN (6X8)
$1.41¢706
1
#057
93500-06008-1H
SCREW, PAN (6X8)
$1.41¢706
1
#57
93500-06008-0A
SCREW, PAN (6X8)
$1.41¢706
1
#57
93500-06008-0H
SCREW, PAN (6X8)
$1.41¢706
1
#57
93500-06008-1H
SCREW, PAN (6X8)
$1.41¢706
1
#057
90053-371-980
SCREW, PAN (6X8)
$1.41¢706
1
#057
93500-06008-0H
SCREW, PAN (6X8)
$1.41¢706
1
#57
90053-371-980
SCREW, PAN (6X8)
$1.41¢706
1
#058
93903-24020
SCREW, TAPPING (4X6)
$1.06¢531
1
#58
93903-24020
SCREW, TAPPING (4X6)
$1.06¢531
1
#59
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#059
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#060
94002-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#60
94002-06000-0S
NUT, HEX. (6MM)
$1.68¢838
1
#061
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#61
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#062
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#62
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#63
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#063
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#064
94510-10000
CIRCLIP, OUTER (10MM)
$1.41¢706
1
#64
94510-10000
CIRCLIP, OUTER (10MM)
$1.41¢706
1
#065
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#65
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#66
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#066
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
#067
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#67
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#68
96001-06045-00
BOLT, FLANGE (6X45)
$2.52¢1 263
1
#068
96001-06045-00
BOLT, FLANGE (6X45)
$2.52¢1 263
1
#70
64157-MCA-A20
LEVER, CENTER FRESH AIR
$20.76¢10 381
1
#070
64157-MCA-A20
LEVER, CENTER FRESH AIR
$20.76¢10 381
1
#071
64167-MCA-A21
PLATE, LEVER CLICK
$4.74¢2 369
1
#71
64167-MCA-A21
PLATE, LEVER CLICK
$4.74¢2 369
1
#72
64167-MT8-770
SPRING, LEVER CLICK
$4.01¢2 006
1
#072
64167-MT8-770
SPRING, LEVER CLICK
$4.01¢2 006
1
#073
64168-MT8-770
PLATE, COVER
$3.21¢1 606
1
#73
64168-MT8-770
PLATE, COVER
$3.21¢1 606
1
#74
90105-MB1-000
SCREW, SPECIAL (5X12)
$3.65¢1 825
1
#074
90105-MB1-000
SCREW, SPECIAL (5X12)
$3.65¢1 825
1
#075
91101-MAM-A80
BALL, STEEL (#6) (3/16)
$0.22¢112
1
#75
91101-MAM-A80
BALL, STEEL (#6) (3/16)
$0.22¢112
1
