FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

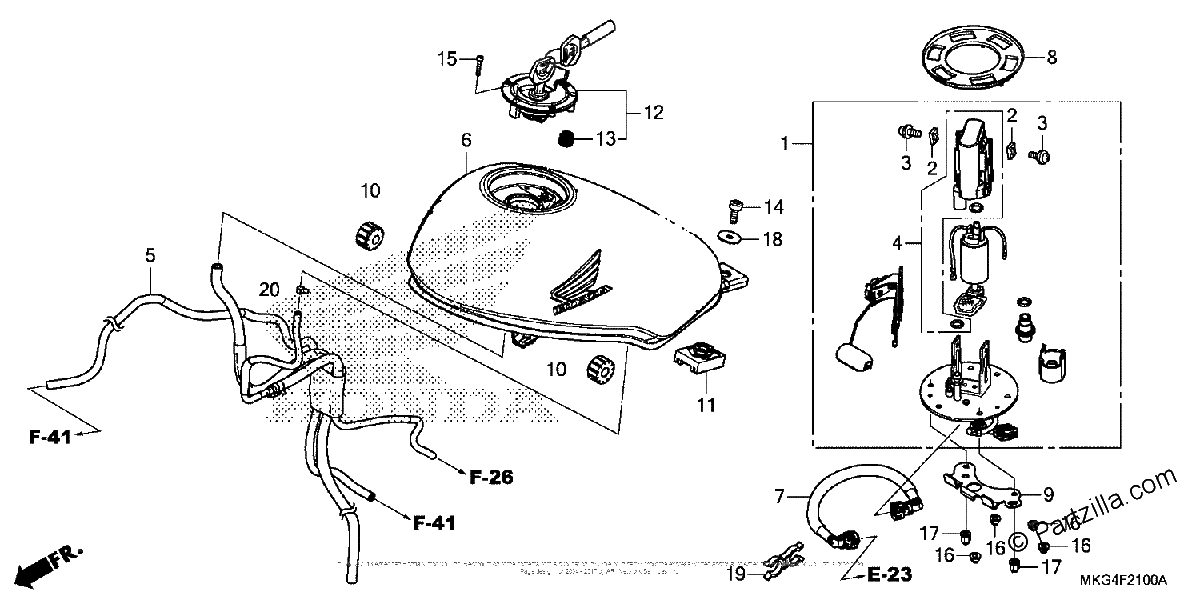

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#1
16700-MKG-A01
PUMP UNIT Assembly., FUEL (MSDS)
$545.36¢272 682
1
#2
16711-MGS-D31
STOPPER
$5.73¢2 864
1
#3
16712-MGS-D31
SCREW (4X6.6)
$2.22¢1 110
1
#4
16730-MJW-J81
FILTER Assembly., FUEL
No Disponible
1
#5
17417-MKG-L50
TUBE Assembly.
$285.14¢142 571
1
#6
17520-MKG-A00ZF
TANK SET, FUEL (TYPE1) (WL)
$749.82¢374 911
1
#7
17570-MKG-A01
HOSE, FUEL FEED
$47.21¢23 604
1
#8
17574-KZZ-910
GASKET, BASE
$36.14¢18 072
1
#9
17580-MKG-A00
GUARD, FUEL PUMP
$8.84¢4 422
1
#10
17611-KPK-900
CUSHION, Front FUEL TANK
$2.45¢1 225
1
#11
17613-K87-A00
CUSHION, Rear FUEL TANK
$7.13¢3 565
1
#12
17620-KZZ-J01
CAP, FUEL FILLER
$235.72¢117 858
1
#13
17621-MGP-D61
SEAL, BREATHER
$5.73¢2 864
1
#14
90116-MGZ-J00
BOLT, SOCKET (8X22)
$1.13¢564
1
#15
90120-MJE-D00
BOLT, SOCKET (4X25) (SUS)
$1.13¢564
1
#16
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#17
90304-KZZ-900
NUT, HEX. CAP (6MM)
$5.98¢2 990
1
#18
90325-KCC-900
WASHER, PLAIN (8MM)
$5.19¢2 593
1
#19
90600-HN2-B70
CLIP, PURSE LOCK (37MM)
$2.66¢1 328
1
#19
91593-MGZ-J01
CLAMP, FUEL HOSE (BLACK)
$2.68¢1 340
1
#20
95002-40800-08
CLAMP, TUBE (D8)
$2.66¢1 328
1
