COWLING LOWERS HSFNN HSFAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

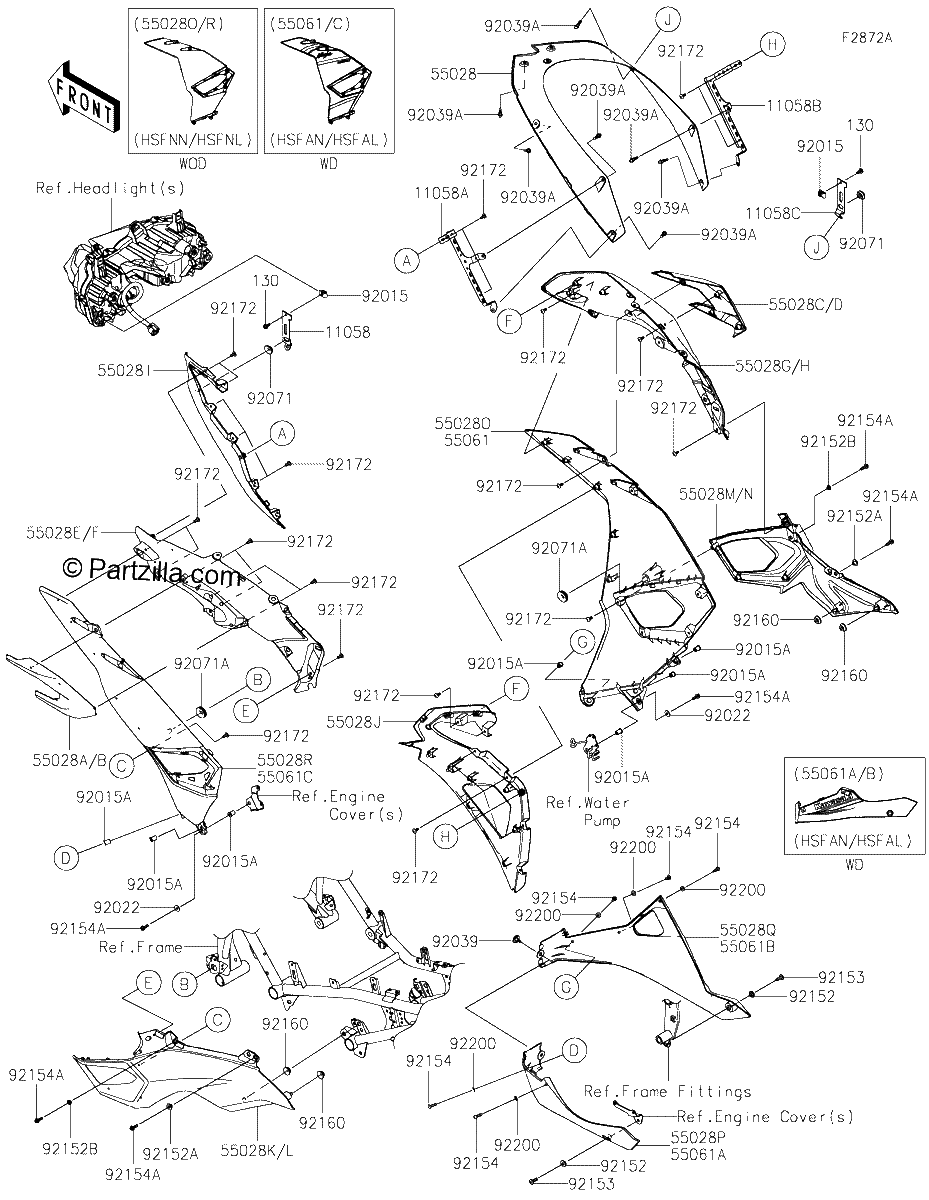

Diagrama de COWLING LOWERS HSFNN HSFAL

Repuestos

#130
130BA0512
BOLT-FLANGED,5X12
$2.01¢1 006
1
#11058
11058-1180
BRACKET,HEAD LAMP,Left Hand
$6.61¢3 306
1
#11058A
11058-1182
BRACKET,Front COWLING,Left Hand
$22.88¢11 438
1
#11058B
11058-1183
BRACKET,Front COWLING,Right Hand
$21.95¢10 975
1
#11058C
11058-2403
BRACKET,HEAD LAMP,Right Hand
$6.61¢3 306
1
#55028R
55028-0916-63V
COWLING,SIDE,LH,M.M.W.SILVER
$342.56¢171 281
1
#55028Q
55028-0889-63V
COWLING,LWR,RH,M.M.W.SILVER
$206.28¢103 138
1
#55028E
55028-0880-63V
COWLING,SIDE,UPP,LH,M.M.W.SIL
$256.09¢128 044
1
#55028
55028-0877
COWLING,Front
$82.29¢41 144
1
#55028A
55028-0878-25X
COWLING,FIN,Left Hand,M M GRAY
$61.05¢30 525
1
#55028B
55028-0878-H8
COWLING,FIN,Left Hand,EBONY
$61.05¢30 525
1
#55028C
55028-0879-25X
COWLING,FIN,Right Hand,M M GRAY
$57.96¢28 981
1
#55028D
55028-0879-H8
COWLING,FIN,Right Hand,EBONY
$61.05¢30 525
1
#55028F
55028-0880-H8
COWLING,SIDE,Upper,Left Hand,EBONY
$256.09¢128 044
1
#55028P
55028-0888-63V
COWLING,LWR,LH,M.M.W.SILVER
$199.99¢99 994
1
#55028G
55028-0881-63V
COWLING,SIDE,UPP,RH,M.M.W.SIL
$246.91¢123 456
1
#55028H
55028-0881-H8
COWLING,SIDE,Upper,Right Hand,EBONY
$246.91¢123 456
1
#55028I
55028-0882
COWLING,SIDE,Front,Left Hand
$66.31¢33 156
1
#55028J
55028-0883
COWLING,SIDE,Front,Right Hand
$66.31¢33 156
1
#55028K
55028-0884-63V
COWLING,SIDE,RR,LH,M.M.W.SIL
$227.70¢113 850
1
#55028L
55028-0884-777
COWLING,SIDE,Rear,Left Hand,L GREEN
$227.70¢113 850
1
#55028M
55028-0885-63V
COWLING,SIDE,RR,RH,M.M.W.SIL
$233.26¢116 631
1
#55028N
55028-0885-777
COWLING,SIDE,Rear,Right Hand,L GREEN
$233.26¢116 631
1
#55028O
55028-0887-63V
COWLING,SIDE,RH,M.M.W.SILVER
$347.48¢173 738
1
#55061A
55061-5385-H8
COWLING,Lower,Left Hand,EBONY
$251.95¢125 975
1
#55061B
55061-5386-H8
COWLING,Lower,Right Hand,EBONY
$259.86¢129 931
1
#55061C
55061-5387-777
COWLING,SIDE,Left Hand,L GREEN
$485.21¢242 606
1
#55061
55061-5384-777
COWLING,SIDE,Right Hand,L GREEN
$489.99¢244 994
1
#92015
92015-1710
NUT,5MM
$6.09¢3 044
1
#92015A
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92022
92022-263
WASHER,5.2X16X1.2
$1.59¢794
1
#92039
92039-0014
RIVET,HOLE 8MM
$2.97¢1 487
1
#92039A
92039-0709
RIVET
$2.46¢1 231
1
#92071
92071-0766
GROMMET,20X24X7.5
$1.42¢712
1
#92071A
92071-1043
GROMMET
$5.10¢2 550
1
#92152
92152-1838
COLLAR,6.5X16X5.6
$4.19¢2 094
1
#92152A
92152-2371
COLLAR,5.2X7.8X7.2
$3.70¢1 850
1
#92152B
92152-2395
COLLAR,6X8X4.5
$1.24¢619
1
#92153
92153-0478
BOLT,6X18
$2.36¢1 181
1
#92154
92154-4294
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92154A
92154-7034
BOLT,FLANGED,5X16
$0.95¢475
1
#92160
92160-1613
DAMPER
$3.70¢1 850
1
#92172
92172-0821
SCREW,5X12
$0.95¢475
1
#92200
92200-0784
WASHER,5.2X12X1.0
$0.95¢475
1
