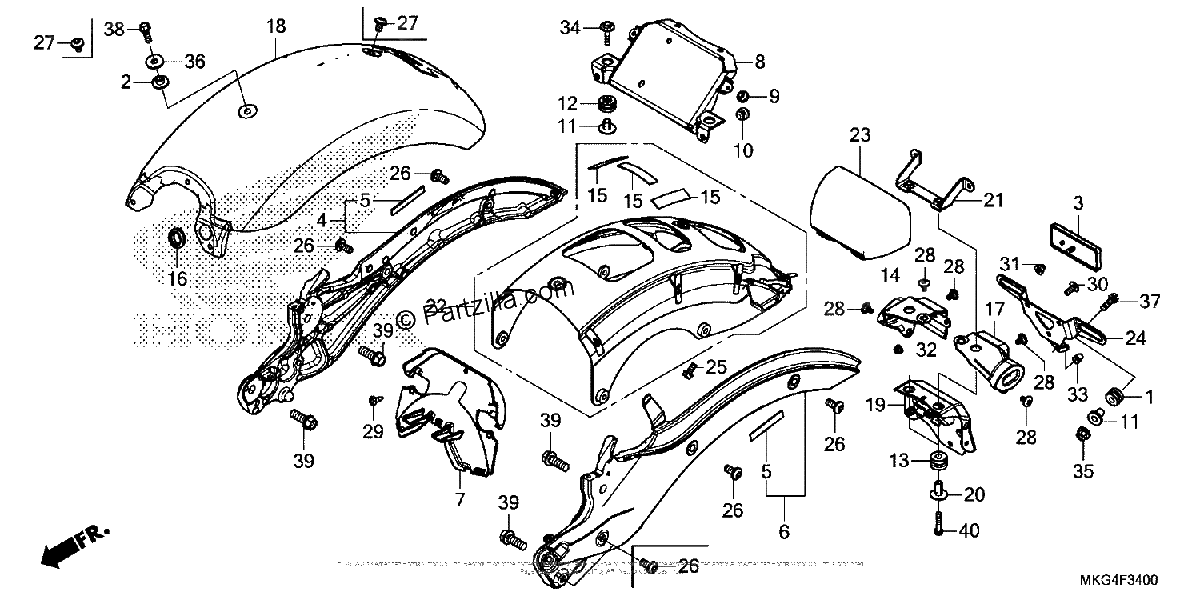

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.65¢1 825
#3
REFLECTOR, REFLEX
$8.94¢4 469
#4
FRAME Assembly., Right Rear. NH105 (MAT BLACK)
$222.46¢111 231
#5
RUBBER, RR. FRAME
$1.50¢750
#6
FRAME ASSY., L. RR. *NH105*(MAT BLACK)
$223.50¢111 750
#7
BOX B, BATTERY
$19.96¢9 981
#8
STAY, REGULATOR
$52.53¢26 263
#9
RUBBER, LINK STOPPER
$5.47¢2 738
#10
RUBBER, REGULATOR STAY MOUNTING
$1.95¢975
#11
COLLAR, FR. FENDER
$5.96¢2 981
#12
RUBBER, HEADLIGHT CASE MOUNTING
$4.20¢2 100
#13
RUBBER, SEAT SETTING
$4.76¢2 381
#14
FENDER A, Right Rear.
$8.38¢4 188
#15
RUBBER, Rear FENDER
$2.19¢1 094
#16
RUBBER, TAILLIGHT CODE
$3.71¢1 856
#17
FENDER A, L Rear.
$8.38¢4 188
#18
FENDER SET, RR. (TYPE1) (WL)
$203.52¢101 762
#19
STAY, Rear FENDER
$50.76¢25 381
#20
COLLAR, TAILLIGHT
$1.70¢850
#21
STAY, TAILLIGHT
$13.77¢6 887
#22
PLATE Assembly., Rear FRAME
$557.56¢278 781
#23
COVER, TAILLIGHT
$9.10¢4 550
#24
BRACKET, NUMBER PLATE
$12.28¢6 138
#25
BOLT, FLANGE (6X14)
$0.70¢350
#26
BOLT, SOCKET SPECIAL (8X18)
$0.74¢369
#27
BOLT, SOCKET SPECIAL (8X12)
$0.84¢419
#28
SCREW, SPECIAL (5X11)
$1.27¢638
#29
CLIP, BUMPER SEAL
$5.72¢2 863
#30
SCREW, PAN (6X14)
$1.11¢556
#31
NUT, CAP
$2.88¢1 438
#32
NUT, U (5MM)
$0.86¢431
#33
PLUG, CONE TYPE
$2.56¢1 281
#34
BOLT-WASHER (6X28)
$1.25¢625
#35
NUT, FLANGE (6MM)
$0.80¢400
#37
BOLT, FLANGE (6X22)
$2.31¢1 156
#39
BOLT, FLANGE (10X28)
$1.95¢975
#40
BOLT, FLANGE (6X28)
$2.79¢1 394
