GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

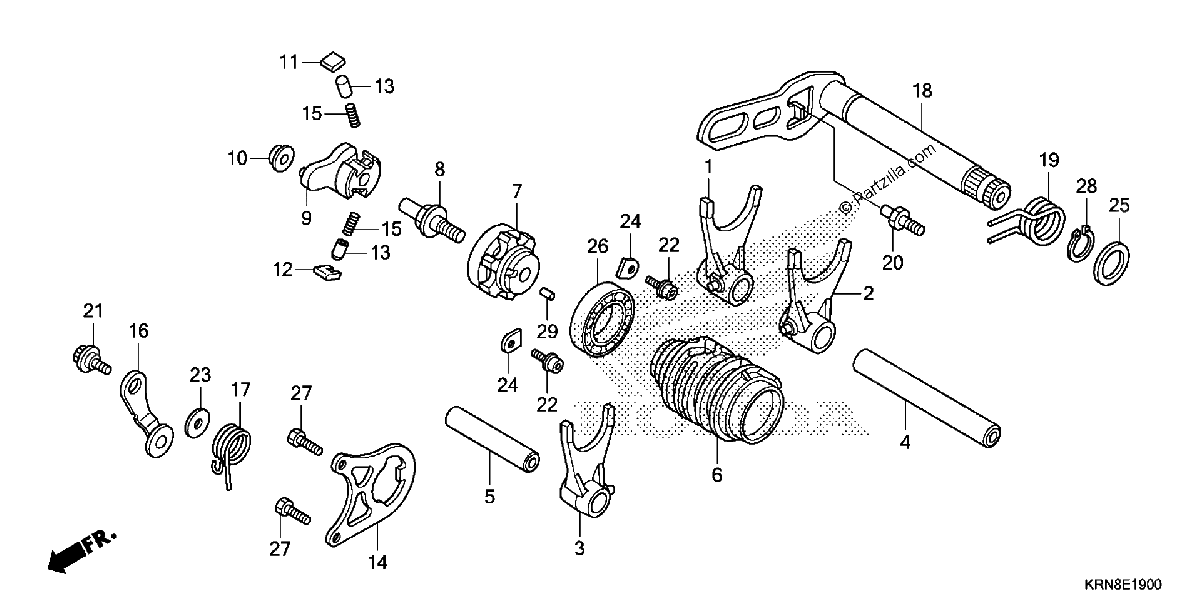

Diagrama de GEARSHIFT DRUM

Repuestos

#1
24211-KRN-A40
FORK, R. GEARSHIFT
$68.83¢34 414
1
#2
24221-KRN-A40
FORK, L. GEARSHIFT
$68.83¢34 414
1
#3
24231-KRN-A40
FORK, CENTER GEARSHIFT
$72.60¢36 300
1
#4
24241-KSC-670
SHAFT A, SHIFT FORK
$34.41¢17 204
1
#5
24242-KRN-A40
SHAFT B, SHIFT FORK
$16.95¢8 476
1
#6
24311-KRN-A80
DRUM, GEARSHIFT
$85.08¢42 539
1
#7
24312-KRN-B11
CENTER, GEARSHIFT DRUM
$55.71¢27 853
1
#8
24315-HA0-000
PIN, SHIFTER
$13.45¢6 727
1
#9
24321-MEB-670
SHIFTER, DRUM
$43.32¢21 660
1
#10
24322-MM4-000
COLLAR, SHIFTER
$5.70¢2 852
1
#11
24324-KA3-711
PAWL A, RATCHET
$14.24¢7 119
1
#12
24325-KA3-711
PAWL B, RATCHET
$14.24¢7 119
1
#13
24326-KBH-901
PLUNGER, PAWL
$6.49¢3 243
1
#14
24328-KRN-A40
PLATE, GUIDE
$16.08¢8 038
1
#15
24329-KA3-740
SPRING, PAWL PLUNGER
$3.36¢1 679
1
#16
24430-KRN-B10
STOPPER, GEARSHIFT DRUM
$22.44¢11 218
1
#17
24435-KZ4-690
SPRING, DRUM STOPPER
$5.81¢2 904
1
#18
24610-KRN-A41
SPINDLE, GEARSHIFT
$76.75¢38 375
1
#19
24651-MEB-670
SPRING, GEARSHIFT RETURN
No Disponible
1
#20
24652-KRN-A40
PIN, GEARSHIFT RETURN SPRING
$5.43¢2 714
1
#21
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$2.94¢1 472
1
#22
90071-MF5-000
BOLT, FLANGE SOCKET (6X14)
$3.74¢1 869
1
#23
90435-HB3-000
WASHER (6.1MM)
$3.36¢1 679
1
#24
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#25
90451-155-000
WASHER (14MM)
$4.22¢2 110
1
#26
91004-KY4-900
BEARING, RADIAL BALL (6905U)
$24.44¢12 219
1
#27
93301-06016-0A
BOLT, HEX. (6X16)
$1.74¢868
1
#28
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#29
96220-40080
ROLLER (4X8)
$0.60¢299
1
