SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

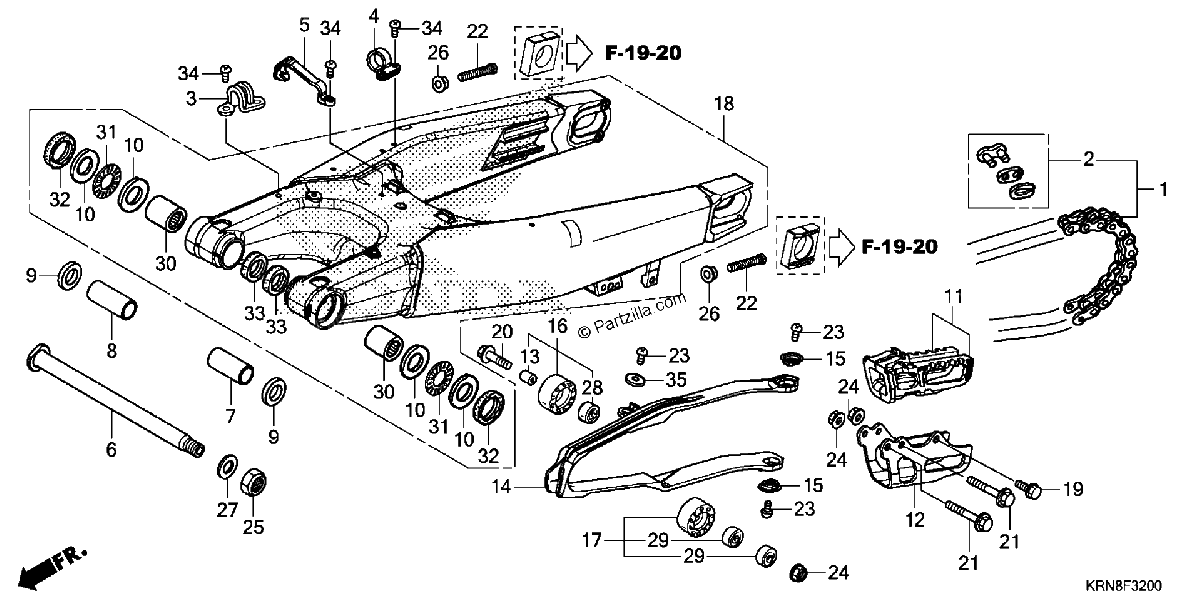

Diagrama de SWINGARM

Repuestos

#1
40530-MEN-A31
CHAIN, DRIVE (DID520DMA4-116RB) (DAIDO)
$187.53¢93 765
1
#1
40530-MEN-A32
CHAIN, DRIVE (RK520TXZ-116RJ) (RK EXCEL)
$187.53¢93 765
1
#1
40540-KRN-A31
CHAIN, DRIVE (DID520DMA4-120RB) (DAIDO)
$257.81¢128 903
1
#1
40540-KRN-A32
CHAIN, DRIVE (RK520TXZ-120RJ) (RK EXCEL)
$243.12¢121 561
1
#2
40531-KRN-A12
MASTER LINK (RK EXCEL)
$9.29¢4 646
1
#2
40531-KRN-A31
MASTER LINK (DAIDO)
$9.33¢4 663
1
#3
43468-KRN-A90
GUIDE, BRAKE HOSE
$10.29¢5 146
1
#4
43468-KRN-C90
GUIDE A, BRAKE HOSE
$4.91¢2 455
1
#5
43469-KRN-A90
GUIDE B, BRAKE HOSE
$7.11¢3 553
1
#6
52101-KZ4-J40
SHAFT, SWINGARM PIVOT
$27.32¢13 662
1
#7
52141-MEN-A70
COLLAR, SWINGARM (47.6MM)
$28.13¢14 064
1
#8
52142-MEN-A70
COLLAR, SWINGARM (52.4MM)
$26.79¢13 397
1
#9
52143-KZ4-J40
COLLAR, SWINGARM PIVOT SIDE
$4.58¢2 289
1
#10
52143-MEN-A30
WASHER, SWINGARM SIDE THRUST
$2.28¢1 138
1
#11
52146-MEN-A50
GUIDE SET, CHAIN
$42.91¢21 453
1
#12
52147-MEN-J00
PLATE, CHAIN GUIDE
$50.62¢25 312
1
#13
52160-MEN-000
COLLAR, CHAIN TENSIONER
$3.22¢1 610
1
#14
52170-KRN-A90
SLIDER, CHAIN
$89.47¢44 735
1
#15
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#16
52175-KRN-A90
ROLLER, CHAIN (36MM)
$71.45¢35 725
1
#17
52176-KRN-A30
ROLLER, CHAIN (LOWER) (34MM)
$49.36¢24 679
1
#18
52200-MEN-A70
SWINGARM SUB-ASSY., RR.
$1425.11¢712 557
1
#19
90101-MEN-A60
BOLT (6X12)
$2.60¢1 299
1
#20
90101-MEN-A70
BOLT, FLANGE (8X32)
$3.90¢1 949
1
#21
90103-MEN-A60
BOLT (6X45)
$3.68¢1 840
1
#22
90105-MEN-000
BOLT, HEX. (8X47.5)
$3.36¢1 679
1
#23
90115-KV3-700
SCREW, PAN (5X8)
$3.09¢1 547
1
#24
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.54¢2 271
1
#25
90305-KZ3-B01
NUT, U HEX. (14MM)
$6.49¢3 243
1
#26
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#27
90501-GBL-730
WASHER (14MM)
$7.41¢3 703
1
#27
90501-GAH-000
WASHER (26X14X2.8)
$7.41¢3 703
1
#28
91051-KRN-A31
BEARING, RADIAL BALL (608UU)
$15.71¢7 855
1
#29
91051-KRN-A31
BEARING, RADIAL BALL (608UU)
$15.71¢7 855
1
#30
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
1
#30
91071-MJ0-004
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
1
#31
91072-KZ3-861
BEARING, NEEDLE THRUST
$14.37¢7 187
1
#32
91253-KZ3-861
DUST SEAL (30X37X4)
$9.34¢4 669
1
#33
91283-ML7-003
DUST SEAL (22X29X4) (ARAI)
$6.60¢3 301
1
#34
93500-05008-0G
SCREW, PAN (5X8)
$1.07¢535
1
#35
94103-05700
WASHER, PLAIN (5MM)
$1.12¢558
1
