SHELTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

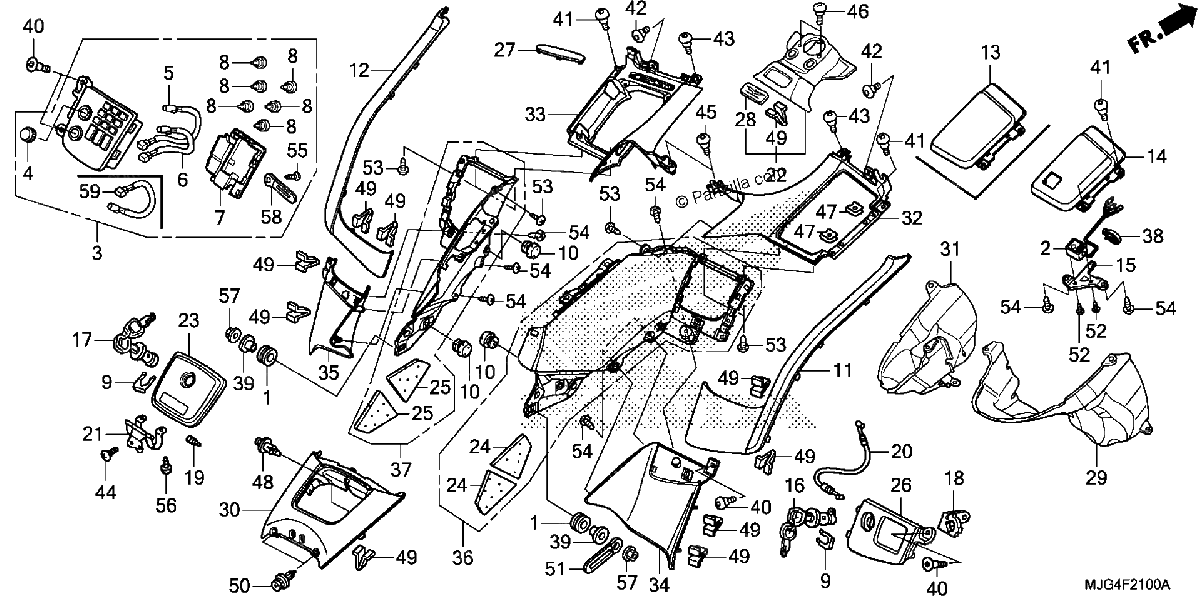

Diagrama de SHELTER

Repuestos

#1
33712-KT1-670
RUBBER, TAILLIGHT
$5.42¢2 713
1
#3
35600-MJG-A11
SWITCH ASSY., AUDIO HAZARD
$900.86¢450 431
1
#4
35601-MCA-A81
KNOB, MODE SELECT
$12.89¢6 444
1
#5
35602-MCA-A81
(VOLUME ORNAMENT)
$13.34¢6 669
1
#6
35603-MCA-A81
(MODE ORNAMENT)
$13.34¢6 669
1
#7
35610-MCA-A81
COVER
$18.85¢9 425
1
#8
35902-MCA-A70
BULB
$14.13¢7 063
1
#9
37222-MCA-000
SPRING, LOCK KEY SETTING
$4.51¢2 256
1
#10
61112-727-000
RUBBER, TENSIONER ARM
$3.86¢1 931
1
#11
64204-MCA-S40ZA
MOLDING, R. COWL TRIM *NH1* (BLACK)
$27.45¢13 725
1
#12
64214-MCA-S40ZA
MOLDING, L. COWL TRIM *NH1* (BLACK)
$27.45¢13 725
1
#13
64415-MJG-670
COVER, Right Front SHELTER
$108.46¢54 231
1
#16
77233-MCA-003
LOCK ASSY., POCKET LID
$84.43¢42 213
1
#17
77234-MCA-003
LOCK ASSY., FUEL LID
$108.77¢54 387
1
#18
77236-MCA-S40
PLATE, POCKET LOCK
$8.43¢4 213
1
#19
83132-MN5-000
RUBBER, SHELTER LID
$3.08¢1 538
1
#20
83133-MCA-S40
CABLE, POCKET LOCK
$14.69¢7 344
1
#21
83140-MCA-000
HINGE
$150.25¢75 125
1
#22
83150-MCA-S40ZA
CENTER ASSY., FR. SHELTER *NH1* (BLACK)
$129.49¢64 744
1
#23
83153-MCA-S40ZM
LID, SHELTER *NH389M* (MAT BULLET SILVER)
$40.20¢20 100
1
#24
83154-MCA-S40
MAT, R. TOP SHELTER
$15.38¢7 688
1
#25
83159-MCA-S40
MAT, L. TOP SHELTER
$15.38¢7 688
1
#26
83160-MCA-000
PANEL, R. SHELTER SWITCH
$29.02¢14 513
1
#27
83161-MCA-H50ZA
CAP, Front SHELTER NH1 (BLACK)
$143.10¢71 550
1
#28
83162-MCA-000
EMBLEM, GOLD WING
$43.84¢21 919
1
#29
83165-MCA-A60
COVER, R. SHELTER (INNER)
$50.58¢25 288
1
#30
83173-MCA-S40ZN
SHELTER, CENTER TOP NH389M (MAT BULLET SILVER)
$131.15¢65 575
1
#31
83175-MCA-A60
COVER, L. SHELTER (INNER)
$50.58¢25 288
1
#32
83177-MCA-S40ZA
SHELTER, R. FR. *NH1* (BLACK)
$277.98¢138 988
1
#33
83178-MCA-S40ZA
SHELTER, L. FR. *NH1* (BLACK)
$277.98¢138 988
1
#34
83191-MCA-S40ZC
PANEL, R. SHELTER TOP *NHA86M* (MAT BALLISTIC BLACK)
$49.88¢24 938
1
#35
83192-MCA-S40ZC
PANEL, L. SHELTER TOP *NHA86M* (MAT BALLISTIC BLACK)
$49.88¢24 938
1
#36
83193-MCA-S40ZM
SHELTER SET, Right TOP NH389M (MAT BULLET SILVER)
$634.77¢317 388
1
#37
83194-MCA-S40ZM
SHELTER SET, L. TOP *NH389M* (MAT BULLET SILVER)
$634.77¢317 388
1
#39
90114-MJK-N20
SCREW, TAPPING (4X10)
$2.91¢1 456
1
#39
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
1
#40
90119-MJK-N20
SCREW, SPECIAL (5X14.5)
$3.30¢1 650
1
#41
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#42
90106-MM4-000
SCREW, PAN (6X14)
$4.71¢2 356
1
#43
90113-MM5-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#44
90115-KW7-900
SCREW, VISOR SPECIAL SETTING
$2.68¢1 338
1
#45
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.65¢1 825
1
#46
90150-GBT-600
SCREW, PAN (5X18)
$2.59¢1 294
1
#47
90320-GE2-760
NUT, SPRING (5MM)
$2.54¢1 269
1
#48
90602-GCT-000
RIVET, PUSH (6MM)
$1.19¢594
1
#49
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$1.01¢506
1
#50
90683-MBW-003
CLIP, BODY
$2.51¢1 256
1
#51
91413-679-000
CLIP (2X70)
$10.81¢5 406
1
#54
90120-MJK-N20
SCREW, TAPPING (4X12)
$2.91¢1 456
1
#55
93911-24110
SCREW, TAPPING (4X10) (PO)
$0.86¢431
1
#56
93913-24380
SCREW, TAPPING (4X12) (PO)
$1.16¢581
1
#57
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#58
94591-44000
CLIP (4X40)
$2.97¢1 487
1
#59
35604-MCA-A81
(FOR HAZARD SW)
$13.34¢6 669
1
