MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

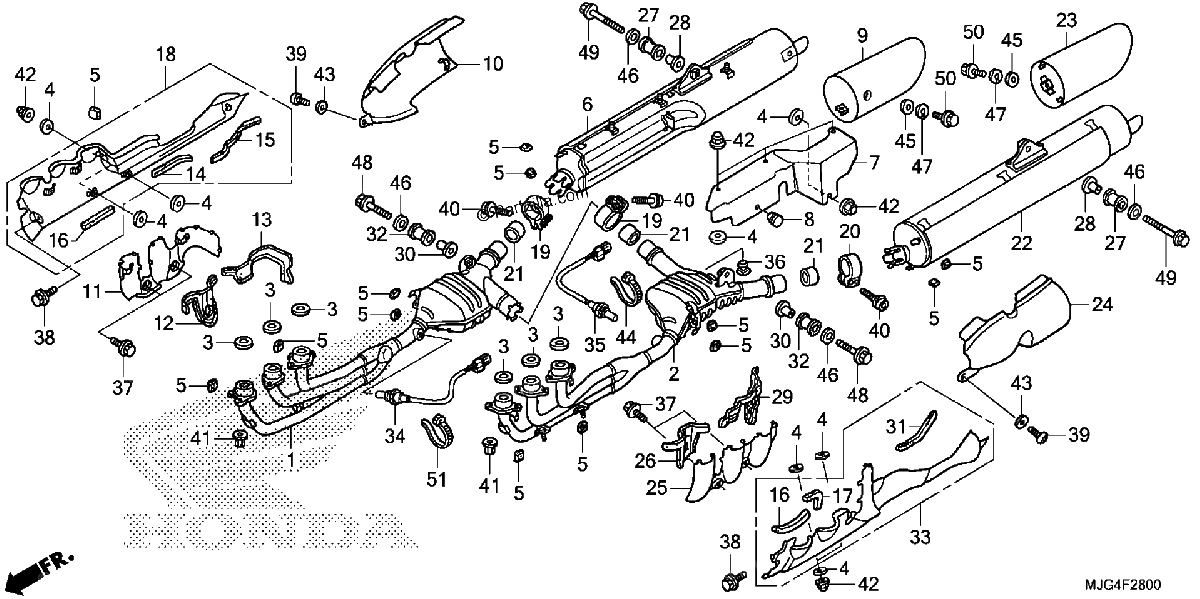

Diagrama de MUFFLER

Repuestos

#1
18150-MJG-A10
PIPE, Right EX.
$1486.16¢743 078
1
#2
18250-MJG-A10
PIPE, L. EX.
$1553.18¢776 589
1
#3
18291-MN5-650
GASKET, EX. PIPE
$4.21¢2 105
1
#4
18293-MCA-780
GASKET, PROTECTOR
$5.40¢2 702
1
#5
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#6
18305-MJG-305
MUFFLER, Right. (COO)
$1217.46¢608 730
1
#7
18313-MCA-A20
PLATE, MUFFLER
$85.48¢42 740
1
#8
18314-MCA-A20
GROMMET, MUFFLER COVER
$1.48¢742
1
#9
18316-MJG-306
TAILPIECE, R. (COO)
$269.16¢134 579
1
#10
18317-MJK-G40
PROTECTOR, R. RR. EX. PIPE
$166.93¢83 467
1
#11
18318-MJG-A10
PROTECTOR, Right Front EX PIPE (B)
$74.81¢37 404
1
#12
18321-MCA-000
RUBBER A, R. HEAT GUARD
$24.09¢12 046
1
#13
18323-MCA-000
RUBBER B, R. HEAT GUARD
$22.17¢11 086
1
#14
18329-MCA-A20
RUBBER C
$3.92¢1 961
1
#15
18332-MCA-A20
RUBBER D
$7.31¢3 657
1
#16
18333-MCA-000
PROTECTOR, HEAT
$5.57¢2 783
1
#17
18338-MCA-000
PROTECTOR, HEAT SUB
$4.58¢2 289
1
#18
18355-MCA-A20ZB
PROTECTOR ASSY., R. EX. *NHA86M* (MAT BALLISTIC BLACK)
$252.77¢126 385
1
#19
18376-MT3-000
BAND, R. MUFFLER
$32.90¢16 451
1
#20
18377-MT3-000
BAND, L. MUFFLER
$32.90¢16 451
1
#21
18392-MCA-S40
GASKET, MUFFLER (43MM)
$19.42¢9 712
1
#22
18405-MJG-305
MUFFLER, Left (COO)
$1238.38¢619 189
1
#23
18416-MJG-306
TAILPIECE, L. (COO)
$269.16¢134 579
1
#24
18417-MJK-G40
PROTECTOR, L. RR. EX. PIPE
$166.93¢83 467
1
#25
18418-MJG-A10
PROTECTOR, L Front EX PIPE (B)
$74.81¢37 404
1
#26
18421-MCA-000
RUBBER A, L HEAT GUARD
$24.09¢12 046
1
#27
18421-MN5-000
RUBBER, MUFFLER MOUNTING
$5.70¢2 852
1
#28
18422-MN5-000
COLLAR, MUFFLER MOUNTING
$10.73¢5 365
1
#29
18423-MCA-000
RUBBER B, L. HEAT GUARD
$32.88¢16 439
1
#30
18424-MN5-000
COLLAR, CHAMBER MOUNTING
$9.19¢4 594
1
#31
18429-MCA-A20
RUBBER E
$7.31¢3 657
1
#32
18441-MCA-A20
RUBBER, EX. PIPE
$7.79¢3 893
1
#33
18455-MCA-A20ZB
PROTECTOR Assembly., L EX. NHA86M (MAT BALLISTIC BLACK)
$252.77¢126 385
1
#34
36531-MCA-R31
SENSOR, OXYGEN (#1-3-5)
$319.25¢159 626
1
#35
36532-MCA-R31
SENSOR, OXYGEN (#2-4-6)
$319.32¢159 660
1
#36
50524-MG9-000
RUBBER, STAND STOPPER
$7.52¢3 760
1
#37
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.45¢1 725
1
#38
90011-HN0-A00
BOLT, FLANGE (6X10)
$1.51¢753
1
#39
90112-MCA-000
BOLT, SPECIAL (6X12)
$2.38¢1 190
1
#40
90130-MCA-000
BOLT, FLANGE SOCKET (8X35)
$3.36¢1 679
1
#41
90304-HB3-771
NUT, SPECIAL (6MM)
$6.76¢3 381
1
#42
90308-MT8-000
NUT, CAP (6MM)
$3.21¢1 604
1
#43
90545-323-700
WASHER (6.5X18)
$2.36¢1 179
1
#44
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#45
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#45
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#45
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#46
94103-08000
WASHER, PLAIN (8MM)
$0.77¢385
1
#47
94111-06000
WASHER, SPRING (6MM)
$1.12¢558
1
#48
95701-08045-00
BOLT, FLANGE (8X45)
$1.74¢868
1
#49
95701-08055-02
BOLT, FLANGE (8X55)
$2.83¢1 414
1
#50
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#51
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
