FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

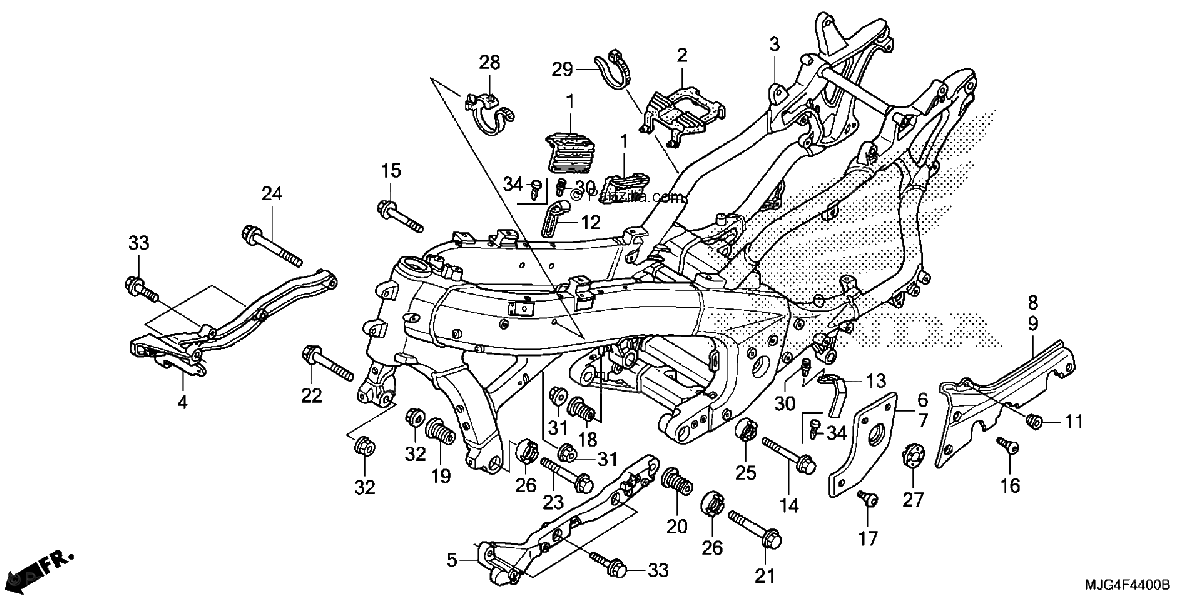

Diagrama de FRAME

Repuestos

#1
17611-MCA-S40
CUSHION, FR. FUEL TANK
$20.41¢10 206
1
#2
17614-MCA-S40
CUSHION, FUEL TANK CENTER
$16.27¢8 137
1
#3
50100-MCA-S40ZB
FRAME *NHA86M* (MAT BALLISTIC BLACK)
$9374.29¢4 687 144
1
#4
50351-MCA-S40
BEAM, R. ENGINE SUPPORT
$192.70¢96 350
1
#5
50352-MCA-S40
BEAM, L. ENGINE SUPPORT
$225.00¢112 500
1
#6
50410-MCA-000ZB
COVER, R. PIVOT PLATE *NH1* (BLACK)
$9.65¢4 825
1
#7
50415-MCA-000ZB
COVER, L. PIVOT PLATE *NH1* (BLACK)
$13.43¢6 713
1
#8
50740-MCA-000ZC
COVER, R. PILLION STEP HOLDER *NHA86M* (MAT BALLISTIC BLACK)
$134.01¢67 006
1
#9
50741-MCA-000ZC
COVER, L. PILLION STEP HOLDER *NHA86M* (MAT BALLISTIC BLACK)
$134.01¢67 006
1
#11
83501-MG7-000
GROMMET, SIDE COVER
$3.36¢1 681
1
#14
90101-KK6-000
BOLT, FLANGE (10X85)
$9.36¢4 681
1
#15
90101-MBB-000
BOLT, FLANGE (10X62)
$4.89¢2 444
1
#16
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#17
90112-MBS-000
SCREW, PAN (5X13)
$3.11¢1 556
1
#18
90116-MCA-000
BOLT, ADJUSTING (M20-43.5)
$18.10¢9 050
1
#19
90117-MCA-000
BOLT, ADJUSTING (M22-47)
$21.76¢10 881
1
#20
90126-MCA-000
BOLT, ADJUSTING (M22-40)
$13.88¢6 938
1
#21
90127-MCA-000
BOLT, FLANGE (12X92)
$6.39¢3 194
1
#22
90128-MCA-000
BOLT, FLANGE (12X72)
$15.41¢7 706
1
#23
90129-MCA-000
BOLT, FLANGE (12X92)
$15.60¢7 800
1
#24
90166-SZ3-000
BOLT, FLANGE (12X84)
$16.85¢8 425
1
#25
90201-MW0-000
NUT, LOCK (20MM)
$12.61¢6 306
1
#26
90310-MCA-010
NUT, LOCK
$12.70¢6 350
1
#27
90312-MCA-000
CAP, PIVOT
$9.39¢4 694
1
#28
90649-SC2-003
BAND, WIRE HARNESS (150MM) (NATURAL)
$7.04¢3 519
1
#29
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#31
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#32
94050-12000
NUT, FLANGE (12MM)
$1.27¢638
1
#33
96300-10040-00
BOLT, FLANGE (10X40)
$3.65¢1 825
1
#34
32172-GF9-621
CLIP, CANOE
$2.70¢1 350
1
