HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

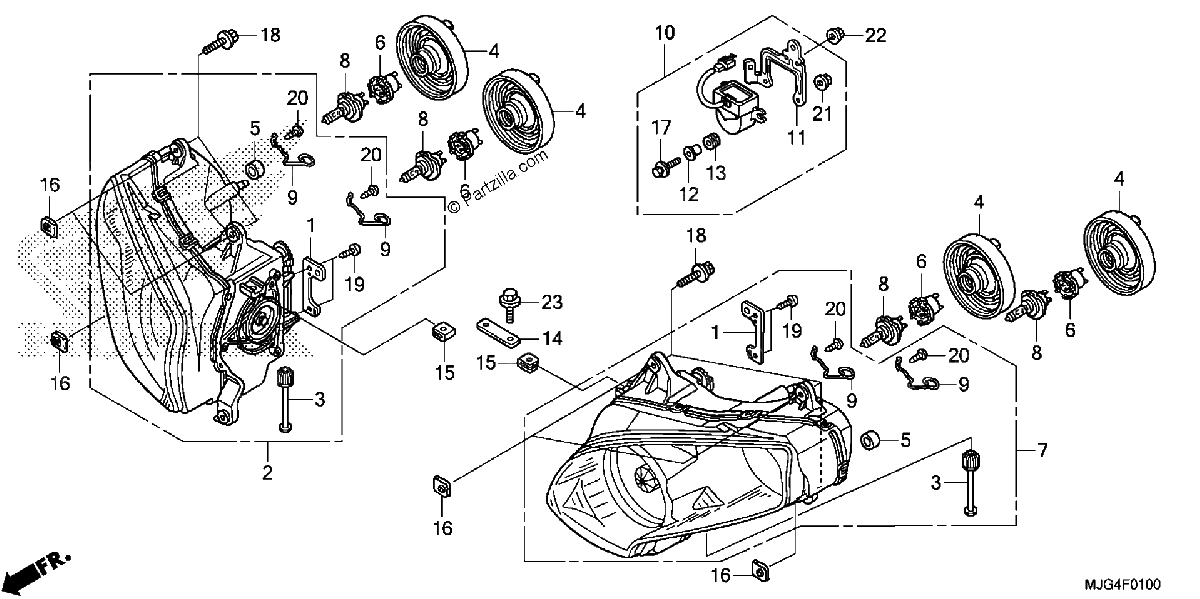

Diagrama de HEADLIGHT

Repuestos

#1
33101-MCA-A61
PLATE
$9.98¢4 988
1
#2
33102-MJG-305
HEADLIGHT UNIT, Right. (COO)
$521.95¢260 975
1
#3
33103-MCA-003
SCREW, BEAM ADJUST
$12.07¢6 038
1
#4
33112-KPB-003
COVER, RUBBER
$15.39¢7 694
1
#5
33113-MBW-D21
PIPE, CP
$3.40¢1 700
1
#6
33130-MAT-611
SOCKET, HEADLIGHT
$19.29¢9 644
1
#7
33152-MJG-305
HEADLIGHT UNIT, L. (COO)
$521.95¢260 975
1
#8
34901-MAT-611
BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)
$31.81¢15 906
1
#9
34904-MCA-A61
SPRING, SUPPORTER
$5.70¢2 850
1
#10
35160-MCA-S42
SENSOR ASSY., BANK ANGLE
$189.42¢94 712
1
#11
35162-MCA-A61
PLATE, BANK ANGLE SENSOR
$4.68¢2 338
1
#12
35162-MN5-003
COLLAR
$8.80¢4 400
1
#13
35163-MN5-003
GROMMET
$3.81¢1 906
1
#14
64516-MCA-000
PLATE, HEADLIGHT (UPPER)
$4.97¢2 488
1
#15
90301-SM4-901
NUT, SPRING (6MM)
$7.81¢3 906
1
#16
90305-SM4-000
NUT, AIR SPOILER CLIP
$6.06¢3 031
1
#17
93401-04025-08
BOLT-WASHER (4X25)
$0.86¢431
1
#18
93404-06025-08
BOLT-WASHER (6X25)
$2.40¢1 200
1
#19
93901-34320
SCREW, TAPPING (4X12)
$1.10¢550
1
#20
93903-34210
SCREW, TAPPING (4X10)
$1.16¢581
1
#21
94050-04000
NUT, FLANGE (4MM)
$1.57¢788
1
#22
94050-05080
NUT, FLANGE (5MM)
$0.45¢225
1
#23
96001-06018-00
BOLT, FLANGE (6X18)
$2.21¢1 106
1
