AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

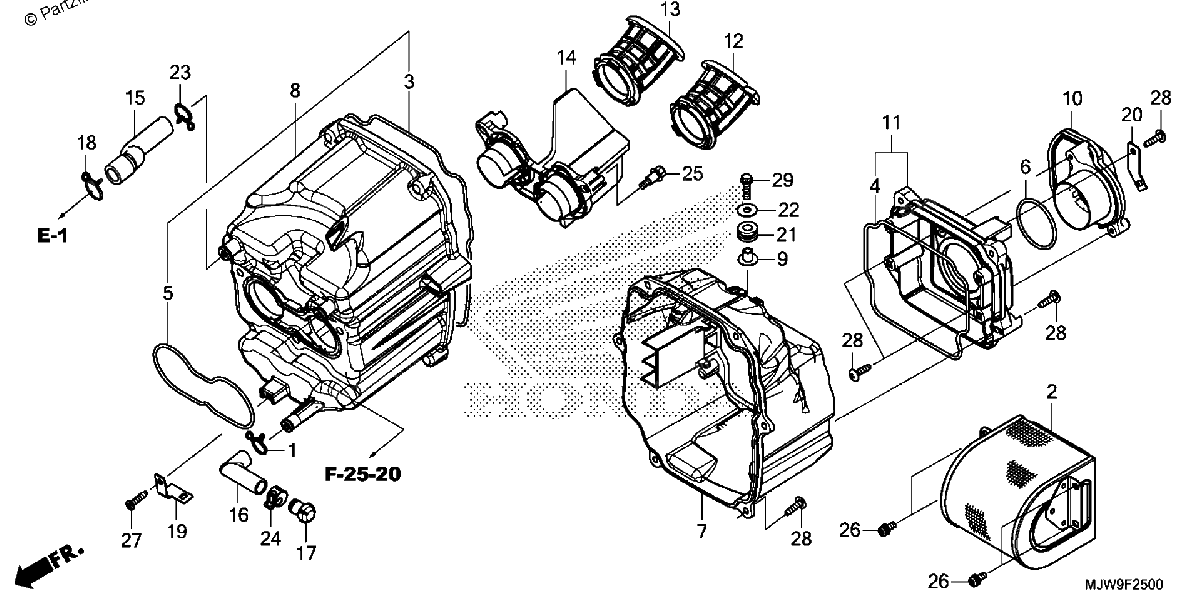

Diagrama de AIR CLEANER

Repuestos

#1
15771-KV6-000
CLIP, OIL DRAIN TUBE
$4.53¢2 263
1
#2
17211-MJW-J00
ELEMENT, AIR CLEANER
$23.20¢11 600
1
#3
17213-MGZ-D00
SEAL, AIR CLEANER
$3.89¢1 944
1
#4
17214-MGZ-D00
SEAL, AIR CLEANER LID
$2.31¢1 156
1
#5
17215-MGZ-D00
SEAL, THROTTLE BODY
$2.30¢1 150
1
#6
17216-MGZ-D00
SEAL, AIR CLEANER DUCT
$2.27¢1 138
1
#7
17220-MGZ-D00
COVER, AIR CLEANER
$20.67¢10 337
1
#8
17225-MGZ-D00
CASE SUB-ASSY., AIR CLEANER
$40.39¢20 194
1
#9
17232-KYJ-900
COLLAR, AIR CLEANER MOUNTING
$1.13¢563
1
#10
17240-MJW-J00
DUCT, AIR CLEANER
$7.31¢3 656
1
#11
17245-MGZ-D01
LID SUB-ASSY., AIR CLEANER
$12.89¢6 444
1
#12
17251-MGZ-A00
FUNNEL, L. AIR
$14.47¢7 238
1
#13
17252-MGZ-A00
FUNNEL, R. AIR
$14.47¢7 238
1
#14
17253-MGZ-D00
FUNNEL, AIR
$10.96¢5 481
1
#15
17265-MGZ-D00
TUBE, BREATHER
$6.83¢3 413
1
#16
17366-428-670
TUBE A, DRAIN
$10.80¢5 400
1
#17
17370-382-870
PLUG, BREATHER TUBE
$4.54¢2 269
1
#18
17724-102-700
CLIP, SUB-TANK HOSE
$5.31¢2 656
1
#19
32150-MGZ-J00
STAY, ENGINE SUB-HARNESS
$2.38¢1 188
1
#20
32207-MGZ-J00
STAY, HARNESS
$1.09¢544
1
#21
83545-KCJ-690
RUBBER, SIDE COVER
$1.80¢900
1
#22
90538-KSH-900
WASHER, SPECIAL (6MM)
$0.68¢338
1
#23
90646-657-000
CLIP, AIR HOSE (16MM)
$8.89¢4 444
1
#24
91406-MS8-000
CLAMP, TUBE (D14.5)
$4.71¢2 356
1
#25
91508-MGP-D00
SCREW, PAN (5MM)
$4.84¢2 419
1
#26
93893-05012-08
SCREW-WASHER (5X12)
$1.72¢862
1
#27
93901-25320
SCREW, TAPPING (5X16)
$0.65¢325
1
#28
93903-25480
SCREW, TAPPING (5X20)
$0.86¢431
1
#29
96001-06020-04
BOLT, FLANGE (6X20)
$1.21¢606
1
