TRANSMISSION MAINSHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

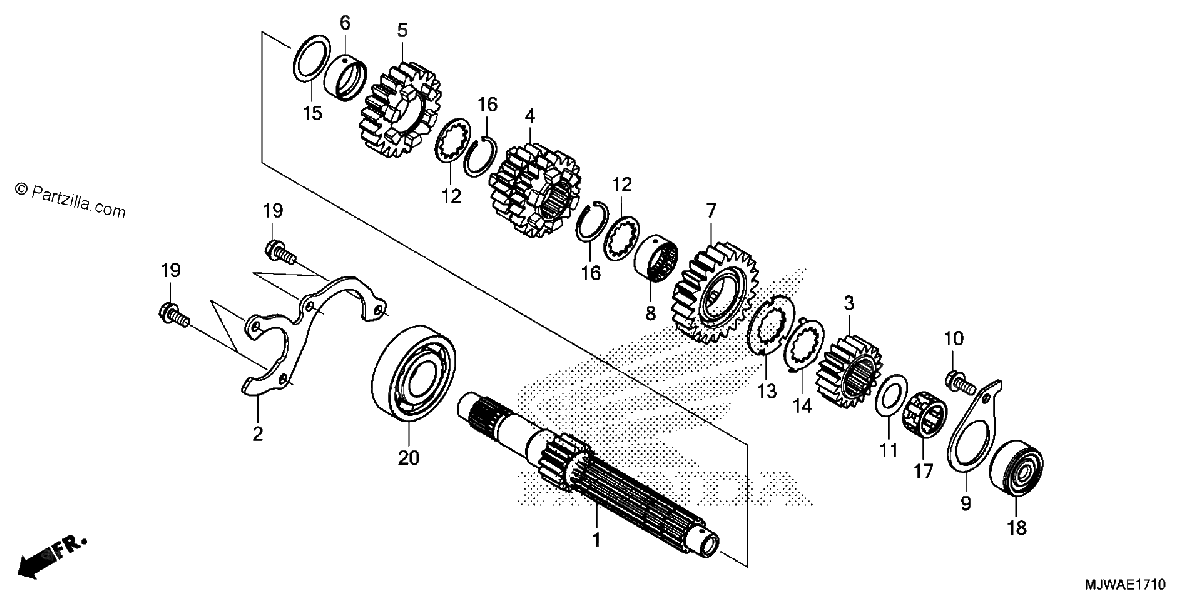

Diagrama de TRANSMISSION MAINSHAFT

Repuestos

#1
23211-MGZ-J00
MAINSHAFT (14T)
$83.42¢41 713
1
#2
23212-MGZ-J00
PLATE, BEARING SETTING
$17.13¢8 563
1
#3
23431-MGZ-J01
GEAR, MAINSHAFT SECOND (19T)
$44.06¢22 031
1
#4
23451-MGZ-J00
GEAR, MAINSHAFT THIRD & FOURTH(20T/20T)
$117.46¢58 731
1
#5
23491-MGZ-J00
GEAR, MAINSHAFT FIFTH (20T)
$62.02¢31 013
1
#6
23492-MGZ-J00
COLLAR (25X28X12)
$17.24¢8 619
1
#7
23511-MGZ-J00
GEAR, MAINSHAFT SIXTH (23T)
$62.95¢31 475
1
#8
23512-MV9-670
COLLAR, SPLINE (25X28X13)
$34.91¢17 456
1
#9
23531-MGZ-J00
PLATE, BEARING SETTING
$6.29¢3 144
1
#10
90005-MGZ-J00
BOLT, FLANGE (6X14)
$1.27¢638
1
#11
90403-KE7-000
WASHER, THRUST (17.2MM)
$5.16¢2 581
1
#12
90451-KY2-000
WASHER, SPLINE (25X31X1.5)
$4.63¢2 313
1
#13
90454-KYJ-900
WASHER, SPLINE (25X42X1.6)
$1.90¢950
1
#14
90455-KYJ-900
WASHER, LOCK (25MM)
$40.38¢20 188
1
#15
90456-MA6-000
WASHER, THRUST (25MM)
$3.26¢1 631
1
#16
90601-107-000
CIRCLIP (25MM)
$4.54¢2 269
1
#17
91022-MN4-003
BEARING, NEEDLE (17X27X14.8) (TOYO)
$12.98¢6 488
1
#18
91023-MN4-003
OUTER, NEEDLE BEARING
$20.76¢10 381
1
#19
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#20
96100-63050-00
BEARING, RADIAL BALL (6305)
$17.74¢8 869
1
