HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

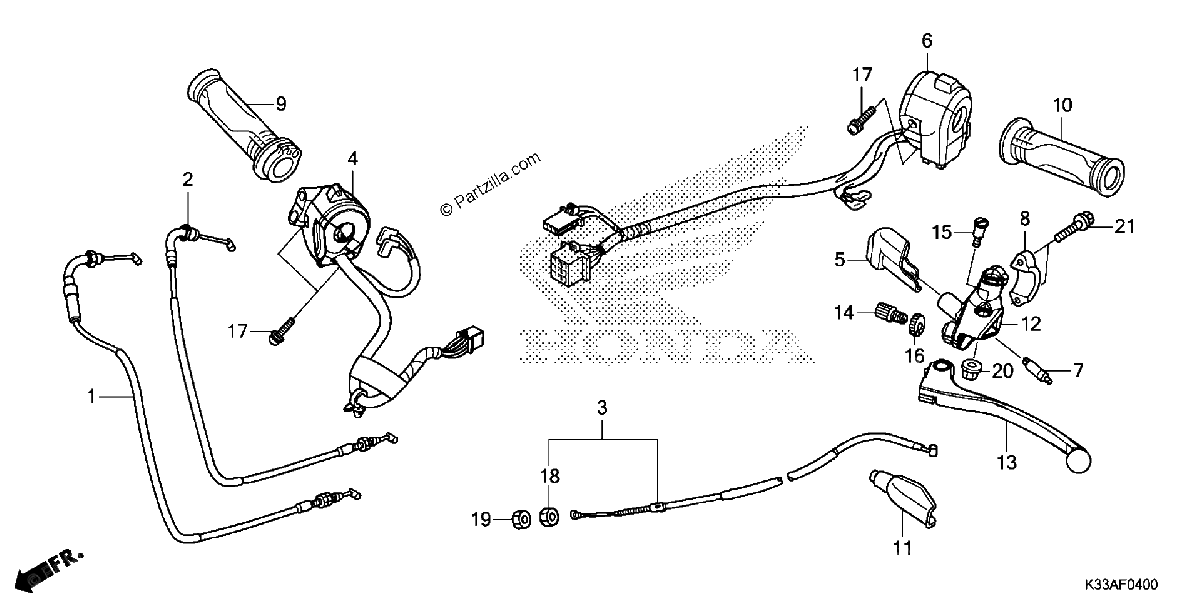

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-K33-700
CABLE A, THROTTLE
$18.65¢9 325
1
#2
17920-K33-700
CABLE B, THROTTLE
$17.66¢8 831
1
#3
22870-K33-700
CABLE, CLUTCH
$12.31¢6 156
1
#4
35130-K33-701
SWITCH ASSY., STARTER ENGINE STOP
$62.02¢31 013
1
#5
35152-KRY-970
COVER, CLUTCH SWITCH
$11.74¢5 869
1
#6
35200-K33-651
SWITCH ASSY., TURN SIGNAL
$126.68¢63 338
1
#7
35330-KYJ-901
SWITCH, Front LEVER
$8.01¢4 006
1
#8
45517-KCW-870
HOLDER, MASTER CYLINDER
$12.66¢6 331
1
#9
53140-KYJ-305
GRIP, THROTTLE (COO)
$11.83¢5 913
1
#9
53140-KYJ-900
GRIP, THROTTLE
$11.83¢5 913
1
#10
53166-KYJ-305
GRIP, L. HANDLE (COO)
$6.88¢3 438
1
#10
53166-KYJ-900
GRIP, L. HANDLE
$6.88¢3 438
1
#11
53172-402-700
COVER, L HANDLE LEVER
$8.73¢4 363
1
#12
53172-KYJ-900
BRACKET, HANDLE LEVER
$16.26¢8 131
1
#13
53178-MAH-000
LEVER, L HANDLE
$22.65¢11 325
1
#13
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$22.65¢11 325
1
#14
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#15
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#16
90321-315-670
NUT, FIXING
$8.86¢4 431
1
#17
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.64¢319
1
#18
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#19
94030-08000
NUT, HEX. (8MM)
$1.38¢688
1
#20
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#21
96001-06022-07
BOLT, FLANGE (6X22)
$2.38¢1 188
1
