MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

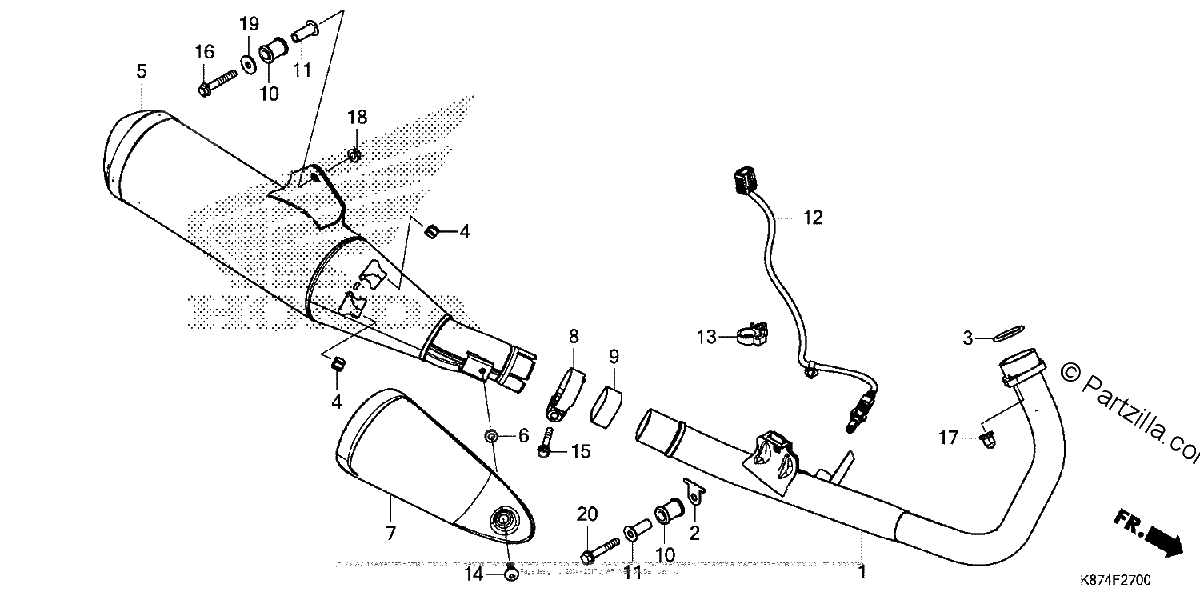

Diagrama de MUFFLER

Repuestos

#1
18150-K87-A00
PIPE, EX.
$199.18¢99 588
1
#2
18155-K87-A00
PLATE, EX.
$5.83¢2 913
1
#3
18291-MEB-670
GASKET, EX. PIPE
$5.96¢2 981
1
#4
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#5
18310-K87-A00
MUFFLER
$838.59¢419 294
1
#6
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#7
18355-K87-A00
COVER, MUFFLER
$30.27¢15 138
1
#8
18376-MG7-000
BAND, L Rear MUFFLER
$31.48¢15 738
1
#9
18391-MJW-J01
GASKET, MUFFLER
$12.60¢6 300
1
#10
18421-MB0-000
RUBBER, MUFFLER MOUNTING
$7.69¢3 844
1
#11
18422-KAF-700
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#11
18422-MAL-600
COLLAR, MUFFLER MOUNTING
$7.18¢3 588
1
#12
36531-K87-A01
SENSOR, OXYGEN (NGK)
$161.22¢80 613
1
#13
53781-SE0-952
CLIP, RETURN HOSE
$9.75¢4 875
1
#14
90115-K87-A00
SCREW, PAN (6X12)
$1.41¢706
1
#15
90161-MCT-770
BOLT, FLANGE (8X40)
$2.85¢1 425
1
#16
90163-GHB-730
BOLT, FLANGE (8X50)
$1.02¢513
1
#17
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#18
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#19
94103-08700
WASHER, PLAIN (8MM)
$1.21¢606
1
#20
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
