RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

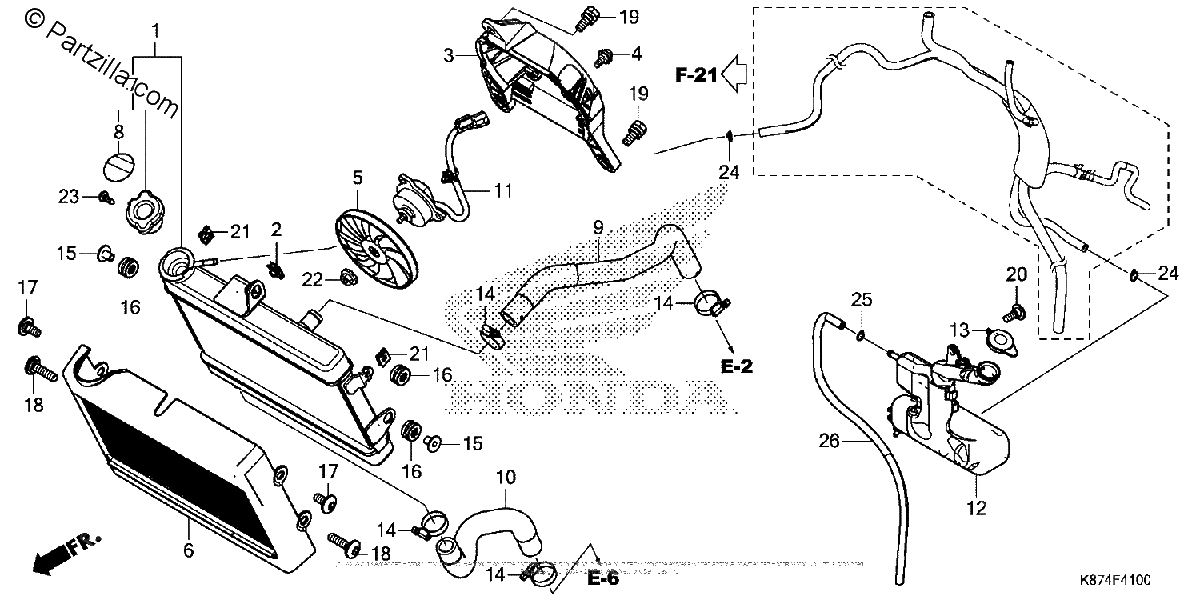

Diagrama de RADIATOR

Repuestos

#1
19010-K87-A01
RADIATOR
$187.59¢93 794
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#3
19015-K87-A01
SHROUD
$13.66¢6 831
1
#4
19016-KEA-003
SCREW, PAN (4X8.5)
$2.09¢1 044
1
#5
19020-KVZ-631
FAN, COOLING
$34.04¢17 019
1
#6
19032-K87-A00
GRILLE, RADIATOR
$25.55¢12 775
1
#7
19037-KZZ-D11
CAP, RADIATOR (TOYO)
$33.94¢16 969
1
#8
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#9
19062-K87-A00
HOSE, RADIATOR (UPPER)
$41.09¢20 544
1
#10
19067-K87-A00
HOSE, RADIATOR (LOWER)
$31.35¢15 675
1
#11
19080-K87-A01
MOTOR ASSY., FAN
$136.58¢68 288
1
#12
19101-K87-A00
TANK, RADIATOR RESERVE
$14.45¢7 225
1
#13
19109-KBP-900
CAP, RESERVE TANK
$2.05¢1 025
1
#14
19517-ML7-691
CLAMP, HOSE (22-29MM)
$13.49¢6 744
1
#15
61102-KTY-D30
COLLAR, RADIATOR MOUNTING
$4.86¢2 431
1
#16
61304-415-000
RUBBER, HEADLIGHT CASE MOUNTING
$4.20¢2 100
1
#17
90111-K87-A00
SCREW, SPECIAL (6X14)
$1.19¢594
1
#18
90112-K87-A00
SCREW, SPECIAL (6X25)
$0.68¢338
1
#19
90120-KCR-003
BOLT-WASHER (6X16)
$5.32¢2 662
1
#20
90134-KPP-T00
SCREW, PAN (5X14)
$1.23¢613
1
#21
90303-MGZ-J40
NUT, CLIP (6MM)
$1.38¢688
1
#22
90315-MFL-003
NUT, FLANGE (3MM)
$2.99¢1 494
1
#23
93901-22020
SCREW, TAPPING (3X6)
$1.16¢581
1
#24
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#25
95002-50000
CLIP, TUBE (C9)
$1.54¢769
1
#26
95005-50003-30M
BULK HOSE, VACUUM (5X3000) (5X300)
$24.39¢12 194
1
