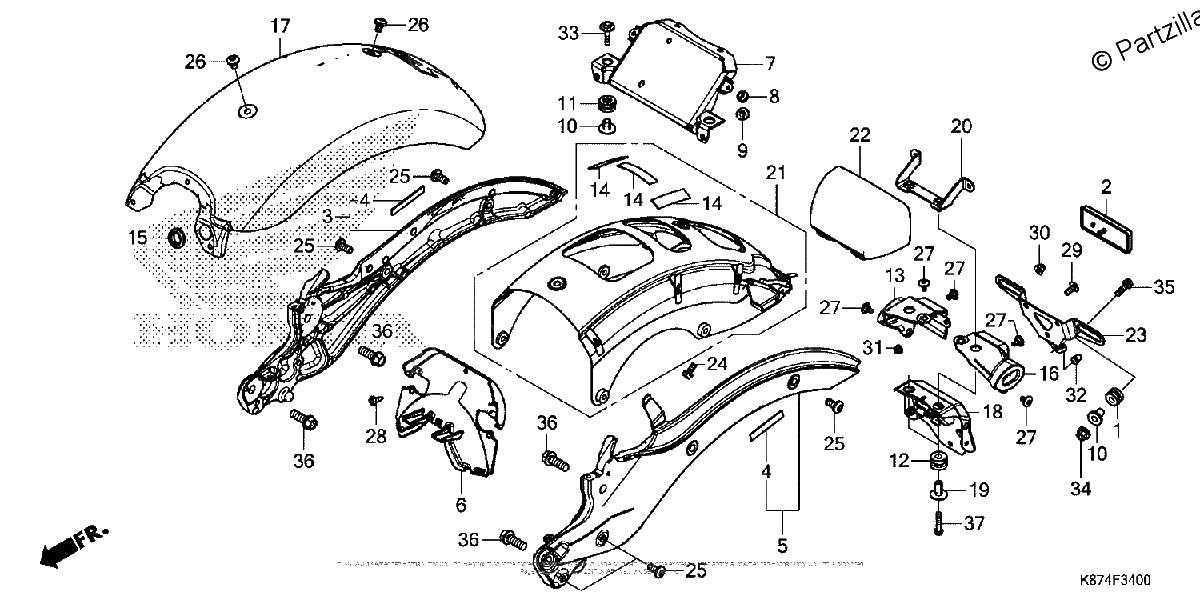

REAR FENDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
#2
REFLECTOR, REFLEX
$8.22¢4 111
#3
FRAME Assembly., Right Rear. NH105 (MAT BLACK)
$204.67¢102 333
#4
RUBBER, RR. FRAME
$1.38¢690
#5
FRAME ASSY., L. RR. *NH105*(MAT BLACK)
$205.62¢102 810
#6
BOX B, BATTERY
$18.37¢9 183
#7
STAY, REGULATOR
$48.32¢24 162
#8
RUBBER, LINK STOPPER
$5.04¢2 519
#9
RUBBER, REGULATOR STAY MOUNTING
$1.79¢897
#10
COLLAR, FR. FENDER
$5.49¢2 743
#11
RUBBER, HEADLIGHT CASE MOUNTING
$3.86¢1 932
#12
RUBBER, SEAT SETTING
$4.38¢2 191
#13
FENDER A, Right Rear.
$7.70¢3 852
#14
RUBBER, Rear FENDER
$2.01¢1 006
#15
RUBBER, TAILLIGHT CODE
$3.42¢1 708
#16
FENDER A, L Rear.
$7.70¢3 852
#17
FENDER SET, RR. (TYPE1) (WL)
$187.24¢93 621
#18
STAY, Rear FENDER
$46.70¢23 351
#19
COLLAR, TAILLIGHT
$1.56¢782
#20
STAY, TAILLIGHT
$12.67¢6 336
#21
PLATE Assembly., Rear FRAME
$512.96¢256 479
#22
COVER, TAILLIGHT
$8.37¢4 186
#23
BRACKET, NUMBER PLATE
$11.29¢5 647
#24
BOLT, FLANGE (6X14)
$0.64¢322
#25
BOLT, SOCKET SPECIAL (8X18)
$0.68¢339
#26
BOLT, SOCKET SPECIAL (8X12)
$0.77¢385
#27
SCREW, SPECIAL (5X11)
$1.17¢586
#28
CLIP, BUMPER SEAL
$5.27¢2 633
#29
SCREW, PAN (6X14)
$1.02¢512
#30
NUT, CAP
$2.64¢1 322
#31
NUT, U (5MM)
$0.79¢397
#32
PLUG, CONE TYPE
$2.36¢1 179
#33
BOLT-WASHER (6X28)
$1.15¢575
#34
NUT, FLANGE (6MM)
$0.74¢368
#35
BOLT, FLANGE (6X22)
$2.13¢1 064
#36
BOLT, FLANGE (10X28)
$1.79¢897
#37
BOLT, FLANGE (6X28)
$2.56¢1 282
