SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

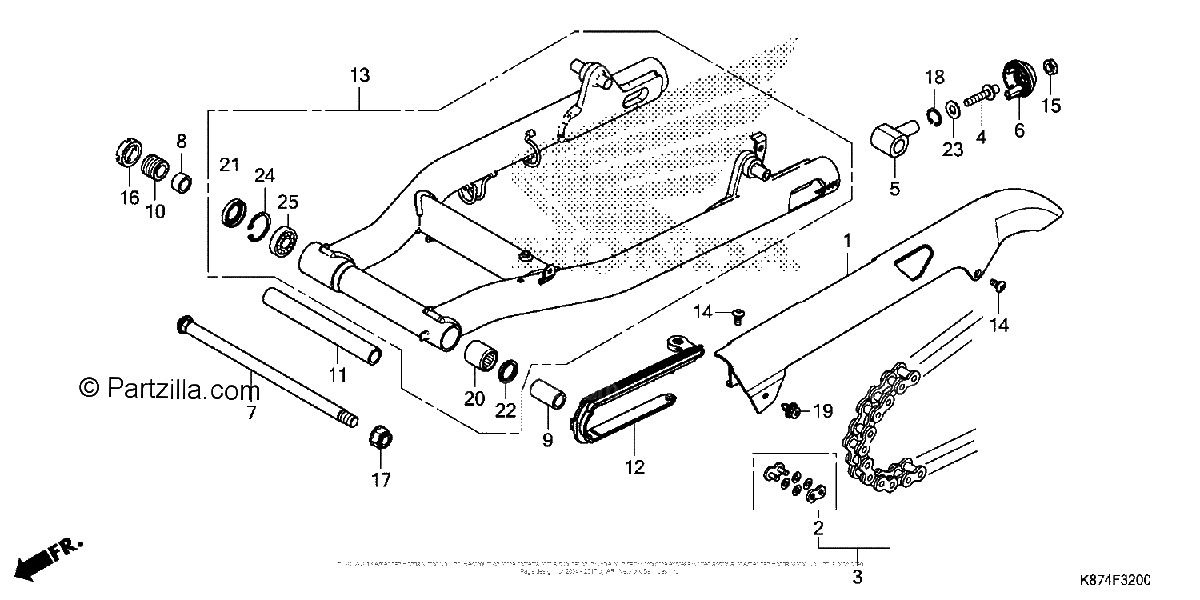

Diagrama de SWINGARM

Repuestos

#1
40510-K87-A00
CASE, DRIVE CHAIN
$12.95¢6 474
1
#2
40531-K87-A01
MASTER LINK (RK)
$23.06¢11 529
1
#2
40545-KYJ-902
MASTER LINK (DAIDO)
$15.55¢7 774
1
#3
40540-K87-A02
CHAIN, DRIVE (RK520KLO2-120LJFZ) (RK) (STANDARD LINK 112L)
$99.60¢49 801
1
#3
40540-KYJ-902
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$148.00¢74 002
1
#4
40542-K87-A00
BOLT, CHAIN ADJUSTING
$2.30¢1 150
1
#5
40543-K87-A00
ADJUSTER, CHAIN
$15.79¢7 895
1
#6
40546-K87-A00
CAP, SWINGARM END
$13.34¢6 670
1
#7
52101-K87-A00
BOLT, SWINGARM PIVOT
$11.99¢5 997
1
#8
52105-K87-A00
COLLAR B, SWINGARM PIVOT
$5.88¢2 938
1
#9
52106-KYJ-900
COLLAR, PIVOT
$14.92¢7 458
1
#10
52109-K87-A00
BOLT, PIVOT ADJUSTING
$8.65¢4 324
1
#11
52141-K87-A00
COLLAR, PIVOT DISTANCE
$12.35¢6 176
1
#12
52170-K87-A00
SLIDER, CHAIN
$8.61¢4 307
1
#13
52200-K87-A00
SWINGARM SUB-Assembly., Rear.
$790.08¢395 042
1
#14
90115-MGZ-J00
SCREW, SPECIAL (6X14)
$1.26¢633
1
#15
90301-K87-A01
NUT, U (10MM)
$2.42¢1 208
1
#16
90302-K87-A00
NUT, LOCK (26X1.5)
$10.33¢5 164
1
#17
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$6.96¢3 479
1
#18
90651-K87-A00
CIRCLIP (INNER) (20)
$1.85¢926
1
#19
90683-MBW-003
CLIP, BODY
$2.31¢1 156
1
#20
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$46.30¢23 149
1
#20
91071-MJ0-004
BEARING, NEEDLE (THOMPSON)
$39.35¢19 676
1
#21
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$8.31¢4 157
1
#21
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$8.31¢4 157
1
#22
91283-ML7-003
DUST SEAL (22X29X4) (ARAI)
$6.60¢3 301
1
#23
94101-10700
WASHER, PLAIN (10MM)
$1.26¢633
1
#24
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
#25
96100-62020-10
BEARING, RADIAL BALL (6202)
$15.59¢7 797
1
