HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

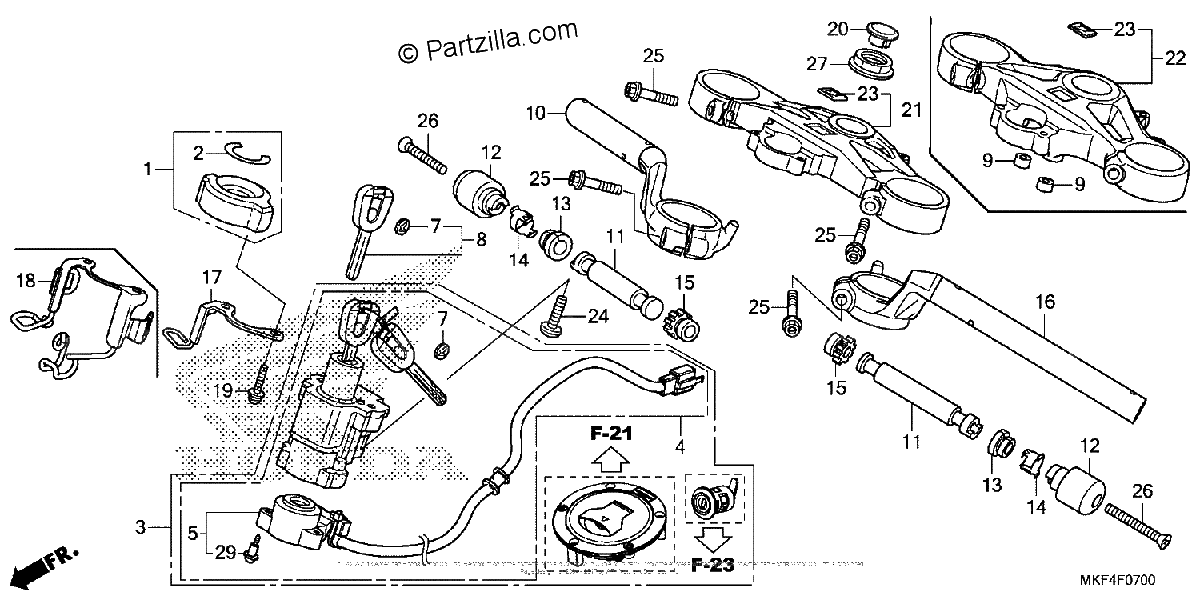

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#001
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#1
35106-MAT-A00
COVER, COMBINATION SWITCH
$12.21¢6 106
1
#002
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#2
30433-MBW-602
SEAL, IGNITION SWITCH
$3.65¢1 825
1
#003
35010-MKF-A20
LOCK SET
No Disponible
1
#3
35010-MKF-A20
LOCK SET
No Disponible
1
#3
35010-MKF-A21
LOCK SET
No Disponible
1
#003
35010-MKF-A21
LOCK SET
No Disponible
1
#003
35010-MKF-A22
LOCK SET
$504.91¢252 456
1
#003
35010-MKF-A23
LOCK SET
No Disponible
1
#003
35010-MKF-A24
LOCK SET
$504.91¢252 456
1
#4
35100-MKF-A21
SWITCH Assembly., COMBINATION & LOCK
$184.81¢92 406
1
#004
35100-MKF-A21
SWITCH Assembly., COMBINATION & LOCK
$184.81¢92 406
1
#004
35100-MKF-A22
SWITCH ASSY., COMBINATION & LOCK
$184.81¢92 406
1
#4
35100-MKF-A22
SWITCH ASSY., COMBINATION & LOCK
$184.81¢92 406
1
#005
35101-MKF-D41
BASE, CONTACT
$106.41¢53 206
1
#5
35101-MKF-D41
BASE, CONTACT
$106.41¢53 206
1
#007
35113-MJK-N20
EMBLEM, KEY
$4.45¢2 225
1
#7
35113-MJK-N20
EMBLEM, KEY
$4.45¢2 225
1
#008
35121-MGP-A93
KEY, BLANK
$27.19¢13 594
1
#8
35121-MGP-A93
KEY, BLANK
$27.19¢13 594
1
#008
35121-MGP-A93RUSH
KEY, CUT INCL. OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV.REQUEST FORM IN IN)
No Disponible
1
#008
35121-MGP-A93STD
KEY, CUT INCL. STD SHIPPING (PLEASE SEE WAVE CUTTING SERV.REQUEST FORM IN IN)
No Disponible
1
#010
53100-MKF-D40
HANDLEBAR, R.
$269.45¢134 725
1
#10
53100-MKF-D40
HANDLEBAR, R.
$269.45¢134 725
1
#11
53105-KV3-000
WEIGHT B, HANDLEBAR
$20.23¢10 113
1
#011
53105-KV3-000
WEIGHT B, HANDLEBAR
$20.23¢10 113
1
#012
53105-MEE-940
WEIGHT, HANDLEBAR
$20.85¢10 425
1
#12
53105-MEE-940
WEIGHT, HANDLEBAR
$20.85¢10 425
1
#013
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.58¢2 288
1
#13
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.58¢2 288
1
#014
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$6.23¢3 113
1
#14
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$6.23¢3 113
1
#015
53109-MM5-000
RUBBER B, HANDLE WEIGHT
$4.53¢2 263
1
#15
53109-MM5-000
RUBBER B, HANDLE WEIGHT
$4.53¢2 263
1
#016
53150-MKF-D40
HANDLEBAR, L.
$229.07¢114 538
1
#16
53150-MKF-D40
HANDLEBAR, L.
$229.07¢114 538
1
#017
53191-MFL-000
STAY, CLUTCH CABLE
$12.99¢6 494
1
#17
53191-MFL-000
STAY, CLUTCH CABLE
$12.99¢6 494
1
#19
53192-MFL-000
SCREW-WASHER (5X25)
$2.38¢1 188
1
#019
53192-MFL-000
SCREW-WASHER (5X25)
$2.38¢1 188
1
#020
53232-MFL-010
CAP, STEERING NUT
$3.05¢1 525
1
#20
53232-MFL-010
CAP, STEERING NUT
$3.05¢1 525
1
#021
53300-MGP-D61
BRIDGE, FORK TOP
$330.55¢165 275
1
#21
53300-MGP-D61
BRIDGE, FORK TOP
$330.55¢165 275
1
#23
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#023
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#023
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#23
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#24
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#024
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#25
90107-MGE-000
BOLT, FLANGE (8X40)
$3.43¢1 713
1
#025
90107-MGE-000
BOLT, FLANGE (8X40)
$3.43¢1 713
1
#26
90191-KT7-750
SCREW, OVAL (6X60)
$5.75¢2 875
1
#026
90191-KT7-750
SCREW, OVAL (6X60)
$5.75¢2 875
1
#027
90304-MFL-000
NUT, STEERING STEM
$16.74¢8 369
1
#27
90304-MFL-000
NUT, STEERING STEM
$16.74¢8 369
1
#029
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#29
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
