HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

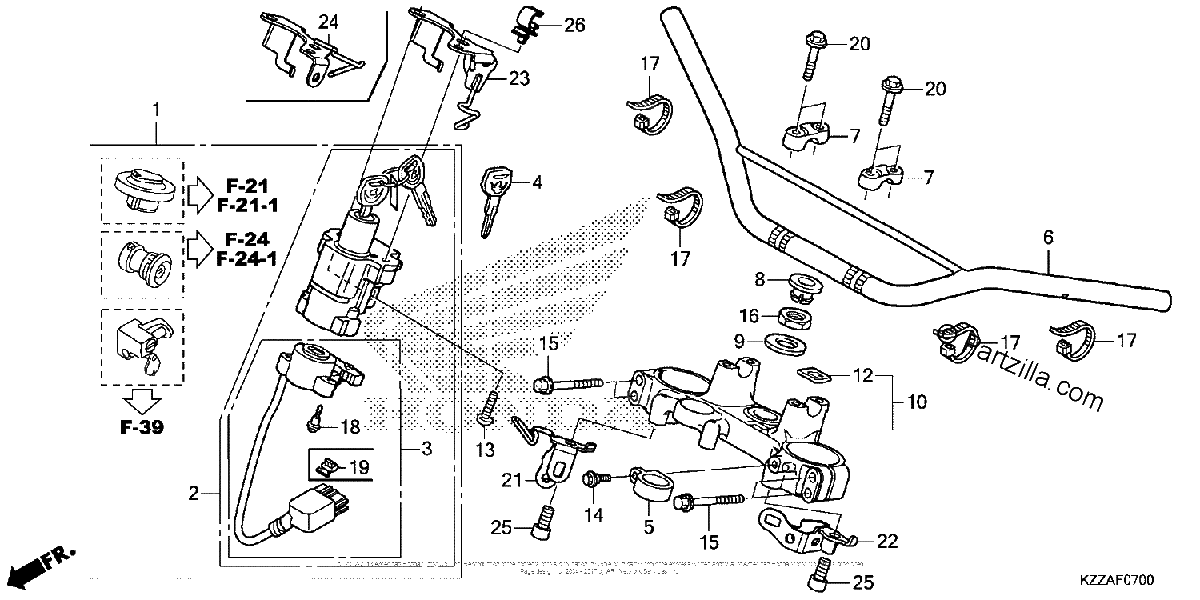

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
35010-KZZ-J10
LOCK SET
$372.69¢186 346
1
#2
35100-KZZ-J11
SWITCH ASSY., COMBINATION & LOCK
$182.40¢91 201
1
#3
35101-KZZ-J01
BASE, CONTACT
$99.28¢49 640
1
#4
35121-MAS-G01
KEY, BLANK
$13.60¢6 802
1
#5
45468-KZZ-J80
GUIDE, FR. BRAKE HOSE
$3.81¢1 903
1
#6
53100-KZZ-J00
HANDLEBAR
$31.92¢15 962
1
#7
53131-KZZ-A20
HOLDER (UPPER)
$7.11¢3 553
1
#8
53208-KCH-900
CAP, STEERING STEM
$3.36¢1 679
1
#9
53215-GF8-000
WASHER, DUST SEAL
$4.66¢2 329
1
#10
53300-KZZ-J00ZC
BRIDGE, FORK TOP *NH303M*(MAT AXIS GRAY METALLIC)
$97.20¢48 599
1
#12
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#13
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#14
90113-KZZ-900
BOLT, FLANGE (6MM)
$0.64¢322
1
#15
90155-KZZ-J00
BOLT, FLANGE (8X45)
$0.64¢322
1
#16
90304-425-000
NUT, STEERING STEM
$10.43¢5 215
1
#17
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#18
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
#20
96300-08035-00
BOLT, FLANGE (8X35)
$2.32¢1 162
1
#21
17915-KZZ-J00
STAY, THROTTLE CABLE (A)
$19.34¢9 672
1
#22
22875-KZZ-J00
STAY, FR. HARNESS CLIP
$17.42¢8 711
1
#24
61325-KZZ-J00
GUIDE, CLUTCH CABLE
$21.26¢10 632
1
#25
96600-08016-07
BOLT, SOCKET (8X16)
$1.51¢753
1
