FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

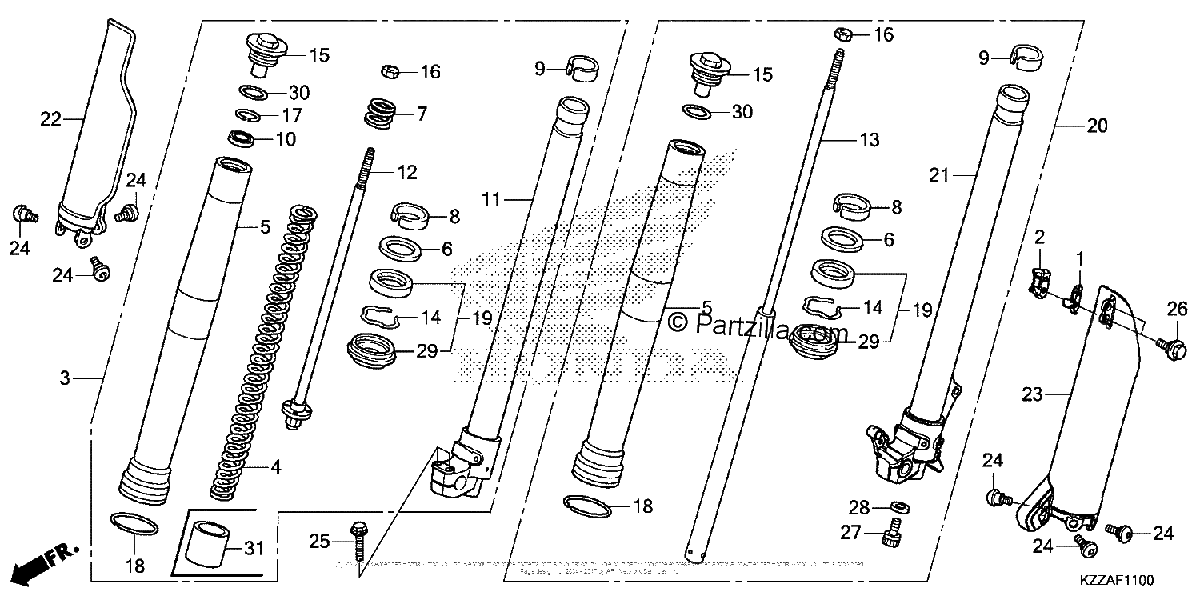

Diagrama de FRONT FORK

Repuestos

#1
45461-KZZ-J00
CLAMP A, BRAKE HOSE
$1.72¢862
1
#2
45462-KZZ-J00
CLAMP B, BRAKE HOSE
$2.41¢1 206
1
#3
51400-KZZ-J01
FORK ASSY., R. FR. (SHOWA)
$928.11¢464 056
1
#4
51401-KZZ-J01
SPRING, FR. FORK
$107.34¢53 669
1
#5
51410-KZZ-J01
TUBE (OUTER)
$491.11¢245 556
1
#6
51412-KA4-711
RING, BACK-UP
$11.29¢5 644
1
#7
51412-KZZ-901
SPRING, REBOUND
$17.15¢8 575
1
#8
51414-MFN-D01
BUSH, GUIDE
$8.58¢4 288
1
#9
51415-MGP-D01
BUSH, SLIDER
$17.22¢8 612
1
#10
51419-KZZ-901
SEAT, STOPPER
$8.26¢4 131
1
#11
51425-KZZ-J01
PIPE, R. SLIDE
$297.91¢148 956
1
#12
51426-KZZ-901
ROD
$172.99¢86 494
1
#13
51430-KZZ-J01
DAMPER, FR.
$116.58¢58 288
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#15
51450-KZZ-901
BOLT, FR. FORK
$64.78¢32 388
1
#16
51451-MAJ-G41
NUT, HEX. (10MM)
$3.73¢1 863
1
#17
51456-KZZ-901
RING, STOPPER
$13.53¢6 763
1
#18
51476-MFB-003
RING, WEAR
$7.97¢3 988
1
#19
51490-KZZ-J01
SEAL SET, FR. FORK
$29.75¢14 875
1
#20
51500-KZZ-J01
FORK ASSY., L. FR. (SHOWA)
$914.61¢457 306
1
#21
51426-KZZ-J01
PIPE, L. SLIDE
$291.35¢145 675
1
#22
51610-KZZ-D20ZA
PROTECTOR, R. FR. FORK (TYPE1) (R232 EXTREME RED)
$34.52¢17 263
1
#23
51620-KZZ-D20ZA
PROTECTOR, L. FR. FORK (TYPE1) (R232 EXTREME RED)
$40.09¢20 044
1
#24
90106-KZZ-900
BOLT, PROTECTOR (6MM)
$0.96¢481
1
#25
90107-MGE-000
BOLT, FLANGE (8X40)
$3.43¢1 713
1
#26
90113-KZZ-900
BOLT, FLANGE (6MM)
$0.70¢350
1
#27
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#28
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#29
91254-ML3-791
DUST SEAL
$17.63¢8 813
1
#30
91356-KZ3-003
O-RING (44.7X2.4)
$4.76¢2 381
1
#31
51402-KZZ-J01
COLLAR, SPRING
$10.61¢5 306
1
