REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

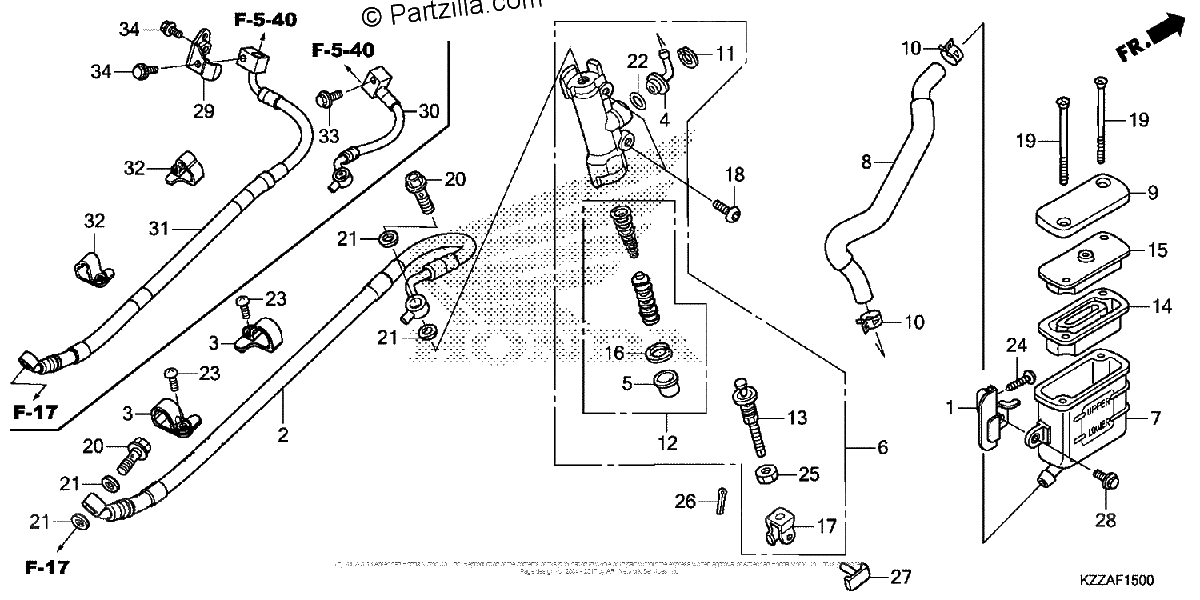

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
17270-KZZ-900
STAY, OIL CUP
$10.74¢5 371
1
#2
43310-KZZ-901
HOSE, RR. BRAKE
$42.31¢21 154
1
#3
43468-KZZ-J00
GUIDE, BRAKE HOSE
$2.92¢1 461
1
#4
43503-KS6-701
CONNECTOR, MASTER CYLINDER
$10.72¢5 359
1
#5
43504-MB2-006
BOOT
$10.80¢5 399
1
#6
43510-KZZ-305
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)
$63.51¢31 757
1
#6
43510-KZZ-901
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$63.51¢31 757
1
#7
43511-KW7-881
CUP, OIL (NISSIN)
$21.47¢10 735
1
#8
43512-KZZ-901
HOSE, RR. BRAKE MASTER CYLINDER
$10.95¢5 474
1
#9
43513-KTY-C01
CAP, MASTER CYLINDER
$7.11¢3 553
1
#10
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#11
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
1
#12
43520-MJ6-315
PISTON SET, MASTER CYLINDER (NISSIN)
$48.82¢24 409
1
#13
43530-KZZ-901
ROD, PUSH
$13.44¢6 722
1
#14
45520-GW0-911
DIAPHRAGM
$8.13¢4 065
1
#15
45521-GW0-911
PLATE, DIAPHRAGM
$6.39¢3 197
1
#16
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#17
46504-KV6-702
JOINT, BRAKE ROD
$8.74¢4 370
1
#18
90106-KGH-600
BOLT, BRAKE DISK (6X17)
$3.36¢1 679
1
#19
90140-KZZ-901
SCREW, FLAT (4X45)
$6.80¢3 398
1
#20
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#21
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#22
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#23
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#24
93903-26380
SCREW, TAPPING (6X20)
$0.84¢420
1
#25
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#26
94201-20120
PIN, SPLIT (2.0X12)
$1.17¢586
1
#27
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#28
96300-06014-00
BOLT, FLANGE (6X14)
$1.12¢558
1
