FUEL TANK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

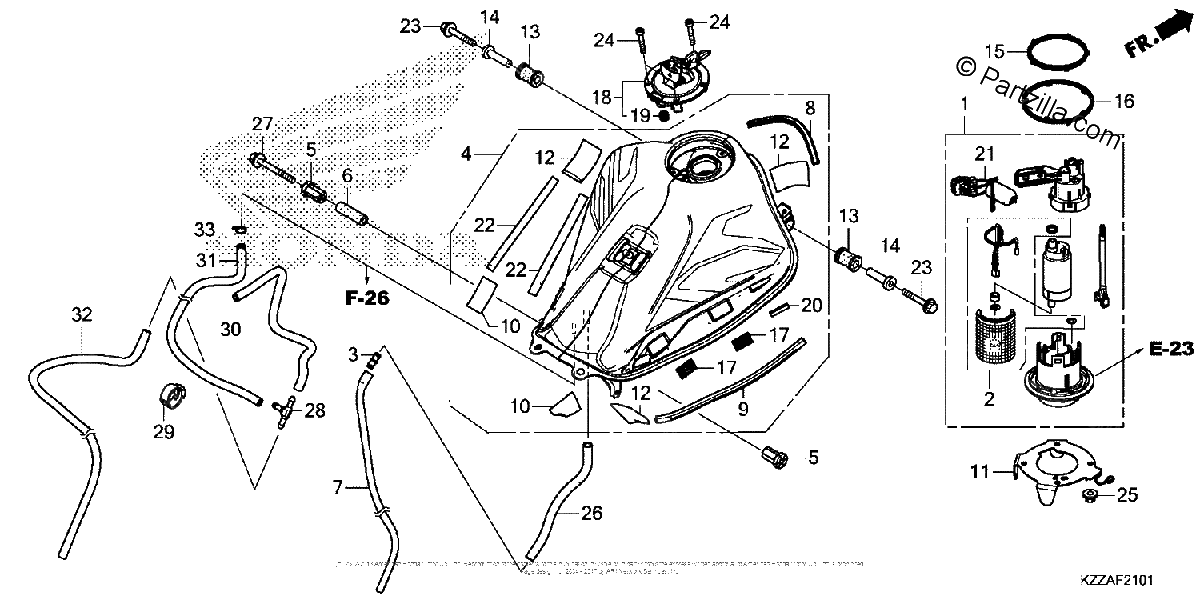

Diagrama de FUEL TANK 2

Repuestos

#1
16700-KZZ-J01
PUMP ASSY., FUEL (MSDS)
$183.25¢91 625
1
#2
16707-K45-N01
FILTER SET
$27.50¢13 750
1
#3
17359-419-670
JOINT, BREATHER TUBE
$2.64¢1 319
1
#4
17500-KZZ-J00ZA
TANK ASSY., FUEL (TYPE1) (WL) (R232 EXTREME RED)
$609.63¢304 813
1
#5
17506-KZZ-900
CUSHION, FUEL TANK PIVOT
$2.56¢1 281
1
#6
17507-KZZ-900
COLLAR, TANK SET
$1.99¢994
1
#7
17508-KZZ-J00
TUBE, DRAIN
$6.85¢3 425
1
#8
17516-KZZ-900
TRIM A, FUEL TANK
$8.14¢4 069
1
#9
17517-KZZ-900
TRIM B, FUEL TANK
$8.71¢4 356
1
#10
17521-KY1-300
SEAL, TANK
$2.97¢1 487
1
#11
17527-KZZ-J00
PLATE, SETTING
$10.14¢5 069
1
#12
17528-KCZ-930
TAPE B, TANK GUARD
$4.80¢2 400
1
#13
17534-MFJ-D00
RUBBER, RR. TANK MOUNTING
$5.76¢2 881
1
#14
17538-KZZ-900
COLLAR
$3.01¢1 506
1
#15
17572-KPN-A71
GASKET, FUEL PUMP
$23.40¢11 700
1
#16
17573-KPN-A71
DUST SEAL
$14.63¢7 313
1
#17
17580-MGZ-J00
FASTENER A, DUAL LOCK (18X28)
$3.15¢1 575
1
#18
17620-KZZ-J01
CAP, FUEL FILLER
$256.21¢128 106
1
#19
17621-MGP-D61
SEAL, BREATHER
$6.23¢3 113
1
#20
17850-KZZ-J00
CUSHION, SHROUD
$1.16¢581
1
#21
37800-KZZ-J01
FUEL UNIT
$44.49¢22 244
1
#22
83512-KZZ-J00
FILM, PROTECTOR
$4.55¢2 275
1
#23
90004-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$4.94¢2 469
1
#24
90120-MJE-D00
BOLT, SOCKET (4X25) (SUS)
$1.23¢613
1
#25
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#26
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$27.96¢13 981
1
#27
96001-06065-00
BOLT, FLANGE (6X65)
$3.01¢1 506
1
