REAR BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

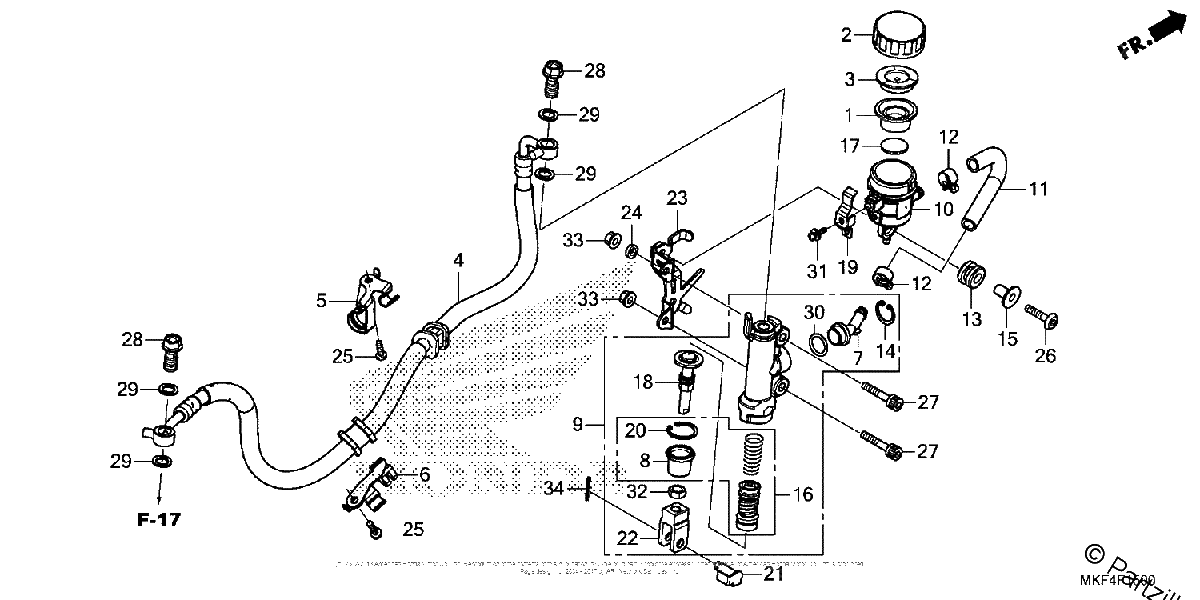

Diagrama de REAR BRAKE MASTER CYLINDER 1

Repuestos

#001
22888-MR7-006
DIAPHRAGM
$17.63¢8 813
1
#1
22888-MR7-006
DIAPHRAGM
$17.63¢8 813
1
#002
43513-MFL-671
CAP, OIL CUP
$51.22¢25 612
1
#2
43513-MFL-671
CAP, OIL CUP
$51.22¢25 612
1
#2
22889-MR7-006
CAP, CLUTCH OIL CUP
$45.36¢22 681
1
#3
22890-MR7-006
PLATE, DIAPHRAGM
$13.63¢6 813
1
#003
22890-MR7-006
PLATE, DIAPHRAGM
$13.63¢6 813
1
#004
43310-MKF-A21
HOSE, RR. BRAKE
$85.84¢42 919
1
#4
43310-MKF-A21
HOSE, RR. BRAKE
$85.84¢42 919
1
#5
43317-MKF-D40
CLAMP A, RR. BRAKE HOSE
$9.80¢4 900
1
#005
43317-MKF-D40
CLAMP A, RR. BRAKE HOSE
$9.80¢4 900
1
#6
43318-MKF-D40
CLAMP B, RR. BRAKE HOSE
$9.80¢4 900
1
#006
43318-MKF-D40
CLAMP B, RR. BRAKE HOSE
$9.80¢4 900
1
#007
43503-MFL-006
CONNECTOR, MASTER CYLINDER
$5.39¢2 694
1
#7
43503-MFL-006
CONNECTOR, MASTER CYLINDER
$5.39¢2 694
1
#008
43504-MB2-006
BOOT
$11.74¢5 869
1
#8
43504-MB2-006
BOOT
$11.74¢5 869
1
#9
43510-MKF-D41
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$247.73¢123 863
1
#009
43510-MKF-D41
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$247.73¢123 863
1
#010
43511-MFL-006
CUP, OIL
$27.09¢13 544
1
#10
43511-MFL-006
CUP, OIL
$27.09¢13 544
1
#011
43512-MFL-006
HOSE, RR. MASTER CYLINDER
$14.26¢7 131
1
#11
43512-MFL-006
HOSE, RR. MASTER CYLINDER
$14.26¢7 131
1
#012
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#12
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#013
43516-HA2-000
RUBBER, OIL CUP MOUNTING
$5.42¢2 713
1
#13
43516-HA2-000
RUBBER, OIL CUP MOUNTING
$5.42¢2 713
1
#014
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
1
#14
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
1
#015
43517-MFL-880
COLLAR (6.3X14)
$4.74¢2 369
1
#15
43517-MFL-880
COLLAR (6.3X14)
$4.74¢2 369
1
#16
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
1
#016
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
1
#017
43523-MFL-006
FLOAT
$4.04¢2 019
1
#17
43523-MFL-006
FLOAT
$4.04¢2 019
1
#018
43530-MM5-006
ROD, PUSH
$35.65¢17 825
1
#18
43530-MM5-006
ROD, PUSH
$35.65¢17 825
1
#019
45535-MR8-901
PLATE, STOP
$6.61¢3 306
1
#19
45535-MR8-901
PLATE, STOP
$6.61¢3 306
1
#020
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#20
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#21
46503-MFL-000
PIN, BRAKE ROD
$17.07¢8 538
1
#021
46503-MFL-000
PIN, BRAKE ROD
$17.07¢8 538
1
#22
46504-MFL-000
JOINT, BRAKE ROD
$16.90¢8 450
1
#022
46504-MFL-000
JOINT, BRAKE ROD
$16.90¢8 450
1
#023
50608-MKF-D40
STAY, RR. MASTER CUP
$15.45¢7 725
1
#23
50608-MKF-D40
STAY, RR. MASTER CUP
$15.45¢7 725
1
#24
50618-KE8-000
COLLAR (6.5X11X3)
$3.65¢1 825
1
#024
50618-KE8-000
COLLAR (6.5X11X3)
$3.65¢1 825
1
#025
90113-K40-F00
SCREW, PAN (5X15)
$3.49¢1 744
1
#25
90113-K40-F00
SCREW, PAN (5X15)
$3.49¢1 744
1
#26
90115-KTB-000
BOLT, SPECIAL (6X25)
$2.88¢1 438
1
#026
90115-KTB-000
BOLT, SPECIAL (6X25)
$2.88¢1 438
1
#27
90128-MFL-000
BOLT, SOCKET (6X32)
$2.73¢1 363
1
#027
90128-MFL-000
BOLT, SOCKET (6X32)
$2.73¢1 363
1
#28
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#028
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#29
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#029
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#30
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#030
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#31
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#031
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#031
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#31
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#032
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#32
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#33
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#033
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#034
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#34
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
