SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

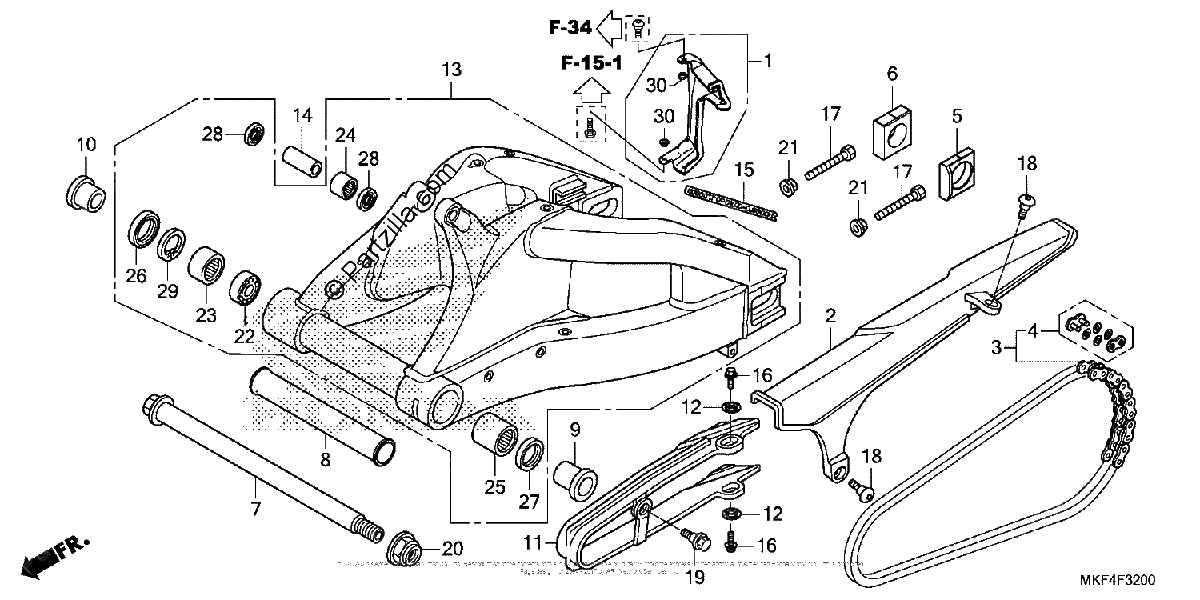

Diagrama de SWINGARM

Repuestos

#2
40510-MFL-000
CASE, DRIVE CHAIN
$52.80¢26 398
1
#002
40510-MFL-000
CASE, DRIVE CHAIN
$52.80¢26 398
1
#3
40530-MKF-D42
CHAIN, DRIVE (RK525ROZ7-116LJFZ) (RK JAPAN)
No Disponible
1
#003
40540-MKF-D42
CHAIN, DRIVE (RK525ROZ7-120LJFZ) (RK JAPAN) (STANDARD LINK 116L)
$271.76¢135 878
1
#3
40540-MKF-D42
CHAIN, DRIVE (RK525ROZ7-120LJFZ) (RK JAPAN) (STANDARD LINK 116L)
$271.76¢135 878
1
#004
40535-MKF-D42
MASTER LINK (RK JAPAN)
$13.97¢6 986
1
#4
40535-MKF-D42
MASTER LINK (RK JAPAN)
$13.97¢6 986
1
#005
42305-MKF-D40
COLLAR, L. RR. AXLE
$40.96¢20 481
1
#5
42305-MKF-D40
COLLAR, L. RR. AXLE
$40.96¢20 481
1
#006
42306-MKF-D40
COLLAR, R. RR. AXLE
$33.53¢16 767
1
#6
42306-MKF-D40
COLLAR, R. RR. AXLE
$33.53¢16 767
1
#7
52101-MFL-000
BOLT, SWINGARM PIVOT
$74.16¢37 082
1
#007
52101-MFL-000
BOLT, SWINGARM PIVOT
$74.16¢37 082
1
#8
52102-MKF-D40
COLLAR, RR. SWINGARM DISTANCE
$40.01¢20 004
1
#008
52102-MKF-D40
COLLAR, RR. SWINGARM DISTANCE
$40.01¢20 004
1
#009
52143-MFL-000
COLLAR, L. PIVOT DISTANCE
$37.01¢18 504
1
#9
52143-MFL-000
COLLAR, L. PIVOT DISTANCE
$37.01¢18 504
1
#010
52144-MFL-000
COLLAR, R. PIVOT DISTANCE
$28.73¢14 363
1
#10
52144-MFL-000
COLLAR, R. PIVOT DISTANCE
$28.73¢14 363
1
#11
52170-MFL-010
SLIDER, CHAIN
$52.69¢26 347
1
#011
52170-MFL-010
SLIDER, CHAIN
$52.69¢26 347
1
#12
52171-MFJ-D00
WASHER, CHAIN SLIDER
$2.62¢1 311
1
#012
52171-MFJ-D00
WASHER, CHAIN SLIDER
$2.62¢1 311
1
#013
52200-MKF-D40
SWINGARM SUB-ASSY.
$2527.15¢1 263 574
1
#13
52200-MKF-D40
SWINGARM SUB-ASSY.
$2527.15¢1 263 574
1
#014
52463-MAL-G00
COLLAR, CUSHION CONNECTING ROD
$12.57¢6 285
1
#14
52463-MAL-G00
COLLAR, CUSHION CONNECTING ROD
$12.57¢6 285
1
#015
87121-MEL-D20
MARK (UNIT PROLINK)
$4.55¢2 277
1
#15
87121-MEL-D20
MARK (UNIT PROLINK)
$4.55¢2 277
1
#16
90105-MY9-000
BOLT, FLANGE (6X18)
$3.36¢1 679
1
#016
90105-MY9-000
BOLT, FLANGE (6X18)
$3.36¢1 679
1
#017
90107-MFL-D20
BOLT, HEX. (8X50)
$3.42¢1 708
1
#17
90107-MFL-D20
BOLT, HEX. (8X50)
$3.42¢1 708
1
#18
90116-MFL-D20
SCREW, SPECIAL (6X16)
$3.07¢1 535
1
#018
90116-MFL-D20
SCREW, SPECIAL (6X16)
$3.07¢1 535
1
#019
90130-MCJ-750
BOLT, CHAIN SLIDER
$3.42¢1 708
1
#19
90130-MCJ-750
BOLT, CHAIN SLIDER
$3.42¢1 708
1
#20
90306-MFL-D31
NUT, U (22MM)
$20.87¢10 436
1
#020
90306-MFL-D31
NUT, U (22MM)
$20.87¢10 436
1
#021
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#21
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#22
91053-MCJ-003
BEARING, RADIAL BALL (6905)
$17.93¢8 964
1
#022
91053-MCJ-003
BEARING, RADIAL BALL (6905)
$17.93¢8 964
1
#23
91053-MCJ-751
BEARING, NEEDLE (32X42X20)
$34.29¢17 147
1
#023
91053-MCJ-751
BEARING, NEEDLE (32X42X20)
$34.29¢17 147
1
#24
91071-KV3-005
BEARING, NEEDLE (KOYO)
$26.59¢13 294
1
#024
91071-KV3-005
BEARING, NEEDLE (KOYO)
$26.59¢13 294
1
#025
91071-MCJ-003
BEARING, NEEDLE (32X42X37)
$22.49¢11 247
1
#25
91071-MCJ-003
BEARING, NEEDLE (32X42X37)
$22.49¢11 247
1
#026
91252-MCF-003
DUST SEAL (32X45X5)
$7.72¢3 858
1
#26
91252-MCF-003
DUST SEAL (32X45X5)
$7.72¢3 858
1
#027
91253-MCF-003
DUST SEAL (32X42X6)
$7.15¢3 577
1
#27
91253-MCF-003
DUST SEAL (32X42X6)
$7.15¢3 577
1
#028
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#28
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#029
94520-45000
CIRCLIP, INNER (45MM)
$2.71¢1 357
1
#29
94520-45000
CIRCLIP, INNER (45MM)
$2.71¢1 357
1
