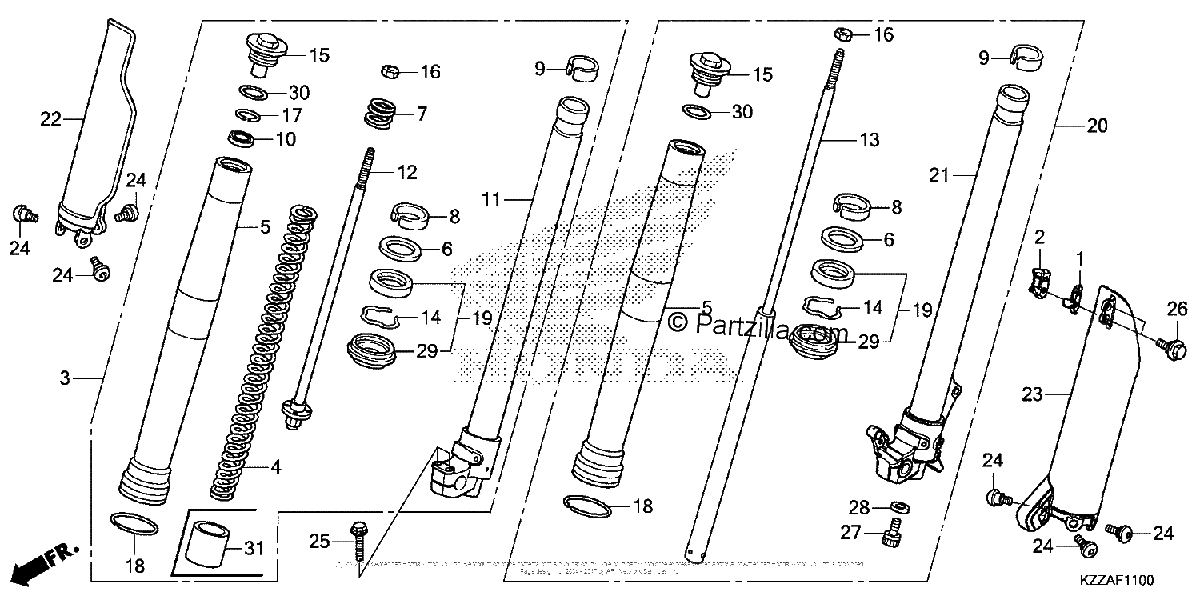

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP A, BRAKE HOSE
$8.75¢4 375
#2
CLAMP B, BRAKE HOSE
$10.80¢5 400
#3
FORK ASSY., R. FR. (SHOWA)
$928.11¢464 056
#4
SPRING, FR. FORK
$107.34¢53 669
#5
TUBE (OUTER)
$491.11¢245 556
#6
RING, BACK-UP
$11.29¢5 644
#7
SPRING, REBOUND
$17.15¢8 575
#8
BUSH, GUIDE
$8.58¢4 288
#9
BUSH, SLIDER
$17.22¢8 612
#10
SEAT, STOPPER
$8.26¢4 131
#11
PIPE, R. SLIDE
$297.91¢148 956
#12
ROD
$172.99¢86 494
#13
DAMPER, FR.
$116.58¢58 288
#14
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
#15
BOLT, FR. FORK
$64.78¢32 388
#16
NUT, HEX. (10MM)
$3.73¢1 863
#17
RING, STOPPER
$13.53¢6 763
#18
RING, WEAR
$7.97¢3 988
#19
SEAL SET, FR. FORK
$29.75¢14 875
#20
FORK ASSY., L. FR. (SHOWA)
$890.84¢445 419
#21
PIPE, L. SLIDE
$373.75¢186 875
#22
PROTECTOR, R. FR. FORK (TYPE1) (R232 EXTREME RED)
$34.52¢17 263
#23
PROTECTOR, L. FR. FORK (TYPE1)
$114.98¢57 488
#24
BOLT, PROTECTOR (6MM)
$0.96¢481
#25
BOLT, FLANGE (8X40)
$3.43¢1 713
#26
BOLT, FLANGE (6MM)
$0.70¢350
#27
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
#28
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
#29
DUST SEAL
$17.63¢8 813
#30
O-RING (44.7X2.4)
$4.76¢2 381
#31
COLLAR, SPRING
$10.61¢5 306
