FRONT BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

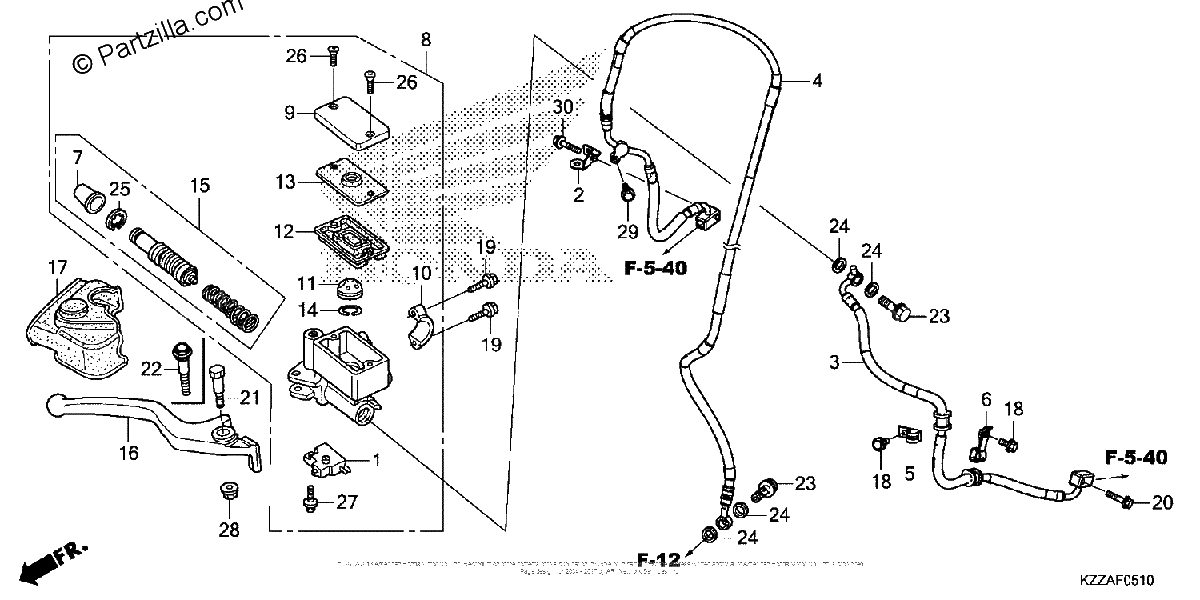

Diagrama de FRONT BRAKE MASTER CYLINDER 2

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#2
38526-KZZ-J80
STAY, FR. SPEED SENSOR WIRE
$8.95¢4 475
1
#3
45124-KZZ-J81
HOSE A, FR. BRAKE
$55.45¢27 725
1
#4
45127-KZZ-J81
HOSE D, FR. BRAKE
$123.14¢61 569
1
#5
45181-KZZ-J80
CLAMP, FR. BRAKE HOSE
$8.73¢4 363
1
#6
45182-KZZ-J80
CLAMP B, FR. BRAKE HOSE
$9.53¢4 763
1
#7
45504-410-003
BOOT
$14.24¢7 119
1
#8
45510-KZZ-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$87.07¢43 537
1
#8
45510-KZZ-901
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$87.07¢43 537
1
#9
45513-HA2-006
CAP, MASTER CYLINDER
$31.97¢15 987
1
#10
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#11
45518-MEN-J01
SEPARATOR
$9.24¢4 619
1
#12
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#13
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#14
45523-KA3-731
RING
$3.65¢1 825
1
#15
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#16
53175-KZZ-305
LEVER, R. HANDLEBAR (COO)
$12.59¢6 294
1
#16
53175-KZZ-900
LEVER, R. HANDLEBAR
$12.59¢6 294
1
#18
90013-GHB-610
BOLT, FLANGE (6X12)
$2.99¢1 494
1
#19
90013-GHB-660
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#20
90013-GHB-670
BOLT, FLANGE (6X25)
$2.99¢1 494
1
#22
90114-KZZ-J01
BOLT, LEVER PIVOT
$12.49¢6 244
1
#23
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#24
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#25
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#26
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#26
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#27
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#27
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#28
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#29
96001-06018-07
BOLT, FLANGE (6X18)
$1.63¢813
1
#30
96001-06028-07
BOLT, FLANGE (6X28)
$1.95¢975
1
