HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

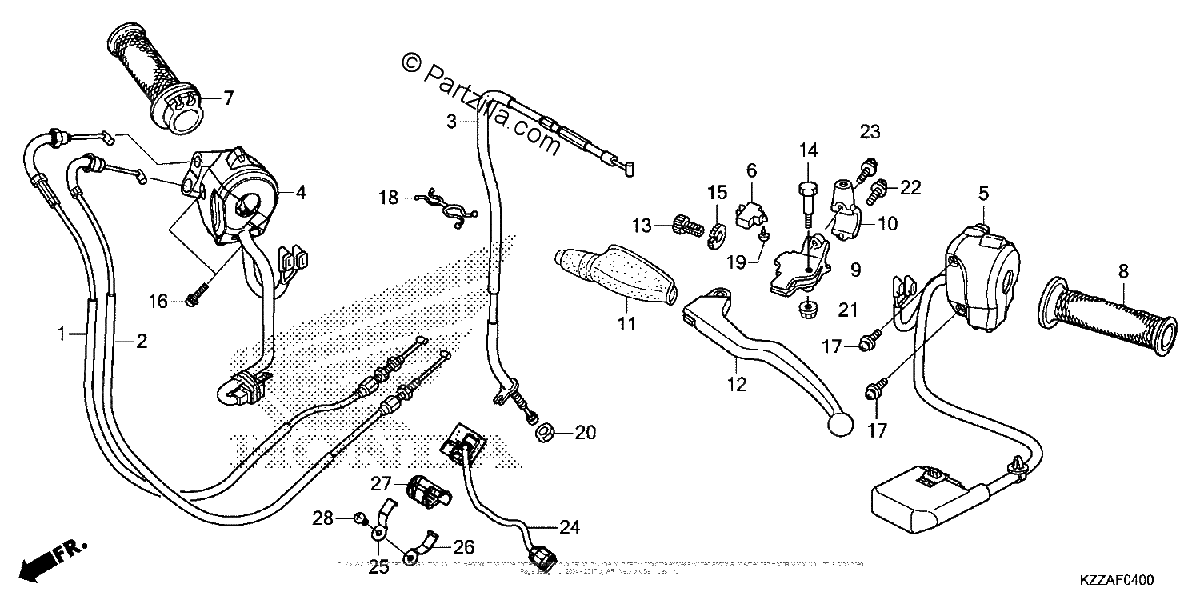

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-KZZ-J00
CABLE A, THROTTLE
$15.21¢7 607
1
#2
17920-KZZ-J00
CABLE B, THROTTLE
$15.21¢7 607
1
#3
22870-KZZ-J00
CABLE, CLUTCH
$15.10¢7 550
1
#4
35130-KZZ-J01
SWITCH ASSY., ENGINE STOP
$64.58¢32 292
1
#5
35200-KZZ-J02
SWITCH ASSY., TURN SIGNAL
$155.95¢77 976
1
#6
35330-MK5-003
SWITCH ASSY., CLUTCH
$19.11¢9 557
1
#7
53140-KZZ-900
GRIP, THROTTLE
$8.84¢4 422
1
#7
53140-KZZ-305
GRIP, THROTTLE (COO)
$8.84¢4 422
1
#8
53150-KZZ-900
GRIP, L. HANDLE
$9.11¢4 554
1
#8
53150-KZZ-305
GRIP, L. HANDLE (COO)
$9.11¢4 554
1
#9
53172-KZZ-900
BRACKET, L. HANDLE LEVER
$15.44¢7 722
1
#10
53174-KZZ-900
HOLDER, L. LEVER BRACKET
$16.79¢8 395
1
#11
53177-KZZ-900
COVER, L. HANDLE LEVER
$3.36¢1 679
1
#12
53178-KZZ-305
LEVER, L. HANDLE (COO)
$12.75¢6 377
1
#12
53178-KZZ-900
LEVER, L. HANDLE
$12.75¢6 377
1
#13
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#14
90113-KZZ-J00
BOLT, HANDLE LEVER PIVOT
$1.44¢719
1
#15
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#16
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.59¢293
1
#17
90508-KZZ-900
SCREW-WASHER (5X16)
$1.68¢839
1
#18
90647-657-671
CLIP, PURSE LOCK
$6.72¢3 358
1
#19
93901-32320
SCREW, TAPPING (3X12)
$1.02¢512
1
#20
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#21
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#22
96001-06020-07
BOLT, FLANGE (6X20)
$1.60¢799
1
#23
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
#24
35240-KZZ-J81
SWITCH ASSY., RR. ABS CANCEL
$66.00¢32 999
1
#25
35241-KZZ-J80
CLAMP A, ABS CANCEL SWITCH
$6.61¢3 306
1
#26
35242-KZZ-J80
CLAMP B, ABS CANCEL SWITCH
$6.82¢3 410
1
#27
35243-KZZ-J80
RUBBER, ABS CANCEL SWITCH
$18.32¢9 160
1
#28
90112-MJK-N20
SCREW (5X12)
$2.66¢1 328
1
