FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

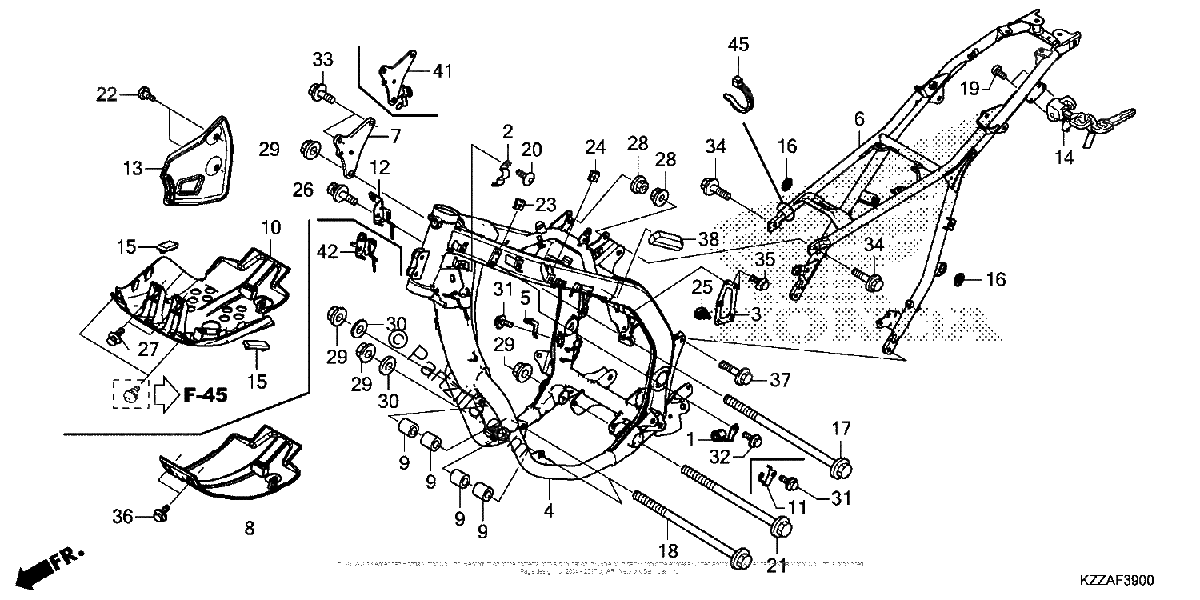

Diagrama de FRAME

Repuestos

#2
35205-KZZ-J80
CLAMP, L. HARNESS
$4.45¢2 225
1
#3
35206-KZZ-J00
STAY, TURN SIGNAL SWITCH CONNECTOR
$3.98¢1 988
1
#4
50100-KZZ-J80ZB
FRAME *NH303M*(MAT AXIS GRAY METALLIC)
$662.98¢331 488
1
#5
50175-KZZ-900
STAY, STOP SWITCH
$2.24¢1 119
1
#6
50200-KZZ-J00ZB
FRAME, RR. *NH303M*(MAT AXIS GRAY METALLIC)
$202.59¢101 294
1
#9
50361-KZZ-900
COLLAR, ENGINE HANGER
$3.21¢1 606
1
#10
50376-KZZ-J00
COWL (LOWER) (RR)
$81.99¢40 994
1
#11
50401-KZZ-J00
STAY, HARNESS (L)
$10.41¢5 206
1
#13
50615-KZZ-A20
GUARD, HEEL
$3.21¢1 606
1
#14
50710-KCZ-J71
HOLDER ASSY., HELMET
$51.76¢25 881
1
#15
77204-312-000
RUBBER, SEAT SETTING
$6.13¢3 063
1
#16
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.45¢2 225
1
#17
90102-KZZ-900
BOLT, FLANGE (10X150)
$4.24¢2 119
1
#18
90104-HP6-A00
BOLT, FLANGE (10X140)
$10.39¢5 194
1
#19
90105-KGA-B00
BOLT, ONE-WAY (6X10)
$3.11¢1 556
1
#20
90106-GBB-710
SCREW, PAN (6X10)
$1.63¢813
1
#21
90127-KR3-000
BOLT, FLANGE (10X130)
$11.15¢5 575
1
#22
90133-KPP-T00
SCREW, PAN (6X14)
$1.64¢819
1
#23
90303-KZZ-J00
NUT, CLIP (6MM)
$1.64¢819
1
#25
90652-KZZ-901
CLIP
$2.24¢1 119
1
#26
93401-08012-08
BOLT-WASHER (8X12)
$1.29¢644
1
#27
93404-06012-00
BOLT-WASHER (6X12)
$2.09¢1 044
1
#28
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#29
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#30
94101-10800
WASHER, PLAIN (10MM)
$2.41¢1 206
1
#31
95701-06010-00
BOLT, FLANGE (6X10)
$1.63¢813
1
#33
95701-08016-00
BOLT, FLANGE (8X16)
$2.31¢1 156
1
#34
95701-08018-00
BOLT, FLANGE (8X18)
$2.31¢1 156
1
#35
96001-06010-00
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#37
96300-08020-00
BOLT, FLANGE (8X20)
$2.03¢1 013
1
#41
50351-KZZ-J00
PLATE, R. ENGINE HANGER
$44.84¢22 419
1
#42
50402-KZZ-G40
GUIDE, CABLE
$29.61¢14 806
1
