TAILLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

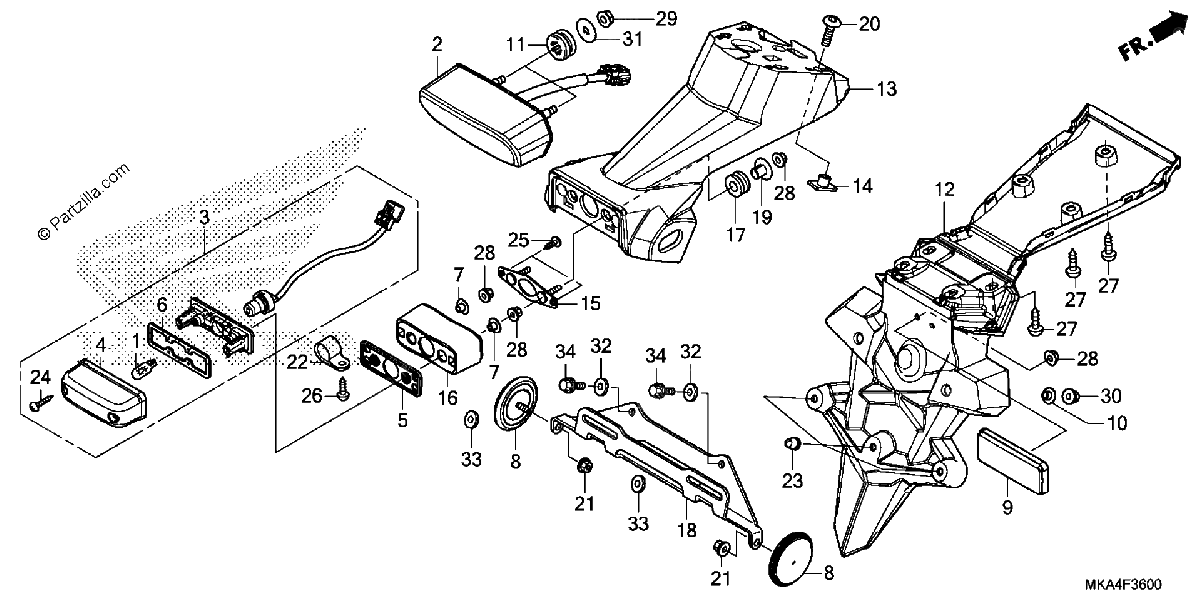

Diagrama de TAILLIGHT

Repuestos

#1
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#001
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#002
33701-MKA-A31
TAILLIGHT UNIT
$176.35¢88 175
1
#2
33701-MKA-A31
TAILLIGHT UNIT
$176.35¢88 175
1
#003
33720-MKA-D81
LIGHT ASSY., LICENSE (T10 12V 5W)
$112.25¢56 125
1
#3
33720-MKA-D81
LIGHT ASSY., LICENSE (T10 12V 5W)
$112.25¢56 125
1
#004
33721-GET-671
COVER, LICENSE
$24.61¢12 306
1
#4
33721-GET-671
COVER, LICENSE
$24.61¢12 306
1
#005
33728-MFL-000
RUBBER, LICENSE LIGHT
$3.81¢1 906
1
#5
33728-MFL-000
RUBBER, LICENSE LIGHT
$3.81¢1 906
1
#6
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#006
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#007
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$3.08¢1 538
1
#7
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$3.08¢1 538
1
#8
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
1
#008
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
1
#009
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#9
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#010
44125-MN5-000
COLLAR, Front WHEEL COVER
$6.20¢3 100
1
#10
44125-MN5-000
COLLAR, Front WHEEL COVER
$6.20¢3 100
1
#011
77209-MJM-D60
RUBBER, TAILLIGHT
$3.40¢1 700
1
#11
77209-MJM-D60
RUBBER, TAILLIGHT
$3.40¢1 700
1
#12
80100-MKA-J30
FENDER A, Rear.
$65.38¢32 688
1
#012
80100-MKA-J30
FENDER A, Rear.
$65.38¢32 688
1
#013
80101-MKA-D80
STAY, FENDER A
$122.31¢61 156
1
#13
80101-MKA-D80
STAY, FENDER A
$122.31¢61 156
1
#014
80104-KJ2-000
NUT, RR. FENDER
$4.95¢2 475
1
#14
80104-KJ2-000
NUT, RR. FENDER
$4.95¢2 475
1
#015
80118-MGE-670
STAY, LICENSE LIGHT BRACKET
$9.96¢4 981
1
#15
80118-MGE-670
STAY, LICENSE LIGHT BRACKET
$9.96¢4 981
1
#16
80201-MGE-670
BRACKET, LICENSE LIGHT
$10.55¢5 275
1
#016
80201-MGE-670
BRACKET, LICENSE LIGHT
$10.55¢5 275
1
#17
83545-MFC-640
RUBBER, SHROUD
$1.42¢712
1
#017
83545-MFC-640
RUBBER, SHROUD
$1.42¢712
1
#018
84700-MKA-C80
STAY, LICENSE PLATE
$16.34¢8 169
1
#18
84700-MKA-C80
STAY, LICENSE PLATE
$16.34¢8 169
1
#19
90001-961-670
COLLAR, SIDE MOUNTING
$7.24¢3 619
1
#019
90001-961-670
COLLAR, SIDE MOUNTING
$7.24¢3 619
1
#20
90085-KFB-000
BOLT, SPECIAL (6X22)
$4.15¢2 075
1
#020
90085-KFB-000
BOLT, SPECIAL (6X22)
$4.15¢2 075
1
#21
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#021
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#022
90628-750-000
CLIP (14MM)
$2.84¢1 419
1
#22
90628-750-000
CLIP (14MM)
$2.84¢1 419
1
#23
90899-MFJ-A00
PLUG, CONE
$4.59¢2 294
1
#023
90899-MFJ-A00
PLUG, CONE
$4.59¢2 294
1
#24
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#024
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#025
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#25
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#026
93903-24420
SCREW, TAPPING (4X16)
$1.16¢581
1
#26
93903-24420
SCREW, TAPPING (4X16)
$1.16¢581
1
#27
93903-25280
SCREW, TAPPING (5X12)
$1.66¢831
1
#027
93903-25280
SCREW, TAPPING (5X12)
$1.66¢831
1
#28
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#028
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#029
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#29
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#030
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#30
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#31
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#031
94103-06000
WASHER, PLAIN (6MM)
$1.27¢638
1
#32
94103-06700
WASHER, PLAIN (6MM)
$0.93¢463
1
#032
94103-06700
WASHER, PLAIN (6MM)
$0.93¢463
1
#033
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#33
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#34
95701-06018-07
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#034
95701-06018-07
BOLT, FLANGE (6X18)
$2.09¢1 044
1
