FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

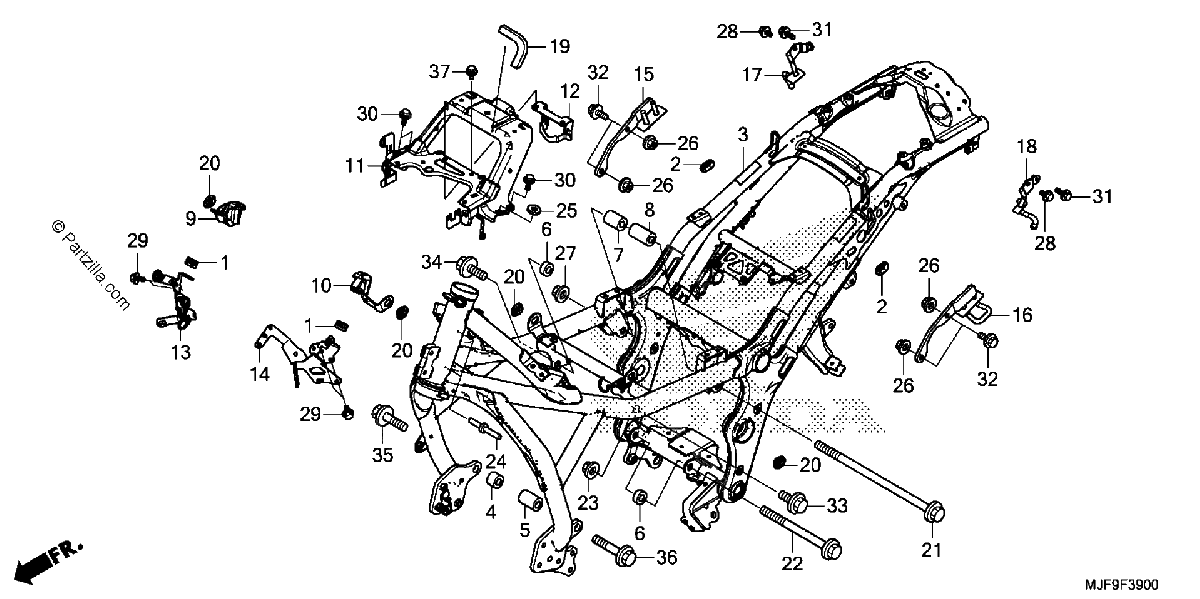

Diagrama de FRAME

Repuestos

#001
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.65¢1 825
1
#1
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.65¢1 825
1
#2
17247-303-000
GROMMET A, AIR CLEANER HOUSING
$9.85¢4 925
1
#002
17247-303-000
GROMMET A, AIR CLEANER HOUSING
$9.85¢4 925
1
#3
50100-MJF-A30ZA
FRAME NH303M (MAT AXIS GRAY METALLIC)
$3553.79¢1 776 894
1
#003
50100-MJF-A30ZA
FRAME NH303M (MAT AXIS GRAY METALLIC)
$3553.79¢1 776 894
1
#4
50191-MJF-A00
COLLAR A, Right ENGINE HANGER
$10.67¢5 337
1
#004
50191-MJF-A00
COLLAR A, Right ENGINE HANGER
$10.67¢5 337
1
#5
50192-MJF-A00
COLLAR A, L ENGINE HANGER
$16.06¢8 031
1
#005
50192-MJF-A00
COLLAR A, L ENGINE HANGER
$16.06¢8 031
1
#6
50193-MGS-D10
COLLAR B, ENGINE HANGER
$7.15¢3 575
1
#006
50193-MGS-D10
COLLAR B, ENGINE HANGER
$7.15¢3 575
1
#007
50194-MGS-D10
COLLAR C, R. ENGINE HANGER
$14.51¢7 256
1
#7
50194-MGS-D10
COLLAR C, R. ENGINE HANGER
$14.51¢7 256
1
#008
50195-MGS-D10
COLLAR C, L. ENGINE HANGER
$16.85¢8 425
1
#8
50195-MGS-D10
COLLAR C, L. ENGINE HANGER
$16.85¢8 425
1
#009
50231-MJF-A00
STAY, R. FR. TANK
$26.44¢13 219
1
#9
50231-MJF-A00
STAY, R. FR. TANK
$26.44¢13 219
1
#010
50232-MJF-A00
STAY, L. FR. TANK
$26.44¢13 219
1
#10
50232-MJF-A00
STAY, L. FR. TANK
$26.44¢13 219
1
#011
50234-MJF-A00
PLATE, CENTER CROSS
$153.81¢76 906
1
#11
50234-MJF-A00
PLATE, CENTER CROSS
$153.81¢76 906
1
#12
50236-MJF-A00
STAY, BANK ANGLE SENSOR
$33.30¢16 650
1
#012
50236-MJF-A00
STAY, BANK ANGLE SENSOR
$33.30¢16 650
1
#13
50237-MJF-A00
STAY, Right AIR CLEANER HOUSING
$25.64¢12 819
1
#013
50237-MJF-A00
STAY, Right AIR CLEANER HOUSING
$25.64¢12 819
1
#014
50238-MJF-A00
STAY, L. AIR CLEANER HOUSING
$25.64¢12 819
1
#14
50238-MJF-A00
STAY, L. AIR CLEANER HOUSING
$25.64¢12 819
1
#015
50240-MJF-A00
HOOK, R. FR.
$53.36¢26 681
1
#15
50240-MJF-A00
HOOK, R. FR.
$53.36¢26 681
1
#016
50241-MJF-A00
HOOK, L. FR.
$53.36¢26 681
1
#16
50241-MJF-A00
HOOK, L. FR.
$53.36¢26 681
1
#17
50245-MJF-A00
HOOK, Right Rear.
$53.66¢26 831
1
#017
50245-MJF-A00
HOOK, Right Rear.
$53.66¢26 831
1
#018
50246-MJF-A00
HOOK, L. RR.
$53.66¢26 831
1
#18
50246-MJF-A00
HOOK, L. RR.
$53.66¢26 831
1
#019
80102-MGS-D70
MAT, RR. FENDER A
$4.90¢2 450
1
#19
80102-MGS-D70
MAT, RR. FENDER A
$4.90¢2 450
1
#20
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#020
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.81¢3 406
1
#021
90103-MGS-D30
BOLT, FLANGE (12X276)
$25.23¢12 613
1
#21
90103-MGS-D30
BOLT, FLANGE (12X276)
$25.23¢12 613
1
#22
90104-MGS-D30
BOLT, FLANGE (12X168)
$15.61¢7 806
1
#022
90104-MGS-D30
BOLT, FLANGE (12X168)
$15.61¢7 806
1
#23
90364-MEJ-000
NUT, FLANGE (12MM)
$2.21¢1 106
1
#023
90364-MEJ-000
NUT, FLANGE (12MM)
$2.21¢1 106
1
#024
90841-001-000
SCREW, RIVET (1.8X5)
$1.95¢975
1
#24
90841-001-000
SCREW, RIVET (1.8X5)
$1.95¢975
1
#25
91414-671-000
WASHER, BLACK (20MM)
$6.99¢3 494
1
#025
91414-671-000
WASHER, BLACK (20MM)
$6.99¢3 494
1
#26
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#026
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#27
94050-12000
NUT, FLANGE (12MM)
$1.27¢638
1
#027
94050-12000
NUT, FLANGE (12MM)
$1.27¢638
1
#28
95701-06012-08
BOLT, FLANGE (6X12)
$1.99¢994
1
#028
95701-06012-08
BOLT, FLANGE (6X12)
$1.99¢994
1
#29
95701-06014-08
BOLT, FLANGE (6X14)
$2.09¢1 044
1
#029
95701-06014-08
BOLT, FLANGE (6X14)
$2.09¢1 044
1
#030
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#30
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#031
95701-06020-08
BOLT, FLANGE (6X20)
$0.47¢238
1
#31
95701-06020-08
BOLT, FLANGE (6X20)
$0.47¢238
1
#032
95701-08022-07
BOLT, FLANGE (8X22)
$2.58¢1 288
1
#32
95701-08022-07
BOLT, FLANGE (8X22)
$2.58¢1 288
1
#033
95701-12035-08
BOLT, FLANGE (12X35)
$4.07¢2 037
1
#33
95701-12035-08
BOLT, FLANGE (12X35)
$4.07¢2 037
1
#34
95701-12045-08
BOLT, FLANGE (12X45)
$2.36¢1 181
1
#034
95701-12045-08
BOLT, FLANGE (12X45)
$2.36¢1 181
1
#35
95701-12055-08
BOLT, FLANGE (12X55)
$4.22¢2 113
1
#035
95701-12055-08
BOLT, FLANGE (12X55)
$4.22¢2 113
1
#036
95701-12080-08
BOLT, FLANGE (12X80)
$5.67¢2 838
1
#36
95701-12080-08
BOLT, FLANGE (12X80)
$5.67¢2 838
1
#37
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#037
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
