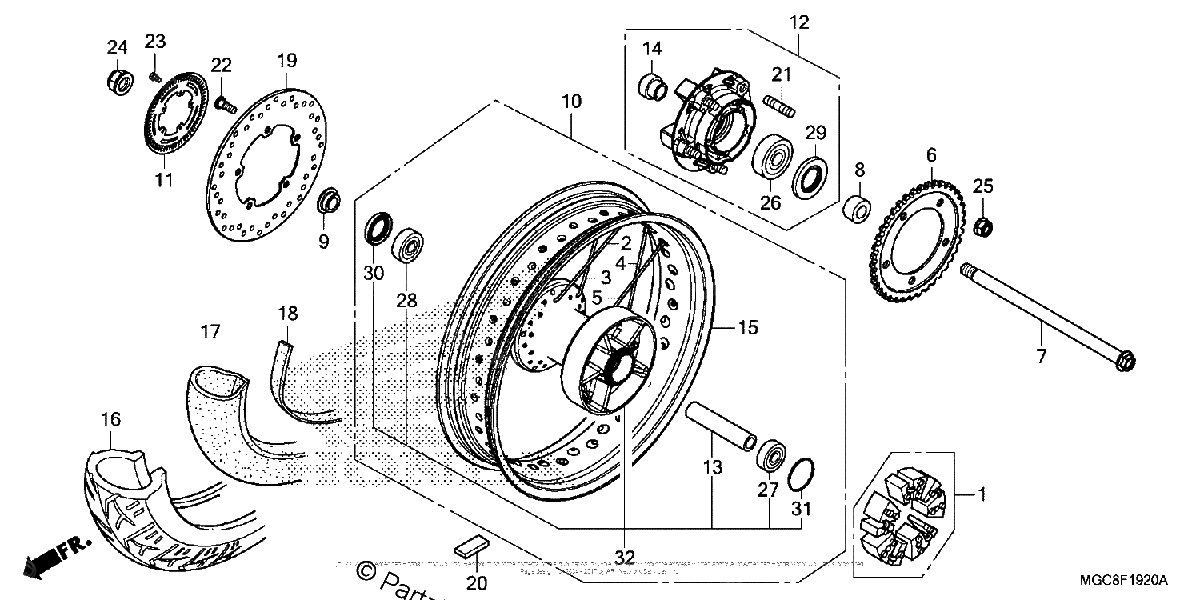

REAR WHEEL 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$92.23¢46 115
#2
SPOKE SET, R. RR. (INNER)
$7.69¢3 847
#3
SPOKE SET, R. RR. (OUTER)
$7.69¢3 847
#4
SPOKE SET, L. RR. (INNER)
$7.69¢3 847
#5
SPOKE SET, L. RR. (OUTER)
$7.69¢3 847
#6
SPROCKET, FINAL DRIVEN (40T)
$128.21¢64 107
#7
AXLE, RR. WHEEL
$54.23¢27 117
#8
COLLAR, RR. WHEEL SIDE
$27.13¢13 564
#9
COLLAR, RR. BRAKE SIDE
$27.13¢13 564
#10
WHEEL SUB-ASSY., RR.
$1291.36¢645 679
#11
RING, RR. PULSER
$97.19¢48 593
#12
FLANGE SUB-ASSY., RR. DRIVEN
$270.10¢135 050
#13
COLLAR, RR. AXLE DISTANCE
$23.56¢11 782
#14
COLLAR, RR. WHEEL DISTANCE
$35.63¢17 813
#15
RIM, RR. WHEEL (18X4.00)
$485.36¢242 679
#16
TIRE, RR. (140/70R18 M/C 67V) (DUNLOP)
$269.64¢134 820
#17
TUBE, TIRE (DUNLOP)
$40.02¢20 010
#18
FLAP, TIRE (DUNLOP)
$5.73¢2 864
#19
DISK, RR. BRAKE
$736.39¢368 196
#20
WEIGHT, BALANCE (10G)
$5.22¢2 610
#20
WEIGHT, BALANCE (15G)
$6.22¢3 111
#20
WEIGHT, BALANCE (20G)
$6.22¢3 111
#21
BOLT, STUD (12X25)
$4.47¢2 237
#22
BOLT, DISK (8X20)
$4.38¢2 191
#23
BOLT, TORX (5X10)
$3.36¢1 679
#24
NUT, U FLANGE (18MM)
$10.58¢5 290
#25
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
#26
BEARING, RADIAL BALL (63/28)
$32.84¢16 422
#27
BEARING, RADIAL BALL (6204UU)
$13.90¢6 952
#28
BEARING, RADIAL BALL (6304UU)
$34.34¢17 170
#29
DUST SEAL (37X68X7)
$19.37¢9 683
#30
DUST SEAL (35X52X7.5)
$13.24¢6 618
#31
O-RING (51X2)
$4.21¢2 105
#32
HUB SUB-ASSY., RR.
$588.45¢294 227
