OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

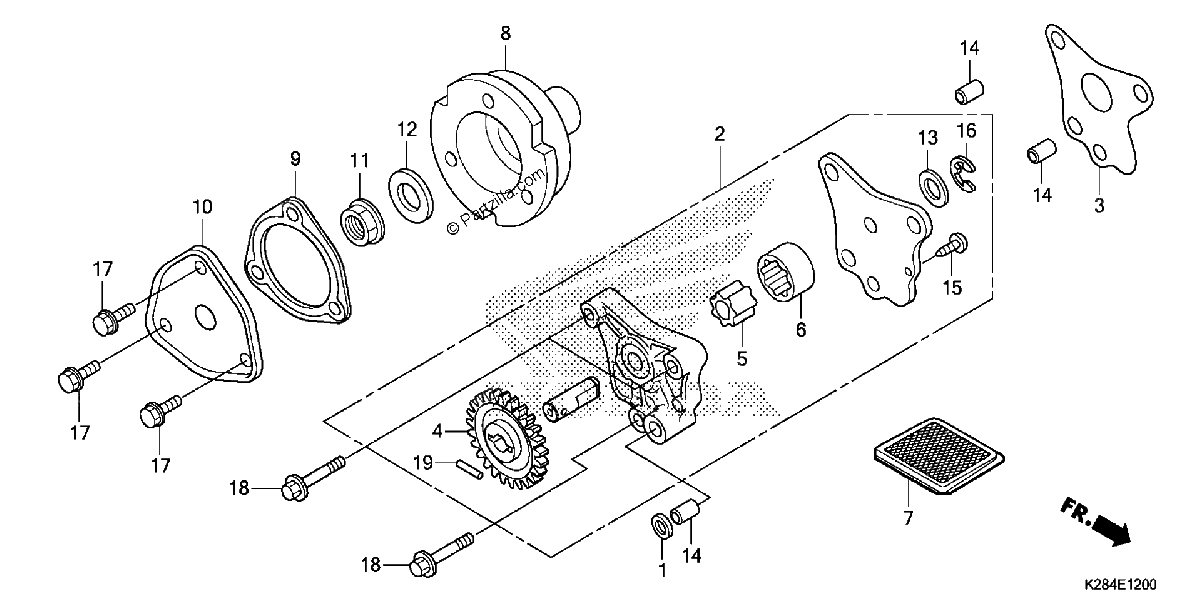

Diagrama de OIL PUMP

Repuestos

#1
12396-KRM-840
GASKET B, HEAD COVER
$0.58¢288
1
#2
15100-KYY-900
PUMP ASSY., OIL
$112.52¢56 262
1
#3
15119-KWS-901
GASKET, OIL PUMP
$6.44¢3 219
1
#4
15133-KYY-900
GEAR, OIL PUMP DRIVEN (23T)
$41.09¢20 544
1
#5
15331-KYY-900
ROTOR, OIL PUMP (INNER)
$16.38¢8 188
1
#6
15332-KYY-900
ROTOR, OIL PUMP (OUTER)
$19.52¢9 763
1
#7
15421-KSP-910
SCREEN, OIL FILTER
$4.25¢2 125
1
#8
15431-KWS-900
ROTOR, OIL FILTER
$48.69¢24 344
1
#9
15439-K26-901
GASKET, OIL FILTER COVER
$3.65¢1 825
1
#9
15439-KWS-901
GASKET, OIL FILTER COVER
$3.65¢1 825
1
#10
15441-KWS-900
COVER, OIL FILTER
$37.92¢18 963
1
#11
90202-KRM-840
NUT, SPECIAL FLANGE (14MM)
$1.05¢525
1
#12
90432-KPT-A00
WASHER (14.2X26X3)
$2.31¢1 156
1
#13
90455-KWS-900
WASHER (9.2MM)
$3.59¢1 794
1
#14
90702-KRM-840
PIN, DOWEL (8X14)
$0.86¢431
1
#15
93901-34120
SCREW, TAPPING (4X8)
$1.16¢581
1
#16
94540-06018
E-RING (6MM)
$3.65¢1 825
1
#17
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#18
96001-06035-00
BOLT, FLANGE (6X35)
$1.80¢900
1
#19
96220-30158
ROLLER (3X15.8)
$0.29¢144
1
