GEARSHIFT DRUM 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

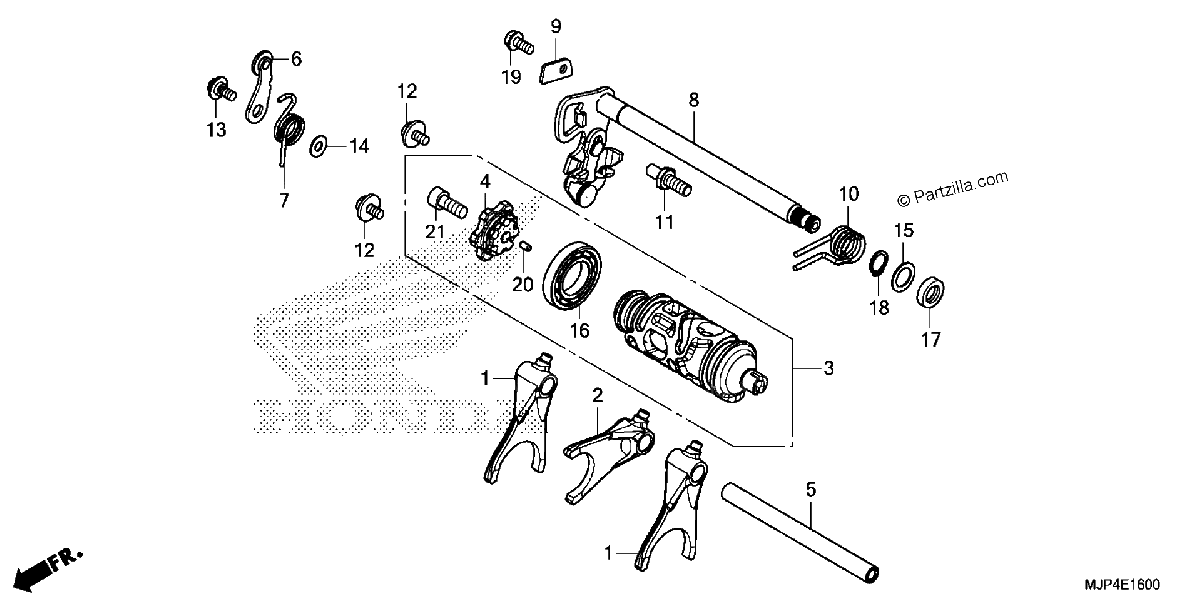

Diagrama de GEARSHIFT DRUM 1

Repuestos

#1
24211-MJP-G50
FORK, GEARSHIFT
$76.90¢38 450
1
#2
24212-MJP-G50
FORK, CENTER GEARSHIFT
$85.76¢42 881
1
#3
24310-MJP-G50
DRUM, GEARSHIFT
$182.05¢91 025
1
#4
24315-MJP-G50
CENTER, SHIFT DRUM
$46.48¢23 238
1
#5
24325-HL4-000
SHAFT, GEARSHIFT FORK
$24.40¢12 200
1
#6
24430-MJP-G50
STOPPER, GEARSHIFT DRUM
$19.55¢9 775
1
#7
24435-MJP-G50
SPRING, GEARSHIFT DRUM STOPPER
$4.86¢2 431
1
#8
24610-MJP-G50
SPINDLE, GEARSHIFT
$131.31¢65 656
1
#9
24613-MJP-G50
PLATE, SPINDLE SETTING
$3.66¢1 831
1
#10
24651-KR3-000
SPRING, GEARSHIFT RETURN
$6.99¢3 494
1
#11
24652-HA0-000
PIN, GEARSHIFT RETURN SPRING
$9.95¢4 975
1
#12
90021-MM5-000
BOLT-WASHER (6X12)
$6.20¢3 100
1
#13
90023-MR5-670
BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT
$2.99¢1 494
1
#14
90417-360-000
WASHER, DRUM STOPPER
$2.24¢1 119
1
#15
90451-155-000
WASHER (14MM)
$4.59¢2 294
1
#16
91007-MGS-D21
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#16
91007-MGS-D31
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#17
91203-KK3-830
OIL SEAL (14X22X5)
$4.63¢2 313
1
#18
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#19
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#20
96220-40080
ROLLER (4X8)
$0.65¢325
1
#21
96600-08020-10
BOLT, SOCKET (8X20)
$2.75¢1 375
1
