TAILLIGHT LICENSE LIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

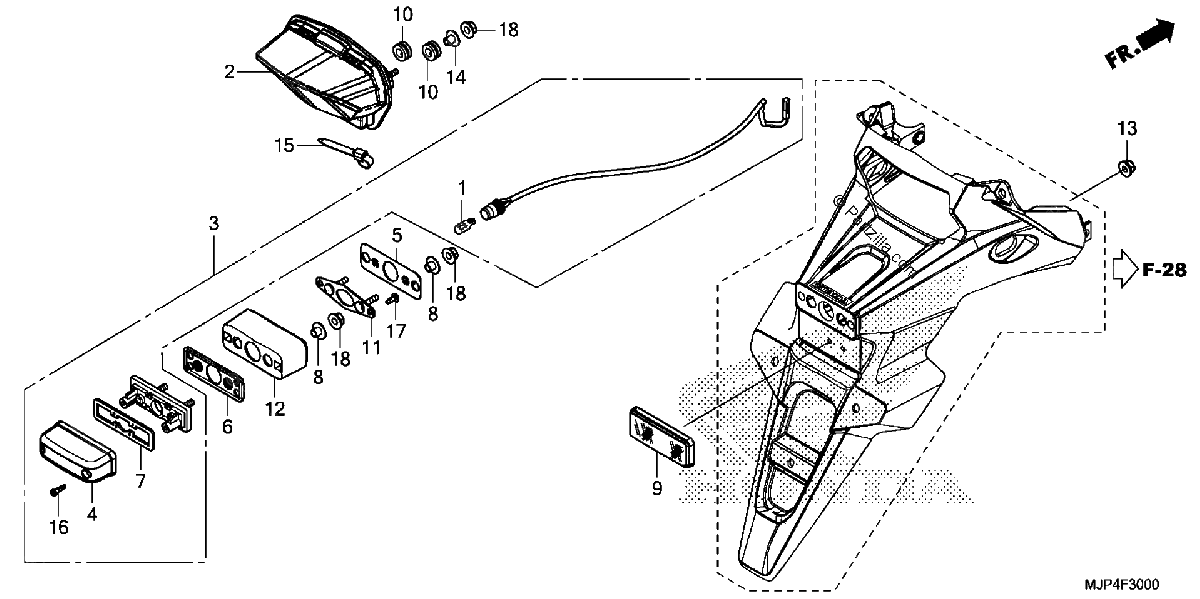

Diagrama de TAILLIGHT LICENSE LIGHT

Repuestos

#1
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#2
33701-MJP-305
TAILLIGHT UNIT (COO)
$375.88¢187 938
1
#3
33720-MJP-305
LIGHT Assembly., LICENSE (12V 5W) (COO)
$111.13¢55 563
1
#4
33721-GET-671
COVER, LICENSE
$24.61¢12 306
1
#5
33728-KPP-T00
RUBBER, LICENSE LIGHT
$5.51¢2 756
1
#6
33728-MJP-G50
RUBBER, LICENSE LIGHT
$5.39¢2 694
1
#7
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#8
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$3.08¢1 538
1
#9
33741-MS6-921
REFLECTOR, REFLEX (STANLEY)
$17.73¢8 863
1
#10
80101-310-000
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
1
#11
80118-MGE-670
STAY, LICENSE LIGHT BRACKET
$9.96¢4 981
1
#12
80201-MGE-670
BRACKET, LICENSE LIGHT
$10.55¢5 275
1
#13
90301-MG8-000
NUT, FLANGE (5MM) (FUSE RASHI)
$6.00¢3 000
1
#14
90501-MJ6-000
COLLAR, HEADLIGHT BRACKET
$5.42¢2 713
1
#15
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#16
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#17
93903-24380
SCREW, TAPPING (4X12)
$1.16¢581
1
#18
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
